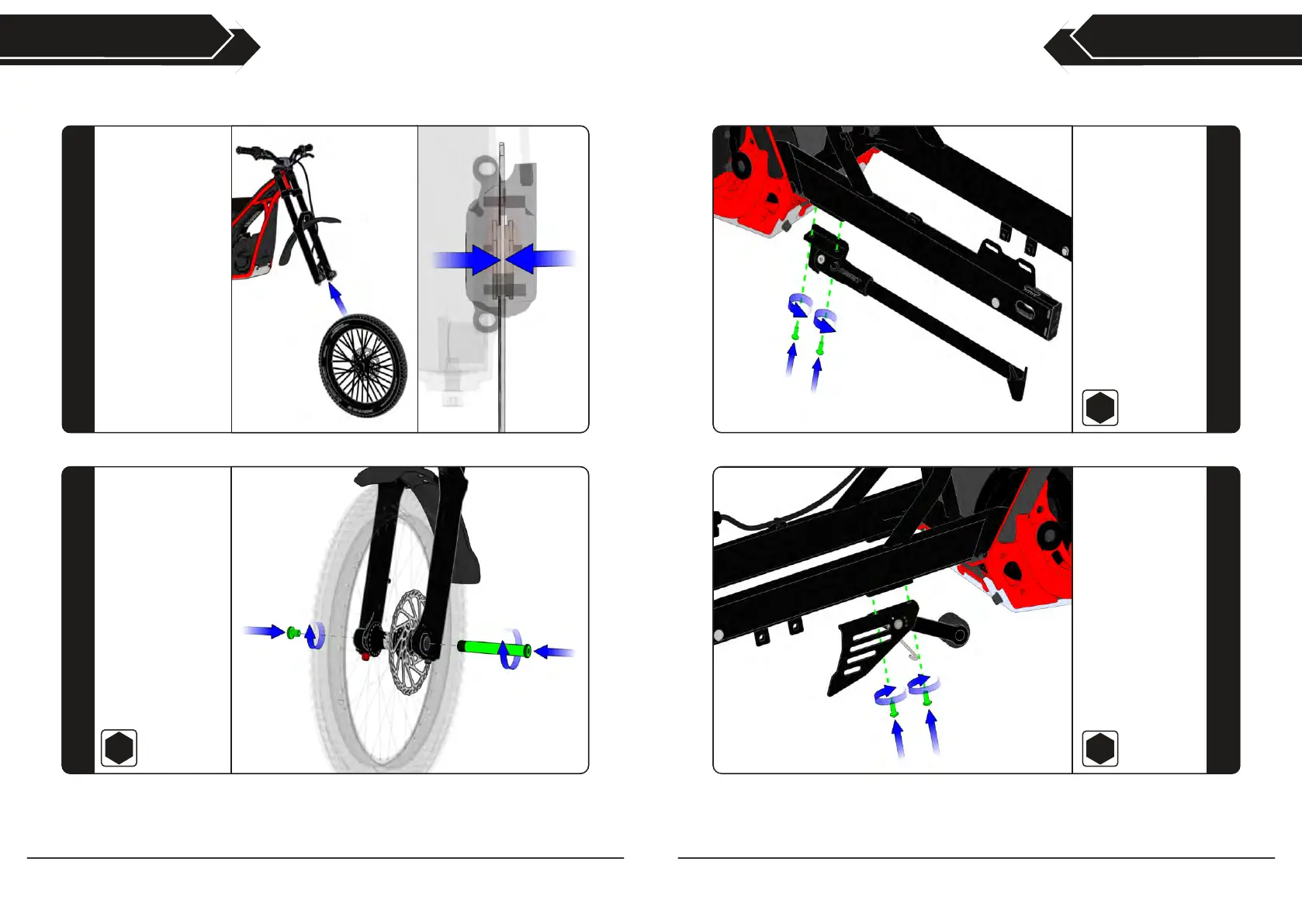

oset TXP 24 - Stand & Chain Tensioner

ASSEMBLY
STAND & TENSIONER
ASSEMBLY
FRONT WHEEL
22 23
Locate the wheel
between the fork
legs being careful to
align the brake disc
between the pads as
the wheel is
installed.
Take care to not pull
the brake levers until
the wheel is
installed.
13
Replace the front
axle and locking nut,
and tighten.
14
8
12-15 N.m
To install the
chain tensioner -
locate and mount
the tensioner to the
underside of the
swingarm.
Fix in place with x2
M5x12mm button
head bolts supplied.
16
6.3
3
4 N.m
To install the side
stand - locate and
mount the side
stand base to the
underside of the
swingarm.
Fix in place with x2
M5x12mm button
head bolts supplied.
15
6.3
3
4 N.m
