oset TXP 24 - Rear Mudguard

34 35
EXPLORE ASSEMBLY
SEAT UNIT
EXPLORE ASSEMBLY
REAR MUDGUARD

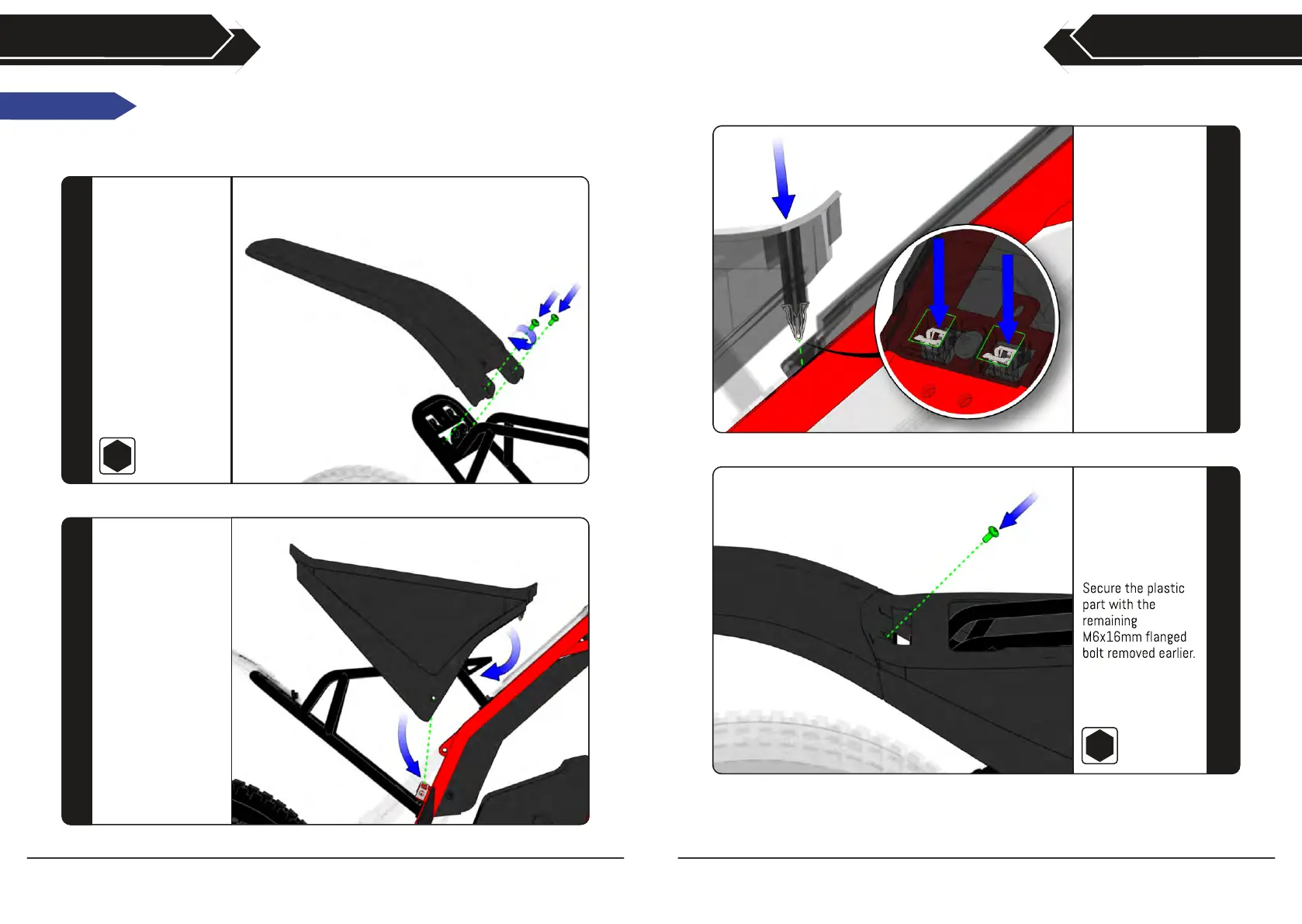

To install the rear
mudguard - install
x2 M6x16mm
flanged bolts
removed earlier, in
the left and right
holes.
Leave the central
bolt unfitted.
37
4
4 N.m
Fit the seat trim to
the subframe.
38
Push down on the
front of the part
until the clips are
located into the
subframe.
39
40
4
4 N.m
To set the bike up in ‘Trials’ configuration please skip to step 46, if you want to continue
with the ‘Explore’ configuration, please continue from step 37.
