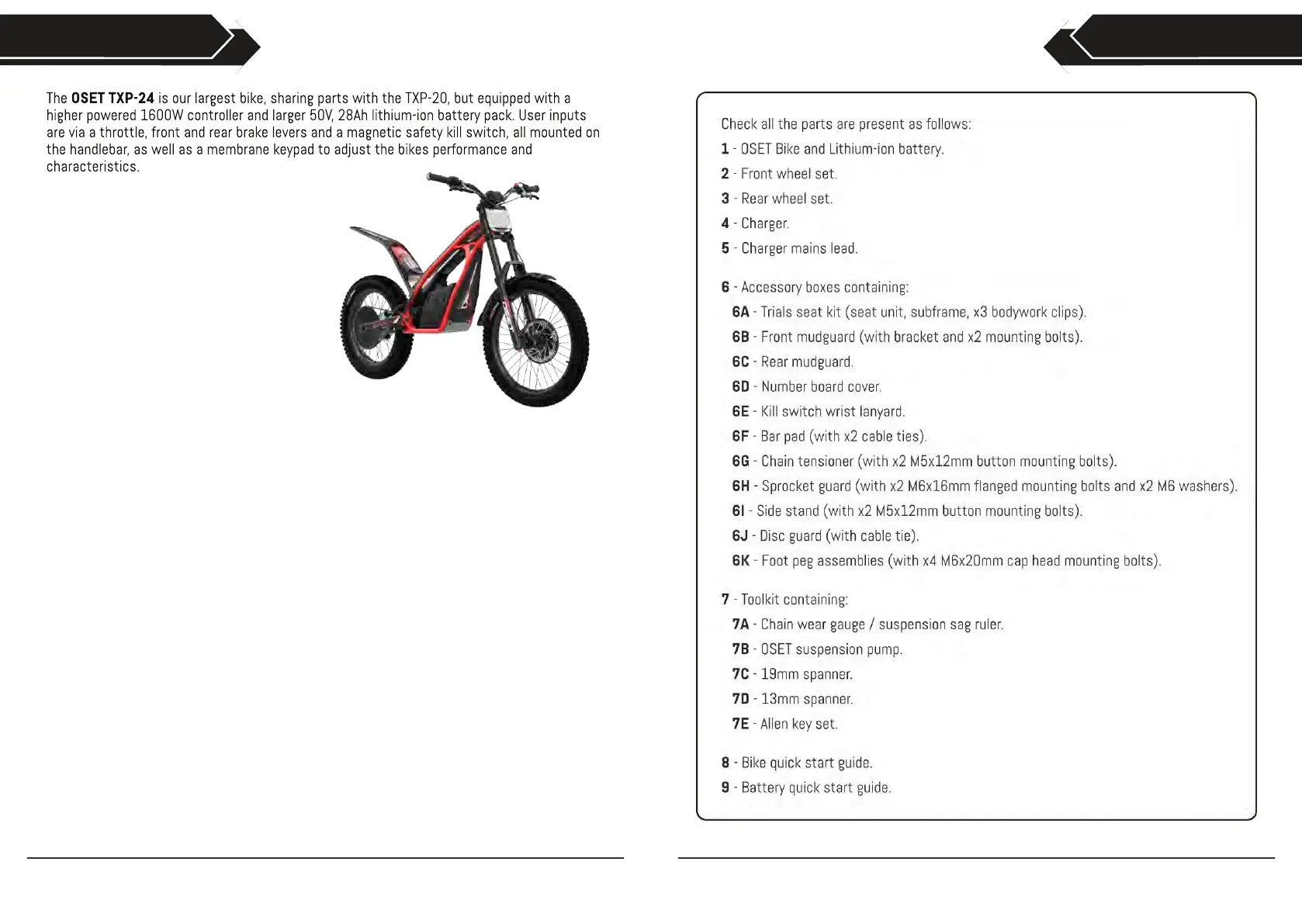

CARTON CONTENTSSPECIFICATION
12 13
Maximum Speed: 24mph
Weight Limit (Rider): 90.2kg
Wheelbase: 1220±10mm
Ground Clearance: 305±10mm
Handlebar Height: 1080±10mm
Foot Peg Height: 355±10mm
Weight: Trials: 47.9Kg
Explore: 49.4Kg
Seat Height: Trials: 635±10mm
Explore: 810±10mm
Gearing: 11T front sprocket, 102T rear. #219 chain.
Motor: 1600W 50v OSET BLDC with position encoder.
Frame Steel tubular construction frame with self-extracting aluminium
swingarm axles and replaceable aluminium bash guard.
Swingarm: Steel construction with integrated chain tensioners and chain guide.
Suspension (Front): 160mm air sprung, with rebound, compression & volume adjustment.
Suspension (Rear): 160mm air sprung, with rebound & volume adjustment.
Rims: Front: BC 24x1.60’’, 36h. Rear: MC 17x1.85’’, 36h.
Hubs: Front: 110x20mm Boost Alu, 36h, Rear: 152x12mm Alu, 36h.
Tyres: OSET Max Gripper; Front: 24x2.75’’. Rear: 17x3.50’’.
Brakes: Four piston hydraulic disc, 200/180mm rotors and front rotor guard.
Foot Pegs: OSET factory steel pegs with replaceable hangers.
Handlebars: 780mm width, 38mm rise, 31.8mm diameter, 7075 alloy.
Controller: 50v, 1600W brushless controller with IP66 rated connectors,
thermal protection, inline relay and fuse.
Battery: Sealed, 50v 28Ah lithium battery with LED status indicator,
charging, discharging & diagnostic ports.
Adjustment & Control: Dual sensing twist throttle.
Integrated keypad, with speed, power and throttle response
adjustment, battery state of charge indicator, PIN lock system,
diagnostic fault code and thermal protection displays.
Magnetic kill switch with wrist lanyard.
