oset TXP 24 - Rear Wheel

ASSEMBLY
REAR WHEEL
ASSEMBLY
TENSIONER & GUARD
24 25

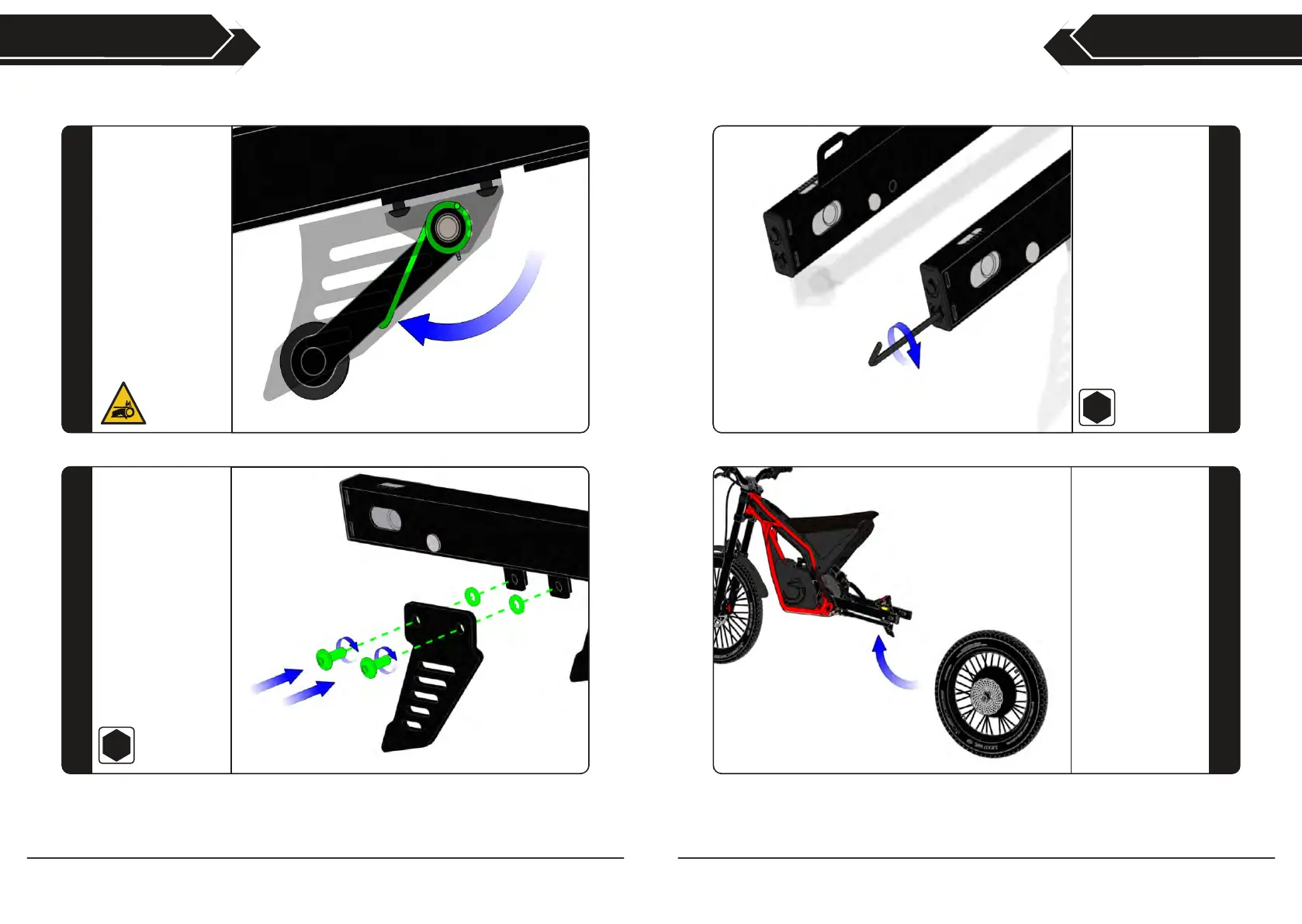

Hook the end of the
spring over the
tensioner arm.
17
To install the
sprocket guard -
locate and mount x2
M6 washers and the
guard to the tabs on
the underside of the
swingarm.
Fix in place using x2
M6x16mm flanged
head bolts supplied.
18
4
4 N.m
Lift the rear wheel
into place, locating
the hub spacers on
the tabs inside the
swing arm.
20
To install the rear
wheel - wind both
dropout sliders as
far forward as
possible, by turning
the adjuster bolt
clockwise.
19
4
