oset TXP 24 - Page 14

ASSEMBLY
REAR WHEEL
ASSEMBLY
REAR WHEEL
26 27

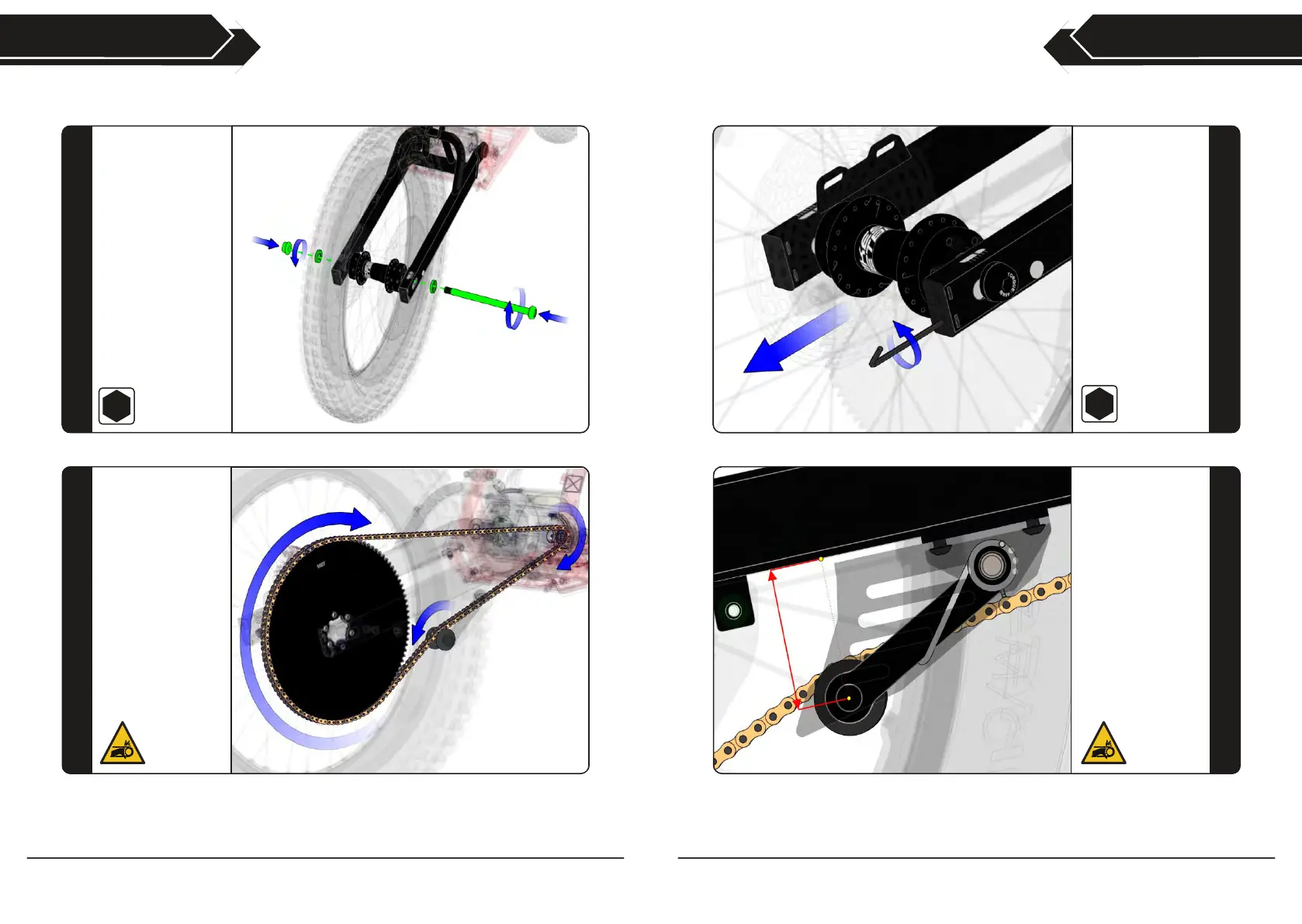

Locate the rear axle
through the swing
arm, into the nut and
thread in a few turns.
Do not fully
tighten.
21
6
With the rear wheel
free to move hook
the chain over the
rear sprocket and
tensioner roller.
22
Using the enclosed
OSET ruler, adjust
the dropout sliders
until the centre of
the tensioner roller
sits 58-62mm away
from the underside
of the swingarm.
24
3.1
To adjust the
chain tension -
rotate the bolt in the
dropout slider via
the access hole in
the swing arm cap.
Adjusting the bolt
anti-clockwise will
drive the dropout
sliders backwards
and add chain
tension.
23
3.1
4
