oset TXP 24 - Page 15

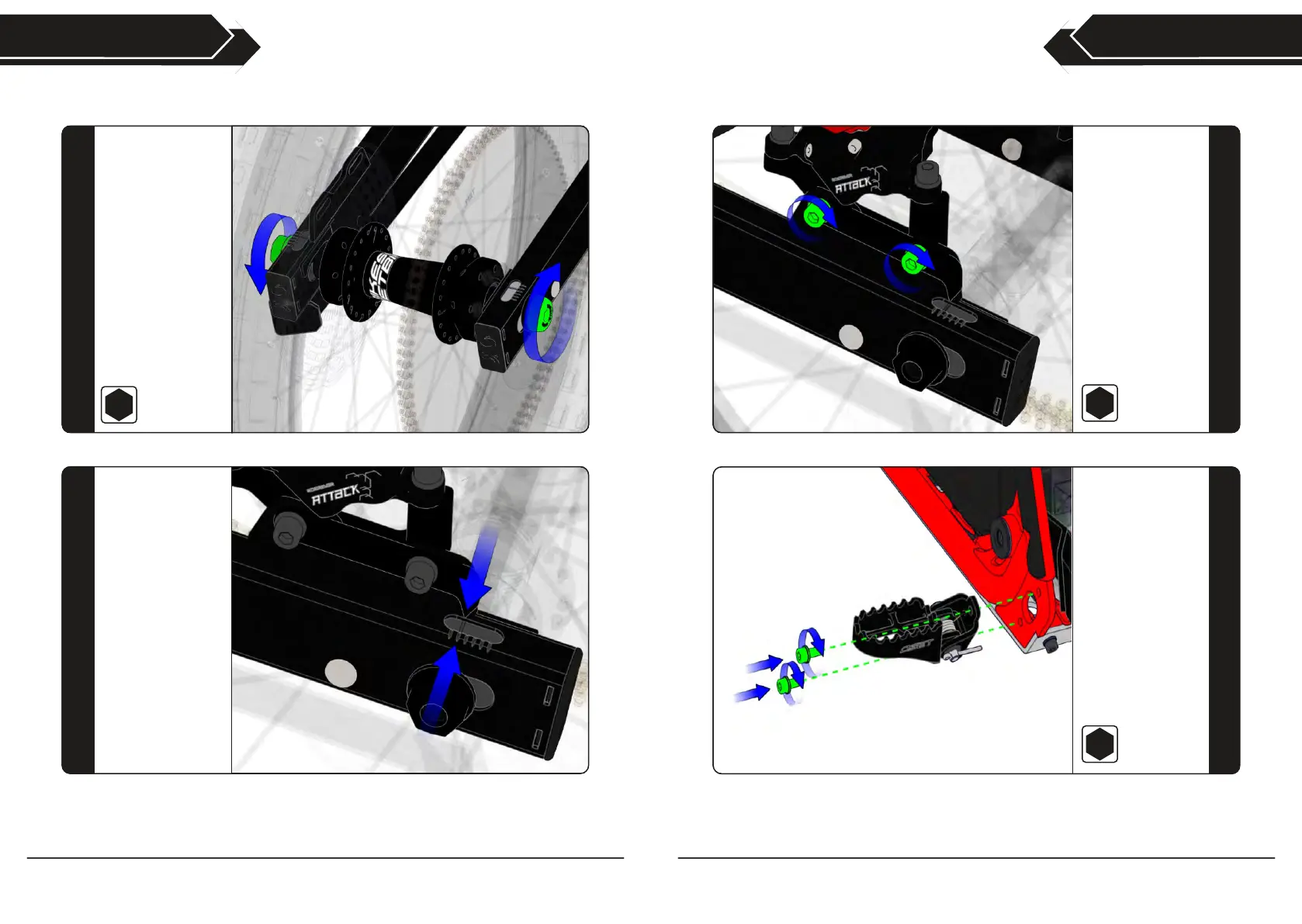

ASSEMBLY
FOOT PEGS
ASSEMBLY
REAR WHEEL
28 29
Ensure the wheel
runs straight in the
swingarm once the
chain tension is
adjusted.
Once the chain is
adjusted the rear
axle can be
tightened.
25
8
40 N.m
Align the arrow of
the rear brake
caliper mount with
the indicator line
through the slot on
the swingarm.
26
Tighten the x2
M6x16mm rear
brake caliper bolts.
27
3.1
6
6-8 N.m
To install the
footpegs - locate
the hanger, install
with x2 of the
enclosed M6 cap
head bolts as
shown.
Repeat for the
opposite side. Note
the footpegs are not
symmetrical, ensure
you fit the correct
side.
28
3.1
5
10 N.m
