oset TXP 24 - Page 19

36 37
EXPLORE ASSEMBLY
REAR SPLASHGUARD
EXPLORE ASSEMBLY
SEAT UNIT

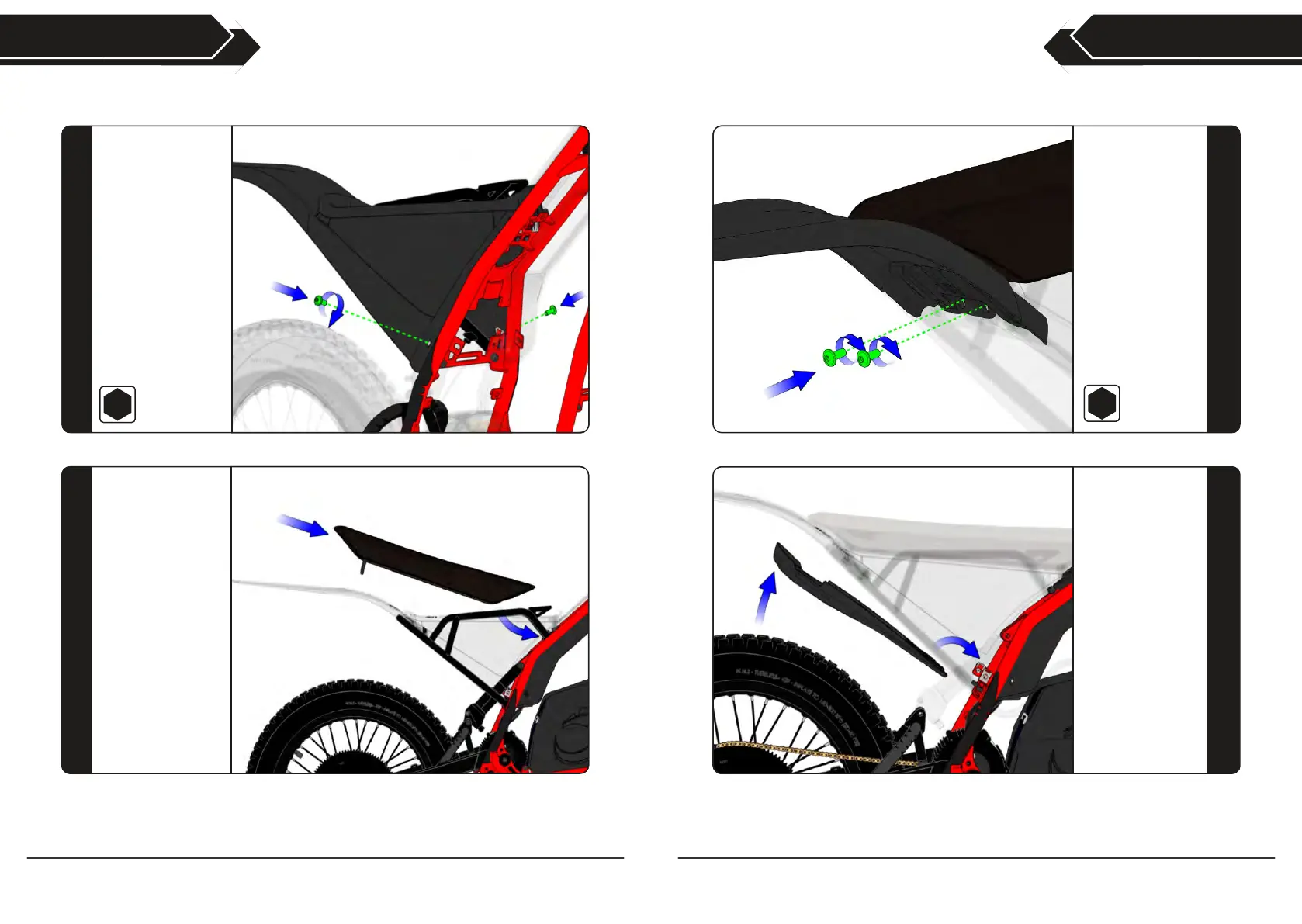

To install the seat
unit - install x2
M6x16mm flanged
bolts removed earlier,
either side of the
seat trim.
41
4
4 N.m
Re-fit the padded
seat, rest the front
of the seat on the
rails, push forwards
to engage the hook.
42
Apply light pressure
to the top of the
seat then replace
the x2 M6x16mm
flanged bolts
removed earlier.
43
4
4 N.m
To install the rear
splashguard -
Locate the guard
over the mounting
tabs on the
subframe.
44
