TRIALS ASSEMBLY
SWAPPING SUBFRAMES
EXPLORE ASSEMBLY

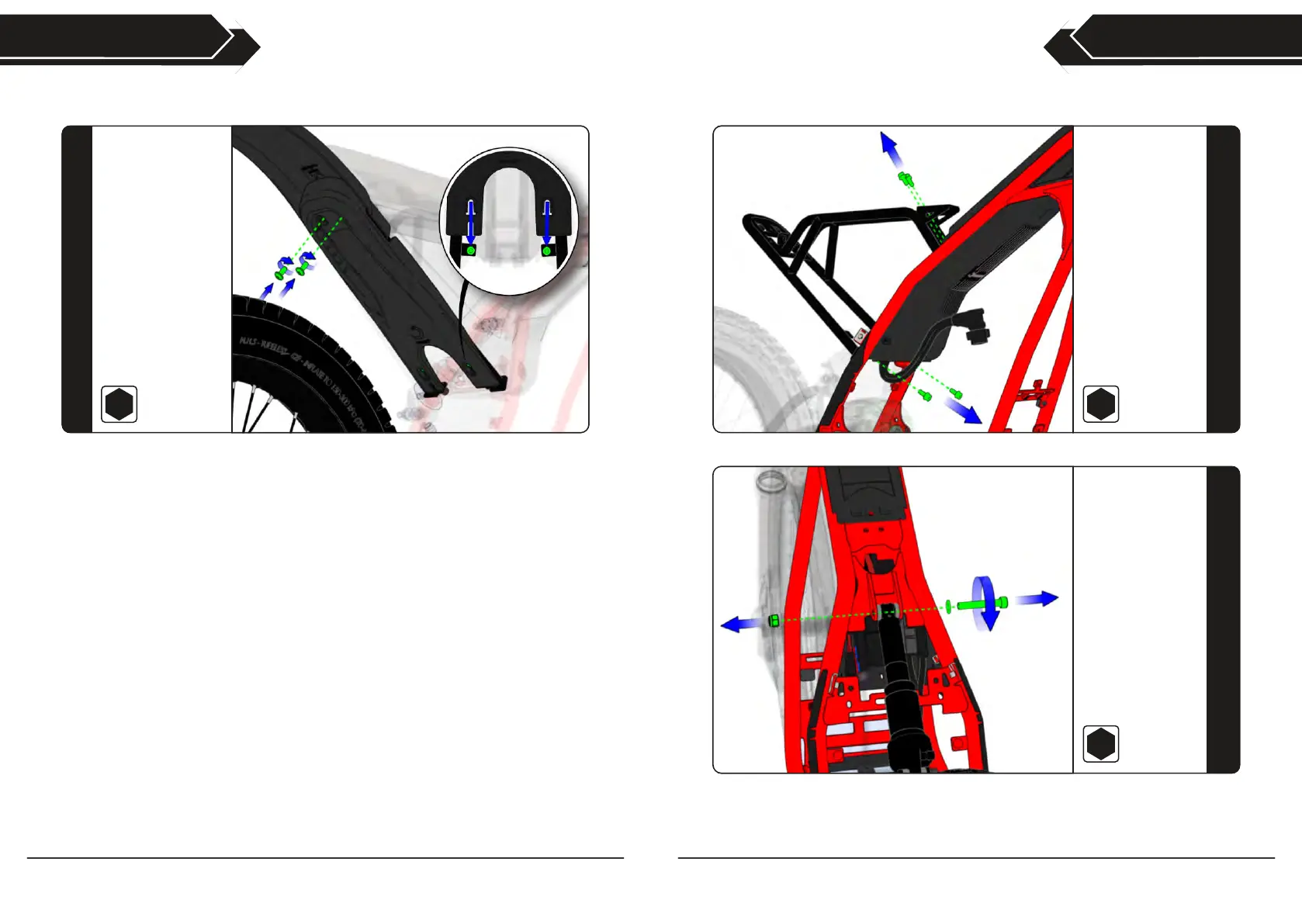

REAR SPLASHGUARD
Push the guard down
onto the tabs, then
install x2 M6x16mm
flanged bolts
removed earlier.
45
4
4 N.m
To release the
explore subframe
- remove the x2
lower and x2 upper
M6x20mm cap head
bolts.
46
5
Deflate the shock.
Remove the M8 cap
head bolt that
secures the top of
the rear shock.
47
