oset TXP 24 - Page 22

42 43
TRIALS ASSEMBLY
REAR SPLASHGUARD
TRIALS ASSEMBLY
SEAT UNIT

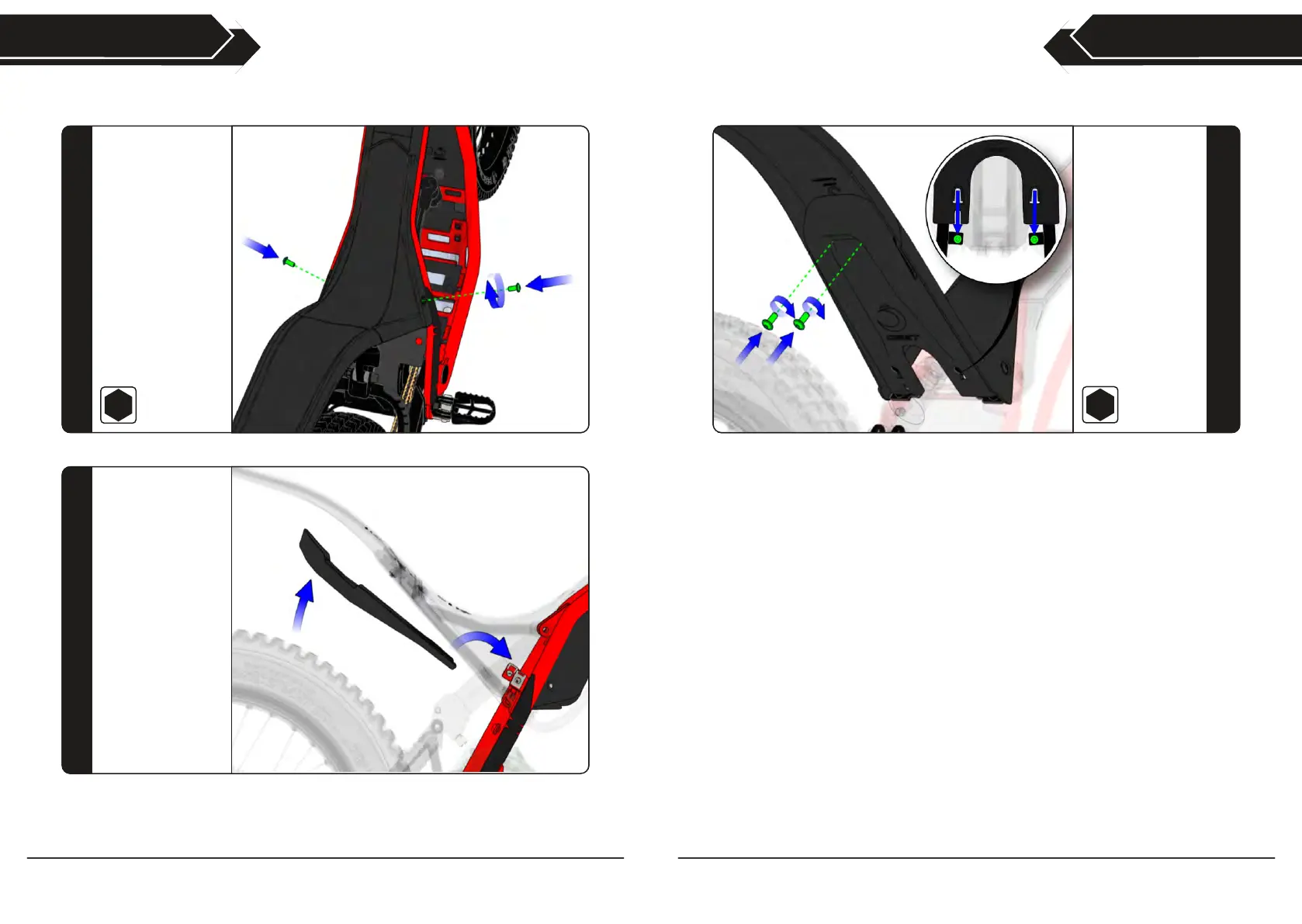

Secure the part with
the x2 M6x16mm
flanged bolts
removed earlier, one
either side.
52
4
4 N.m
To install the rear
splashguard -
Locate the guard
over the mounting
tabs on the
subframe.
53
Push the guard
down onto the tabs,
then install the x2
M6x16mm flanged
bolts removed
earlier.
54
4
4 N.m
