8. Repeat steps 4–6 for a clockwise reading on the supply side. The readings
should fall within the range listed in the table below.
MX-5050BIII
A: 100–125 g (3.6–4.5 ounces)
B: 225–275 g (7.9–9.7 ounces)
MX-5050MKIV-2
A: 145–175 g (5.1–6.2 ounces)
B: 315–385 g (11.1–13.6 ounces)
9. If the readings are low in both directions, detach the brake spring from the
anchor hole on the brake lever and attach the spring to the next hole located

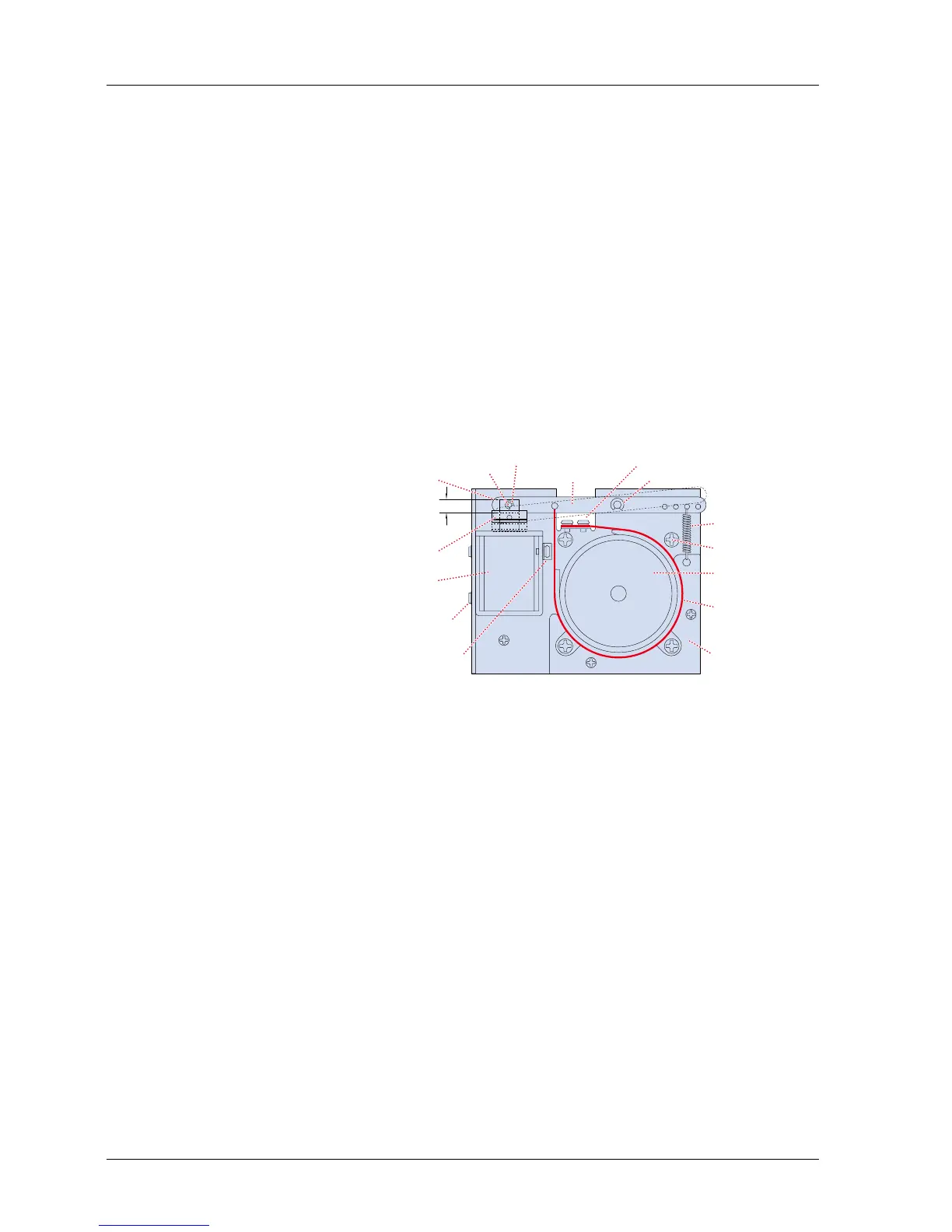

further away from the brake solenoid (refer to Figure 6-2).
10. If the readings are high in both directions, move the spring anchor point
closer to the brake solenoid.
11. After the spring anchor point is moved, re-check the brake torque.
12. Repeat the brake torque adjustment on the take-up reel.
NOTE: When measuring the brake torque of the take-up side, the torque of the
clockwise rotation is larger than the counterclockwise torque.
