6. Transport Adjustment and Parts Replacement
6.1 Transport Access
The PCB Assemblies and main transport parts are located inside the machine. Therefore,
to adjust these parts, certain panels must first be removed. Refer to §2.4 for instructions on
accessing these parts.
6.2 Brake Torque Adjustment
The brake adjustment is performed with the machine turned off.
The brake torque values are different for the supply side and take up side. Since the torque
values for both sides are adjusted at one time, the adjusted torque is the best compromise
for both sides.
Necessary Tools
• 10.5" NAB Reel
• String (2 m)
• Spring Scale (500 g)
1. Turn off the power to the machine.
2. Place an empty NAB reel (10") on the Supply Reel Table.
3. Wind a piece of string a few turns counterclockwise on the hub of the NAB
reel.
4. Attach the spring scale to the end of the string.

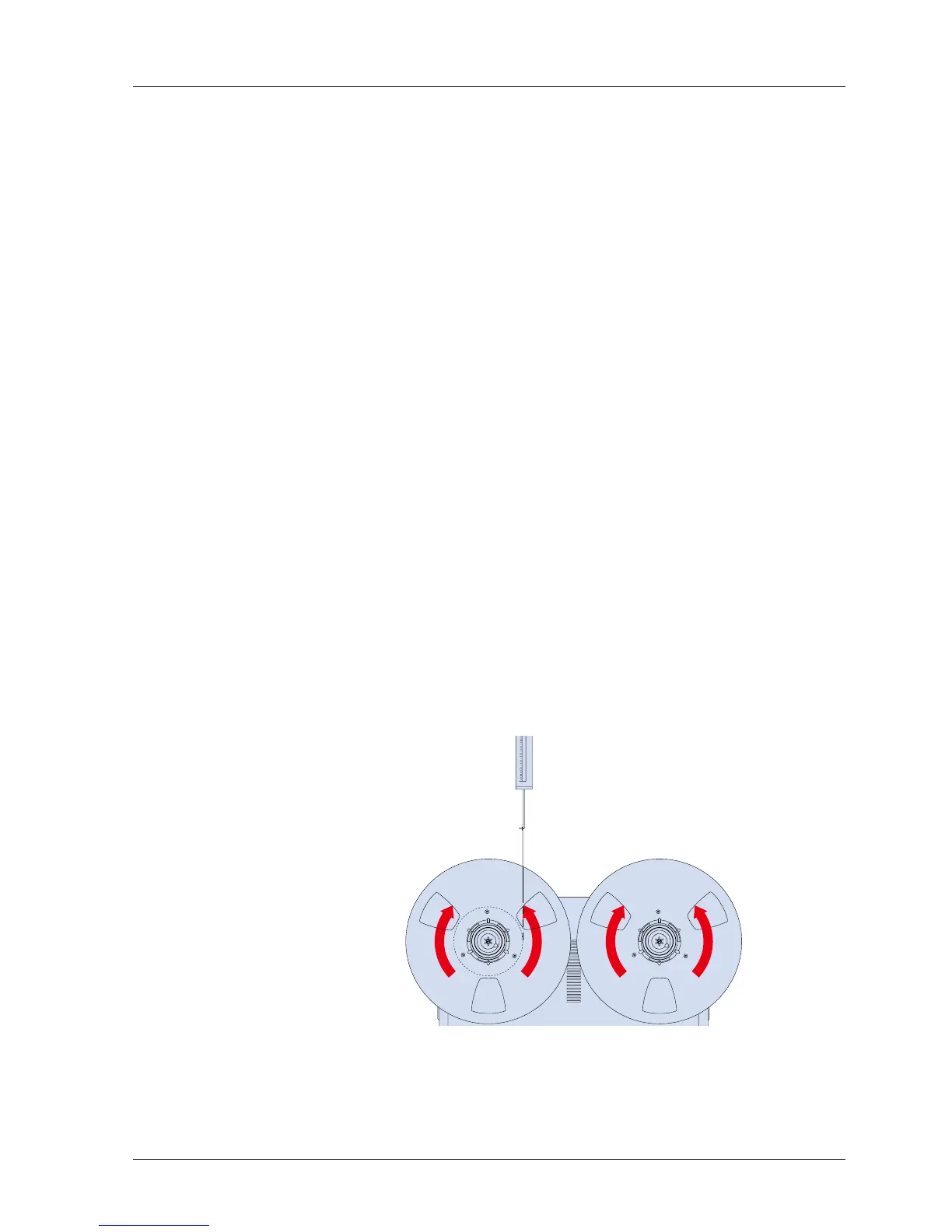

5. Hold the spring scale upright as shown in Figure 6-1.
6. Pull on the scale slowly to make the reel rotate counterclockwise (direction B
in Figure 6-1). While making sure that the cable does not rub against either
flange, note the scale reading.
7. Wind the string clockwise direction on the supply reel.
