OTICON AGIL FITTING GUIDE
29

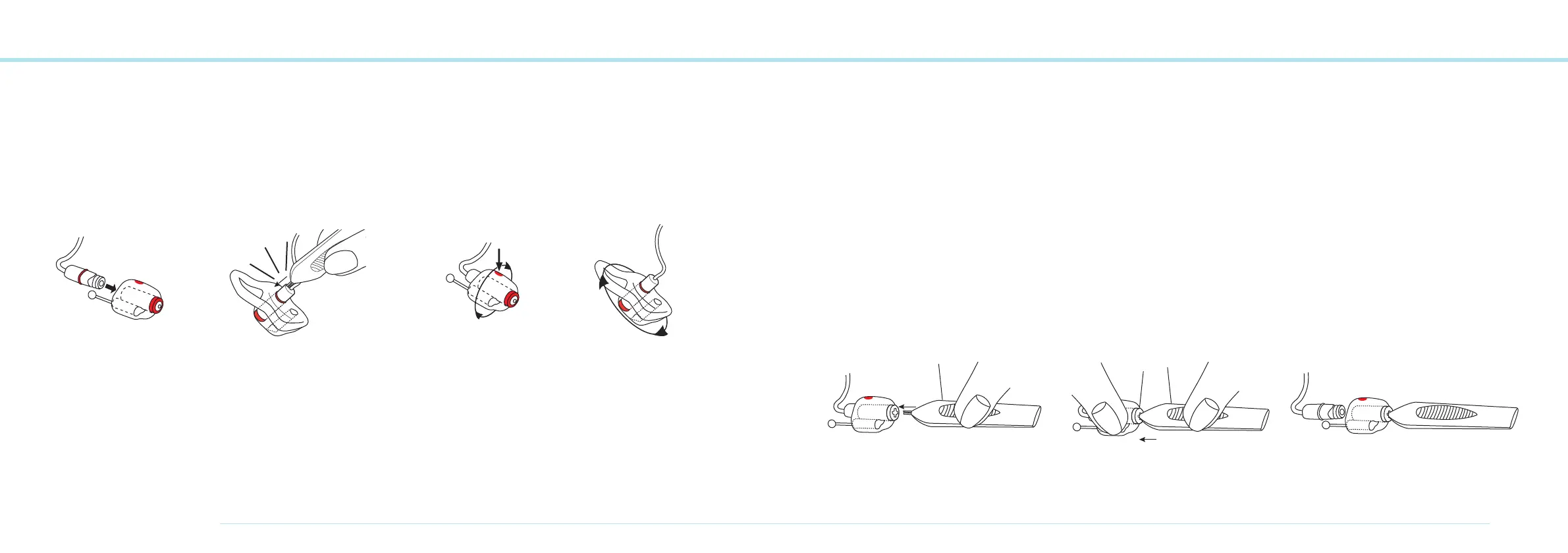

Micro Mould Receiver Insertion Canal Receiver Insertion
1 2 3a
Note: Make sure that the Receiver is not angled when inserted into the Mould. An odd angle will prevent the Receiver from
engaging the Adapter. The click sound indicates that the Receiver is placed correctly, and it should be done with only a little
force. Don’t force the two units together!
3b
Taking off the Micro Mould
The Mould can’t be detached from the Receiver
without the Micro Mould tool
When detaching the Micro Mould follow the instructions
to the right:
1. Remove the WaxStop.
2. Place the Micro Mould in the tool as illustrated making sure
that the cross in the Adapter is matching the tap of the tool.
3. Press the tool into the Mould to release the Receiver unit.
4. Now the Micro Mould can be removed from the Receiver unit.
5. Never remove the existing wax top from the Receiver.
It is part of the locking mechanism.
1 2 3
