50
OTICON AGIL FITTING GUIDE
51
Controls

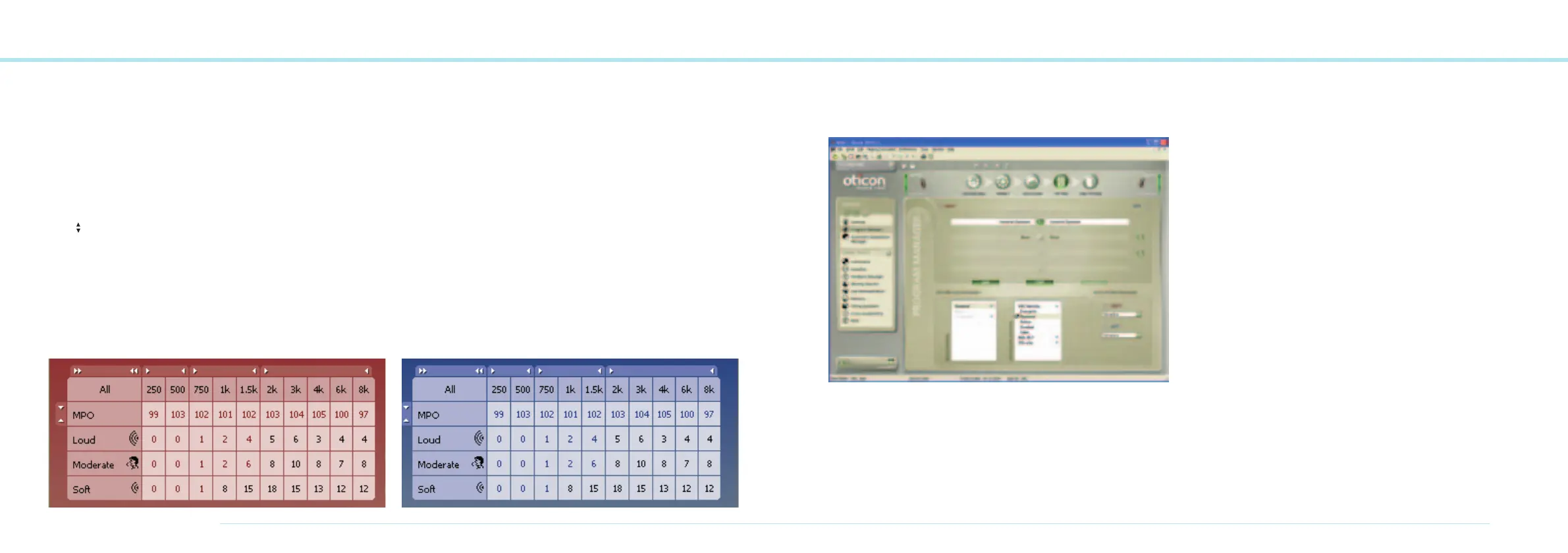

Adjusting the fitting controls
By clicking the <> each or all of the three regions (LF, MF and
HF) can be expanded to display all the underlying frequency
channels.
Click
to display the MPO controls for each region or channel.
Adjust the gain controls in 1 dB steps in the selected fields.
MPO is displayed in dBHL while gain is displayed in dB (IG).
RITE/Corda
2
only:
For RITE instruments and BTE 13 instruments with Corda
2
with
domes no low-frequency gain is provided in the initial setting
due to the dominating natural sound.
Therefore the LF region is disabled (greyed out) in the fitting.
If you want to make adjustments in the LF region, expand the
region and you will get access to the underlying frequency
channels.
Program Manager
In the Program Manager you can activate, configure, delete, and
change the order of the programs. For general programs you can
choose between the VAC, NAL NL1 and DSL v5.0 fitting ratio-
nales. Two phone programs exist, Microphone (M) or telecoil (T).
You choose whether you want to activate the phone program
on the left or right ear. By default a copy of P1 reduced will be
placed in the other instrument.
If you have an Auto Phone in the instrument, you can activate
the automatic functionality in the lower right corner. You do
not have to add a Phone program in P2 – P4. You can choose
whether the program should be a Microphone or a Telecoil pro-
gram (when Telecoil is available). This program is configured
either here or in the End Fitting Step.
If you are fitting ConnectLine to your Oticon Agil instruments,
adjustments to ConnectLine programs are done in the
End Fitting step.
RITE and BTE instruments are compatible with DAI and FM
shoes. When the shoe is attached to the instrument, you will
automatically have access to two extra programs:
• DAI/ FM + Microphone (default) and
• DAI/FM only.
The two programs are based on the settings in P1.
Any adjustments are handled in the End Fitting step.
