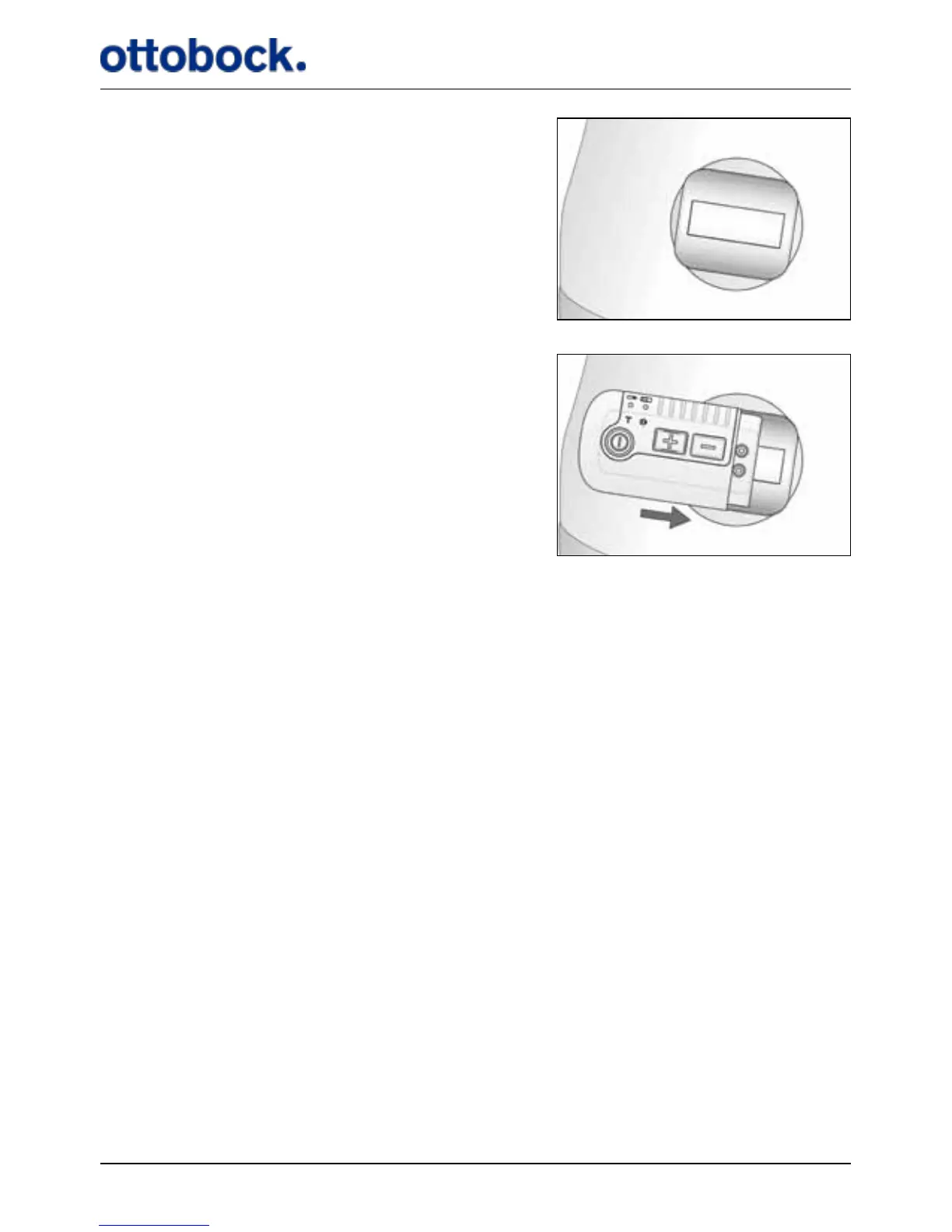

Insert the knob of the Body Clip into the
opening in the plastic part of the xture and
push the Body Clip downwards until you hear
a click.
Orient the Control Unit as shown and slide it
against the Body Clip to x the two together.
The Control Unit is held in place by magnets inside both the Control Unit and the
Body Clip.
7.3 Putting On the Antenna Fixture
In order for the Antenna Fixture to sit securely on the skin, the following guidelines
should be followed:
1. Wash and dry the skin thoroughly before positioning the Antenna Fixture.
2. Remove hair on the skin if the hair will prevent the Antenna Fixture from sitting
securely
3. The adhesive side of the Antenna Fixture should not be touched as this will redu-
ce its adhesiveness.
4. The use of moisturizer will reduce the adhesiveness of the Antenna Fixture.
Please note that the Antenna Fixture must not be placed on top of a wound.
The Antenna Fixture consists of 3 layers (Figure 7). On the backside, there is a
bearing liner which protects the adhesive qualities of the Antenna Fixture. In the
middle there is an adhesive patch with a round plastic disc onto which the Antenna
is secured. On the front, there is a sti applicator liner which makes it easier to place
the Antenna Fixture.
