98
Mounting posi-
tions
Posterior seat height
24" 26"
1 40 42
2 42.5 44.5
3 44.5 46.5
4 47 49
5 49 51
6 51 53

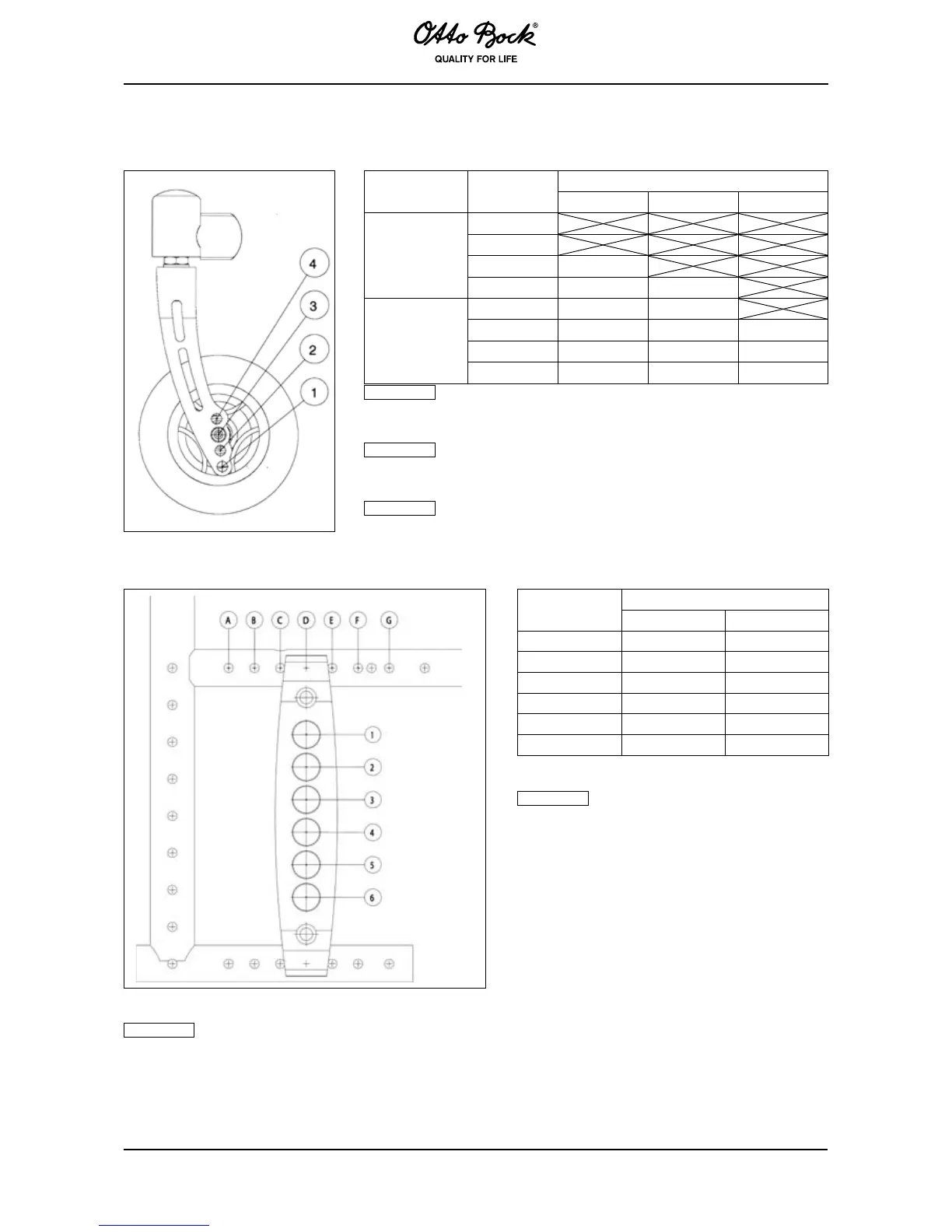

The posterior seat height is dependent
on the chosen wheel size and mounting position in
the rear wheel attachment device. Please refer to
the seat height table!
The axle can be adjusted horizontally between the front and rear axle position in 7 different positions
(A through G). Position A allows a passive centre of gravity, whilst in position G, the most active centre of gravity
is reached. Unless otherwise specied, the rear wheel position will have the standard setting of D/4.
1) Measured at 0° seat angle, without seat cushion.
Position
Caster diameter
140 mm 7" 8"
Short caster
fork
Position 4
Position 3
Position 2 45
Position 1 47 49
Long caster fork
Position 4 47 49
Position 3 48 50 51
Position 2 49.5 51.5 52.5
Position 1 50.5 52.5 53.5
The anterior seat height and posterior seat height are dependent
on the chosen wheel size and mounting position. Please refer to the seat
height table!
Seat inclination: 10 cm maximal seat height difference between
anterior seat height and posterior seat height (equaling a seat inclination
of about 15°).
Without indication of the desired seat inclination, it will be fac-
tory-set at approx. 4°.
