Service Instructions B500

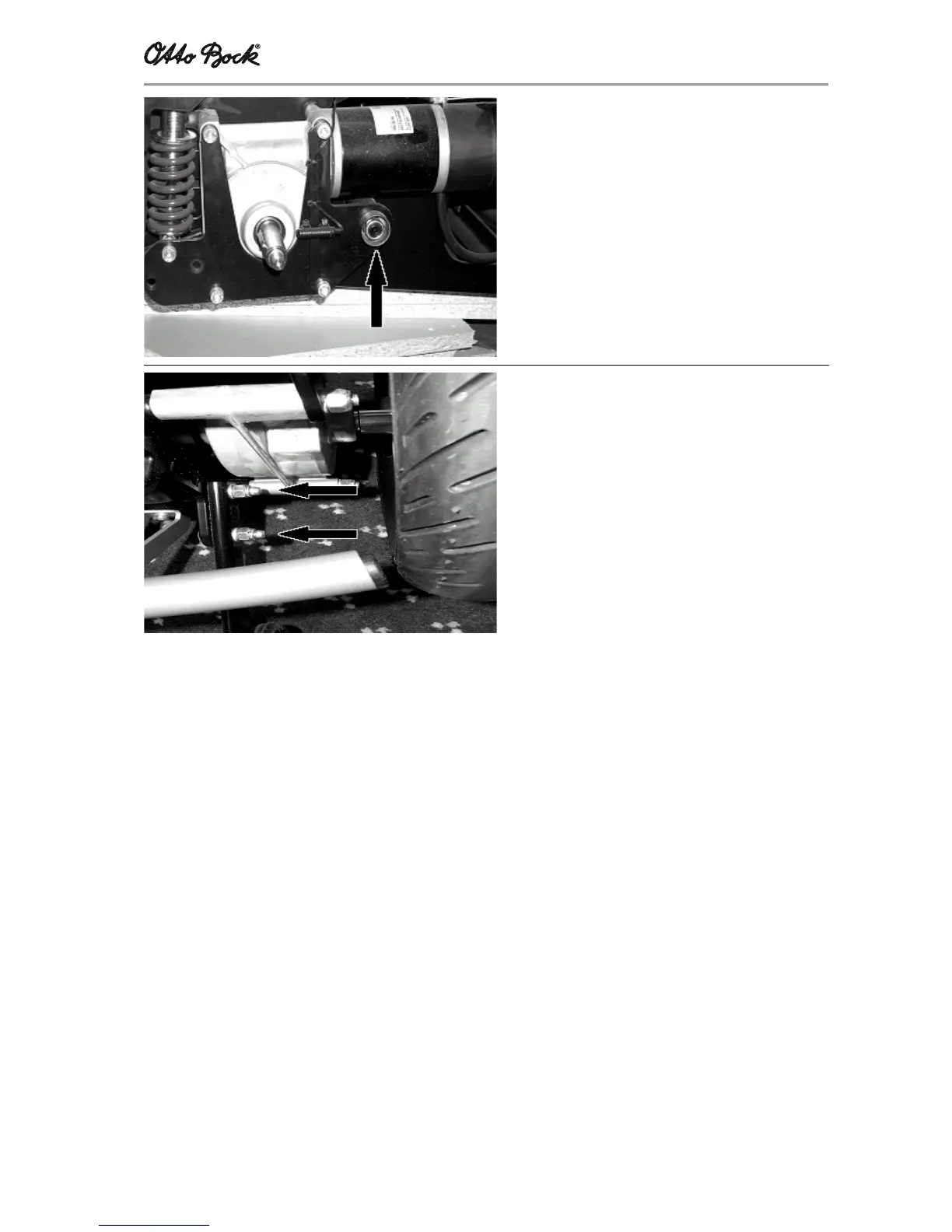

Removing or installing the rockers
The rear wheel rockers are fastened to the drive
bracket and rotate freely. The wheels, the rear-
wheel springs, and the motors need to be removed
before the rockers can be dismounted.
- Use a size 20 socket to unscrew and replace
the rockers
- Install the spring in one of the three rear
rocker boreholes
- Suspend the spring at the top in the last drive
bracket borehole
Installing or replacing the tilting protection
The B500 tilting protections can only be used in
pairs (one left, one right).
Use two carriage bolts to secure the tilting protec-
tions to the drive bracket (see arrow). Use an
open-end or ring spanner to either unscrew or
tighten the nuts.
