Otto Bock Discovery - Adjusting the Head Support (Option)

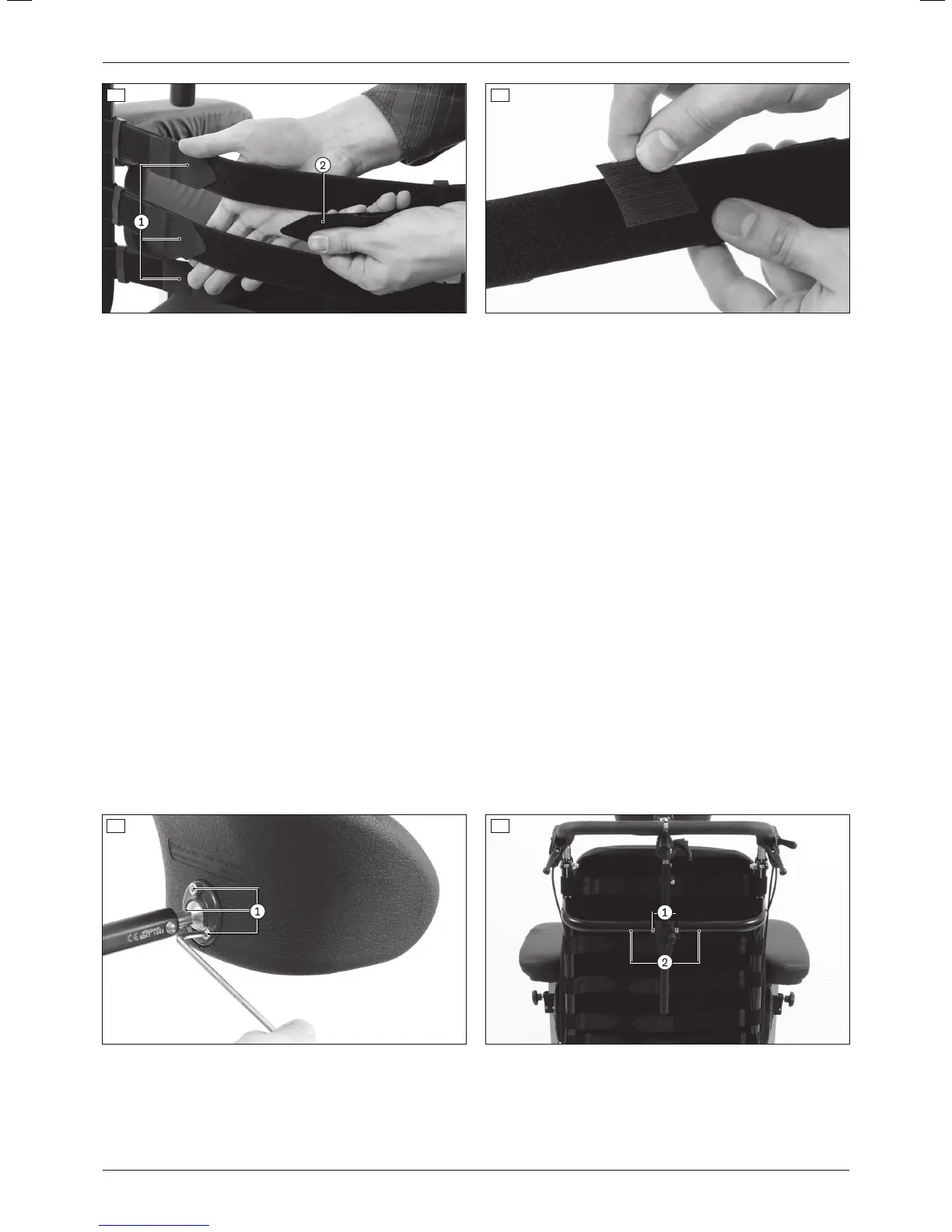

19 20
Removing the back straps
1) Carefully pull the back padding off the back straps.
2) If necessary: Pull the double sided hook-and-loop strips off the back straps (see fig.20).
3) Open the hook-and-loop fasteners on both ends of the back straps (see fig.19, item1).
4) Open and remove the Y hook-and-loop buckles on both ends of the back straps (see fig.18).
5) Pull the free ends of the back straps out of the plastic clamps (see fig.16).
6) Pull the plastic clamps off the back straps (see fig.15).
6.8 Adjusting the head support (option)
Adjusting the height and position of the head support is described in more detail in the enclosed instructions for
use (user).
The following adjustments can also be made to the head support:
Adjusting the angle and position of the head support on the ball joint
1) Loosen the screw connections on the ball joint of the head support (see fig.21, item1).
2) Swivel the head support to the desired position.
3) Firmly tighten all screw connections on the ball joint (see fig.21, item1).
Shifting the head support sideways on the cross tube of the back frame
1) Loosen and remove the screw connections between the head support holder and the cross tube of the back
frame (see fig.22, item1).
2) Slide the head support and holder along the cross tube of the back frame to the desired position (see fig.22,
item2).
3) Insert the screw connections into the appropriate slots between the head support holder and the cross tube of
the back frame and firmly tighten them (see fig.22, item1).
21 22
18
Settings
Discovery
