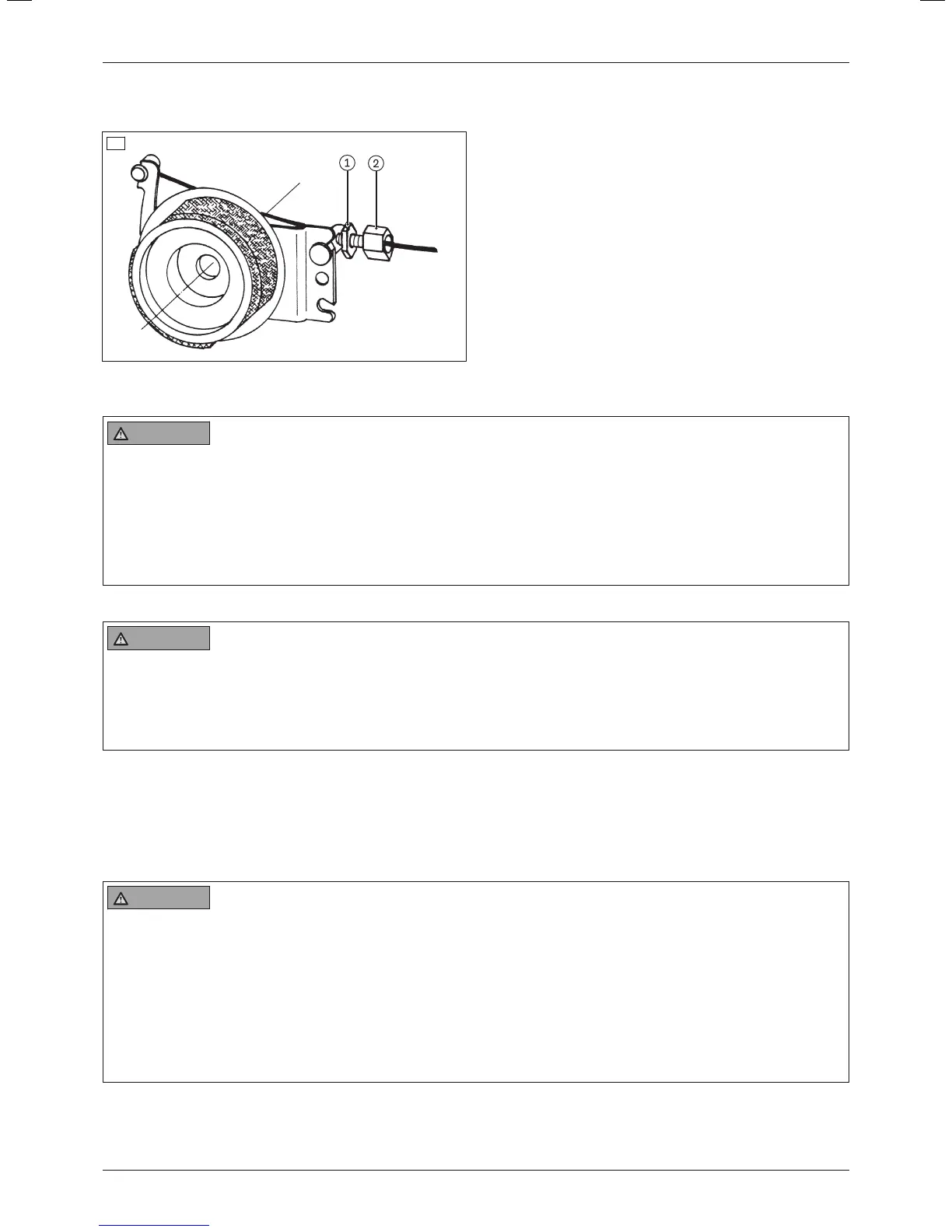

3) Tighten the counter nut (see fig.45, item1) until the adjustment screw is fixed.
→ The braking force of both rear wheels must be adjusted equally.
45
6.15 Adjusting the anti-tipper
WARNING
Use of alternative seating systems
Serious injuries to the user due to missing anti-tipper
► If the product is fitted with an alternative seating system or seating shells from other manufacturers, special
attention must be paid to static stability.
► The qualified personnel is obligated to ensure the static stability of such a combination.
► Using an anti-tipper may be required depending on the centre of gravity.
► Verify that the anti-tipper has been installed and adjusted properly.
6.15.1 Discovery Care Chair with 12"/22"/24" rear wheels
WARNING
Incorrect installation of the anti-tipper
Tipping over, falling of the user due to failure to observe the installation instructions
► Adjusting the anti-tipper is not permitted.
► Verify that the anti-tipper has been installed and adjusted properly on both sides. The mounting screw on the
respective anti-tipper tube has to be firmly tightened.
The anti-tipper setting may not be changed when 12" rear wheels are installed. The mounting screw on the anti-tip
per tube has to stay firmly installed (not illustrated).
When 22"/24" rear wheels are installed, the length and height of the anti-tipper can be adjusted separately (see
next section).
6.15.2 Discovery Standard, Discovery for Leckey KIT seat & Leckey Mygo Max or custom fabrica
tion versions with 12"/22"/24" rear wheels
WARNING
Incorrect installation of the anti-tipper/missing anti-tipper
Tipping over, falling of the user due to failure to observe the installation instructions and because of incorrect
adjustment
► Depending upon the settings of the chassis, the centre of gravity, the back angle and the experience of the
user, the use of an anti-tipper may be necessary.
► For a small wheelbase and a backrest that is tilted far back, an anti-tipper may need to be installed on both
sides, depending upon the user's experience.
► Verify that the anti-tipper has been installed and adjusted properly. Find the appropriate position with the
assistance of a helper.
28
