Otto Bock Discovery - Adaptation of the Seating Shell or the Seating System; Adjusting the Back Angle; Adjusting the Seat Depth; Installing an Ottobock Shape System (Option)

• Section "Adjusting the seat depth" (see Page12)
• Section "Adjusting the back angle" (see Page12)
• Section "Adaptation of the seating shell / seating system" (see Page12)
6.2 Adjusting the seat depth
The seat depth can be adjusted in 4 steps by sliding the back frame on the seat frame:
1) When using a seat plate: Remove the seat plate (see Page14).
2) Loosen and remove the screw connections between the backrest attachment device and the seat bar on both
sides (see fig.2, item1).
CAUTION! Risk of pinching between freely movable frame components. Actively secure the back
frame and the seat frame against falling.
3) Loosen and remove the screw connection between the perforated plate and gas compression spring on both
sides (see fig.3, item1).
CAUTION! Risk of pinching between freely movable gas compression springs. Actively secure the gas
compression springs against falling.
4) Slide the backrest attachment devices and the back frame to the desired seat depth (see fig.2, item2).
INFORMATION: Slide the backrest attachment devices and the position of the gas compression
springs equally. This maintains the angle setting of the seat frame.
5) Reinsert all screw connections in their original positions and firmly tighten them (see fig.2, item1; see fig.3,
item1).
6) When using a seat plate: Reinstall the seat plate (see Page14).

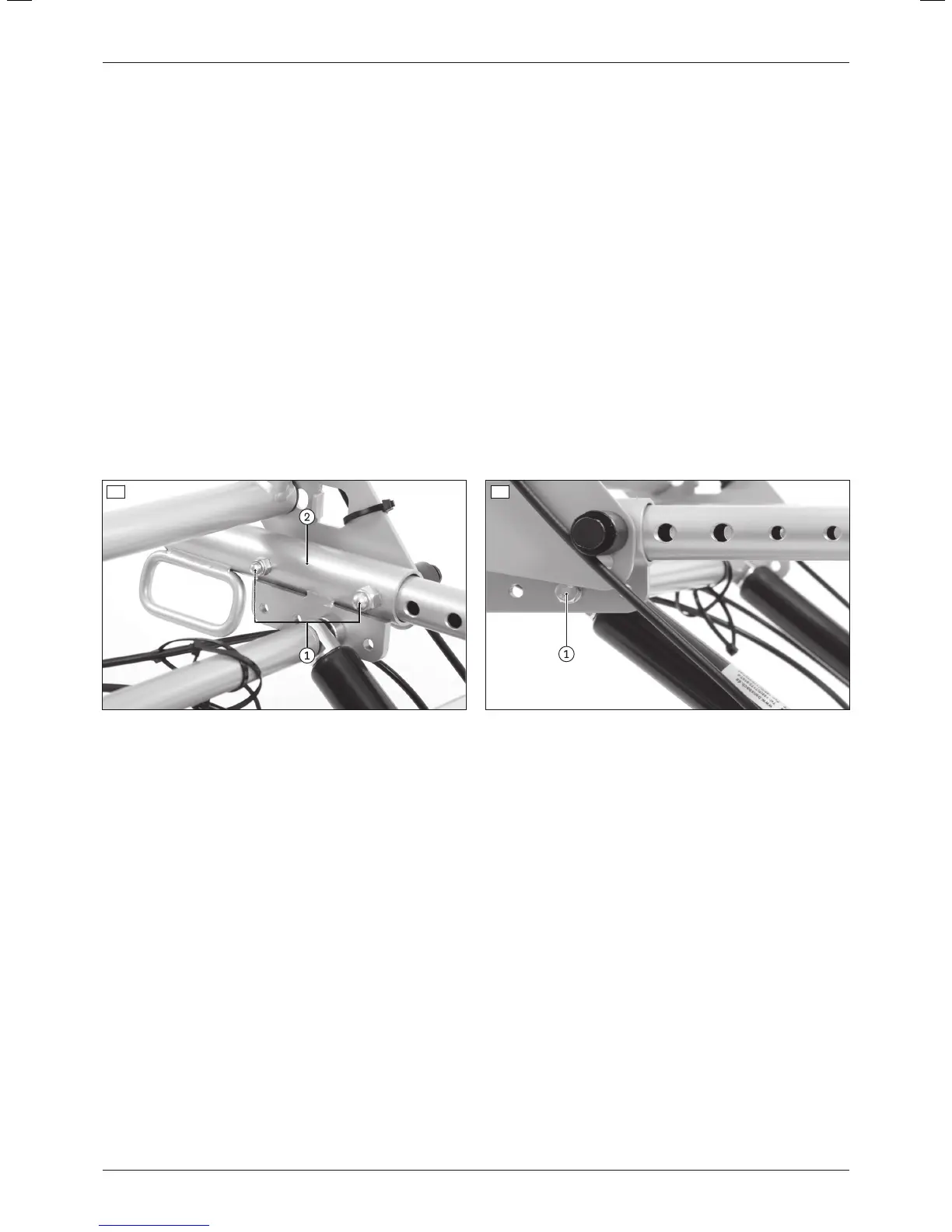

2 3
6.3 Adjusting the back angle
Adjusting the back angle is described in more detail in the included instructions for use (user).
6.4 Adaptation of the seating shell or the seating system
6.4.1 Installing an Ottobock Shape System (option)
This option may only be installed by Ottobock at this time.
6.4.2 Installing interface adapters for further seating systems (option)
The following interface adapters can be installed:
• Trapezoid adapter
• Parallel adapter
• Universal adapter (crossbars)
• "Shape/Moss" type
• "Leckey Mygo" type (400mm frame width required)
• "Leckey Squiggles" type (360mm frame width required)
• "Leckey KIT seat" and "Leckey Mygo Max" types (Discovery HR32040450 required)
• "Dräger" type
The removal and attachment of seating shells / seating systems on the interface adapters is described in more
detail in the included instructions for use (user).
12
Settings
Discovery
