c) Adjusting the support angle of the following legrests:
• Segmented (plastic)
• Elevating, segmented with calf pad (plastic)
• Elevating, segmented with calf band (plastic)

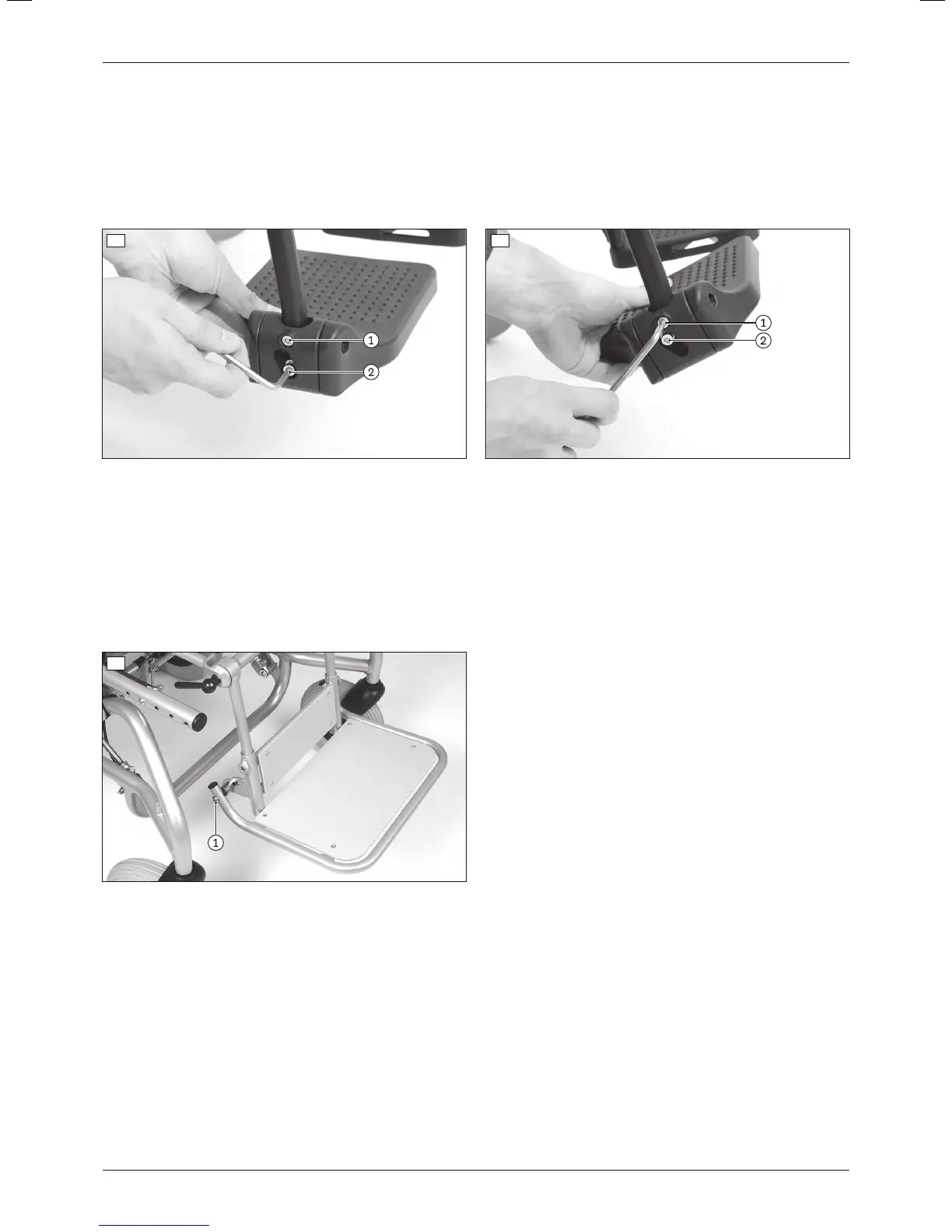

1) Loosen the screw connections on the mounting for adjusting the footplate angle (see fig.30, item1/2).
2) Set the desired footplate angle (see fig.31).
3) Firmly tighten the screw connections to a torque of 6Nm (see fig.31, item1/2).
30 31
d) Adjusting the support angle of the following legrest:
• With single-panel footplate for seating shell interface (steel)
1) Loosen the clamping screws on the left and right joint of the footplate (see fig.32, item1).
2) Set the desired footplate angle. Slide the clamping screws evenly in the left and right slotted hole without tilt
ing.
3) Firmly tighten the clamping screws on the left and right joint of the footplate (see fig.32, item1).
INFORMATION: Sufficiently tighten the clamping screws so that the footplate remains securely posi
tioned even when flipped up.
32
6.10 Adjusting the armrests (option)
6.10.1 Adjusting the armrest depth with short arm support
The depth of the armrests with short arm support can be adjusted.
1) Remove the cover caps on the bottom of the arm support (see fig.33, item1).
2) Loosen and remove the screw connections on the bottom of the arm support (see fig.33, item2).
3) Slide the arm support along the connection tube to the desired position.
INFORMATION: Shift the left and right arm supports to the same depth.
4) Insert the screw connections into the appropriate holes on the bottom of the arm support and carefully tighten
them.
5) Firmly push the cover caps into the open holes on the bottom of the arm support.
22
