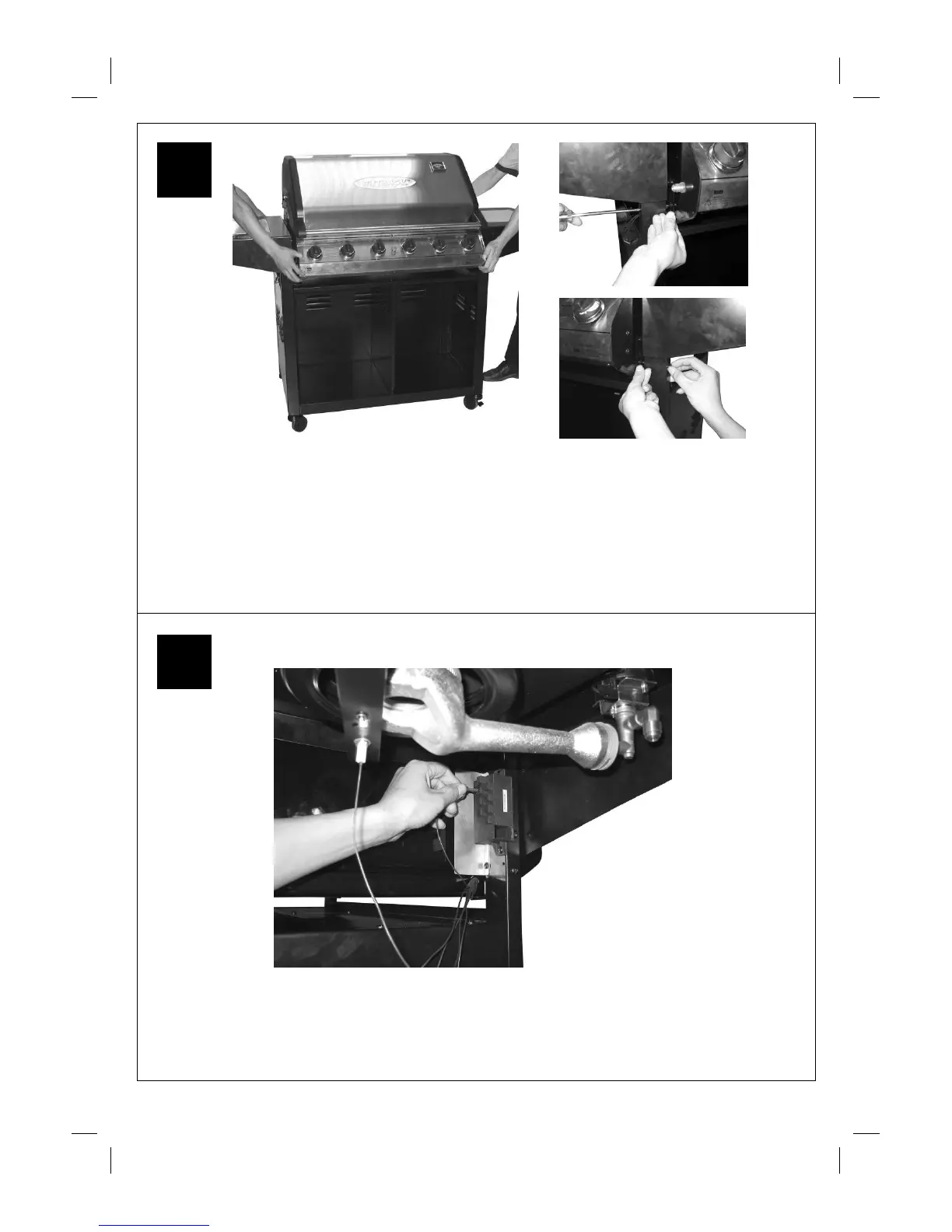

Insert Spacers (E5) into holes in the sidewall of the body and turn 90 degrees to lock in place.
Carefully lay the Barbecue Body (B1) onto the supports on the cabinet. WARNING: DO NOT RELEASE
THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED. THIS MAY
RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.
Attach the body by inserting the Bolt (E3) through the leg of the side panel and then through the Spacer
(E5) which has been previously inserted into the sidewall of the body. Place the Washer (E4) over the
bolt (E3) and protruding part of the Spacer (E5) and secure with the Wing Nut (E6). Repeat for all 8
bolts.
Connect the wires to the Ignition Assembly (C22) as shown on the next page.
