Outlaw 975 - Chapter 1 Overview; Model 975 Features

Outlaw Audio
6
Model 975
7.1 Channel
Preamp/Processor
Thank you for purchasing the Outlaw
Audio Model 975. This 7.1 channel preamp/
processor is our response to enthusiasts who
requested a simpler pre/pro, one with only the
functions they really need, such as industry-
standard DTS and Dolby surround technologies,
HDMI switching, high-quality digital-to-analog
conversion, and multiple crossover point settings.
This simplicity not only makes the Model 975
compact and aordable, it also makes it easier
to use.
Chapter 1 Contents
6 Model 975 Features
7 Accessories
8 Model 975 Front Panel
9 Model 975 Rear Panel
10 Remote Controls
15 Front Panel Display
16 Audio Formats and Listening Modes
18 Speaker Setup Tips
Chapter 1 Overview
In order to get maximum performance from your Model 975,
please take a few minutes to read this manual. It tells you
everything you need to know to connect, congure, and use
this product. By following the steps we list and explain here,
you will get the best possible performance from your speak-
ers, amplier(s), and subwoofer, as well as the best possible
picture and sound from your source components.
If you have any questions about this product, its installa-
tion or operation, please contact us via e-mail at
customerservice@outlawaudio.com or via tele-
phone at 866-OUTLAWS (688-5297).
IMPORTANT: The Model 975 is shipped from the factory
with the following default settings.
Output Conguration 7.1
Loudspeaker Size Small
All Crossovers 80 Hz
Video Output Resolution 720p
Volume -25dB
After reading the rest of this manual, please refer to pages 26-36
to adjust these settings.
Model 975 Features
Your new Outlaw Audio preamp/processor is a high-perfor-
mance audio device, designed to work with practically any
of the wide variety of ampliers and source devices on the
market today. Whether your source is a Blu-ray Disc with
a 7.1-channel DTS-HD Master Audio lossless soundtrack or
an audiophile CD player or even an old cassette deck, the
Model 975’s audio processing technology can handle it
correctly. The Model 975 features:
A. 4 3D HDMI Inputs
Each input is assignable, providing comprehensive
system connectivity.
B. HDMI Output with ARC
Audio Return Channel receives audio signals from a
connected TV.
C. 4 Digital Inputs (2 coaxial, 2 optical)
Each input is assignable, providing comprehensive
system connectivity.
D. 2 Component Video Inputs
High-bandwidth switching circuitry for maximum
picture quality.

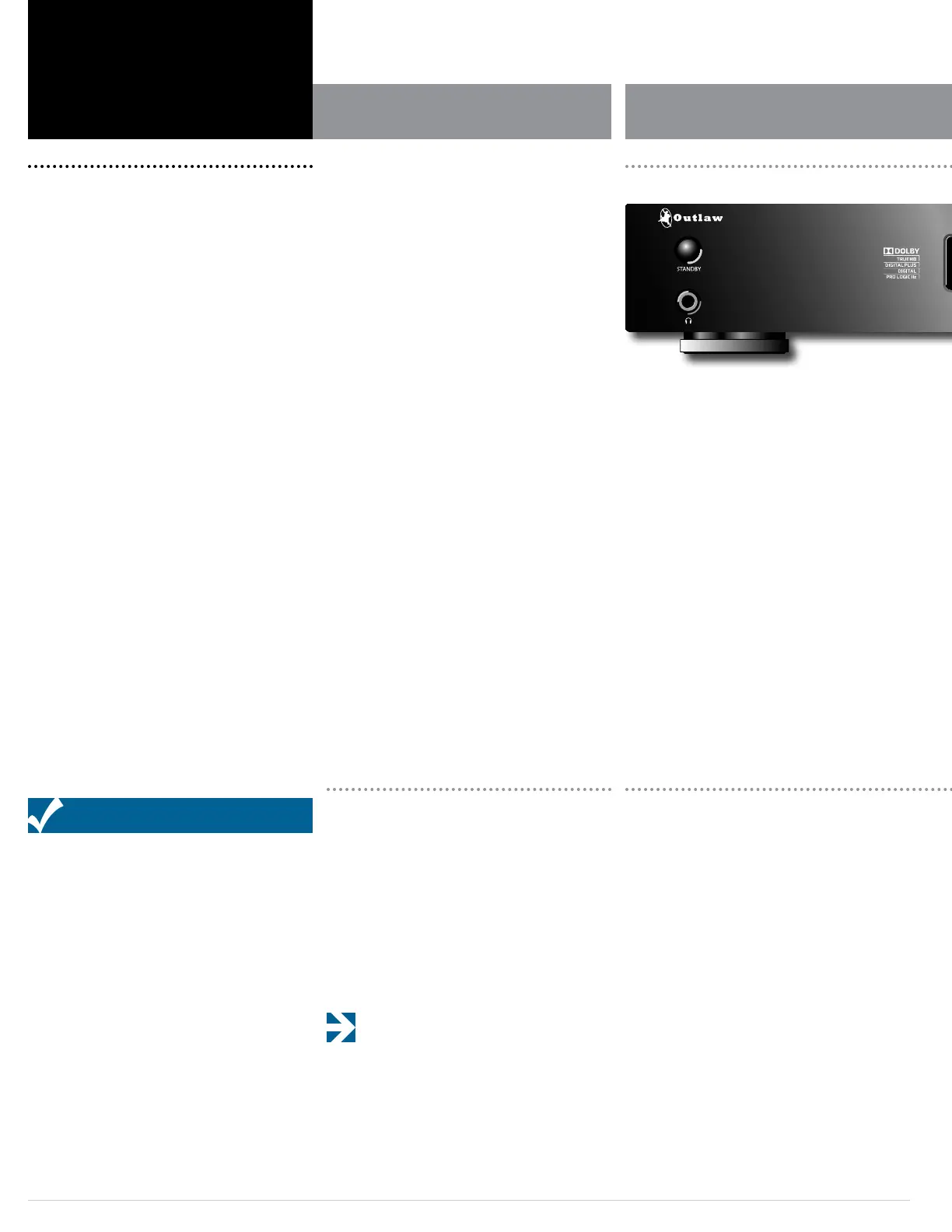

Model 975 Front Panel
