5.Use the Multimeter
95
5. Use the Multimeter
Input Terminals
The input terminals are on the top of the oscilloscope, which marked as COM,
V/Ω/C.
Input connectors of multimeter

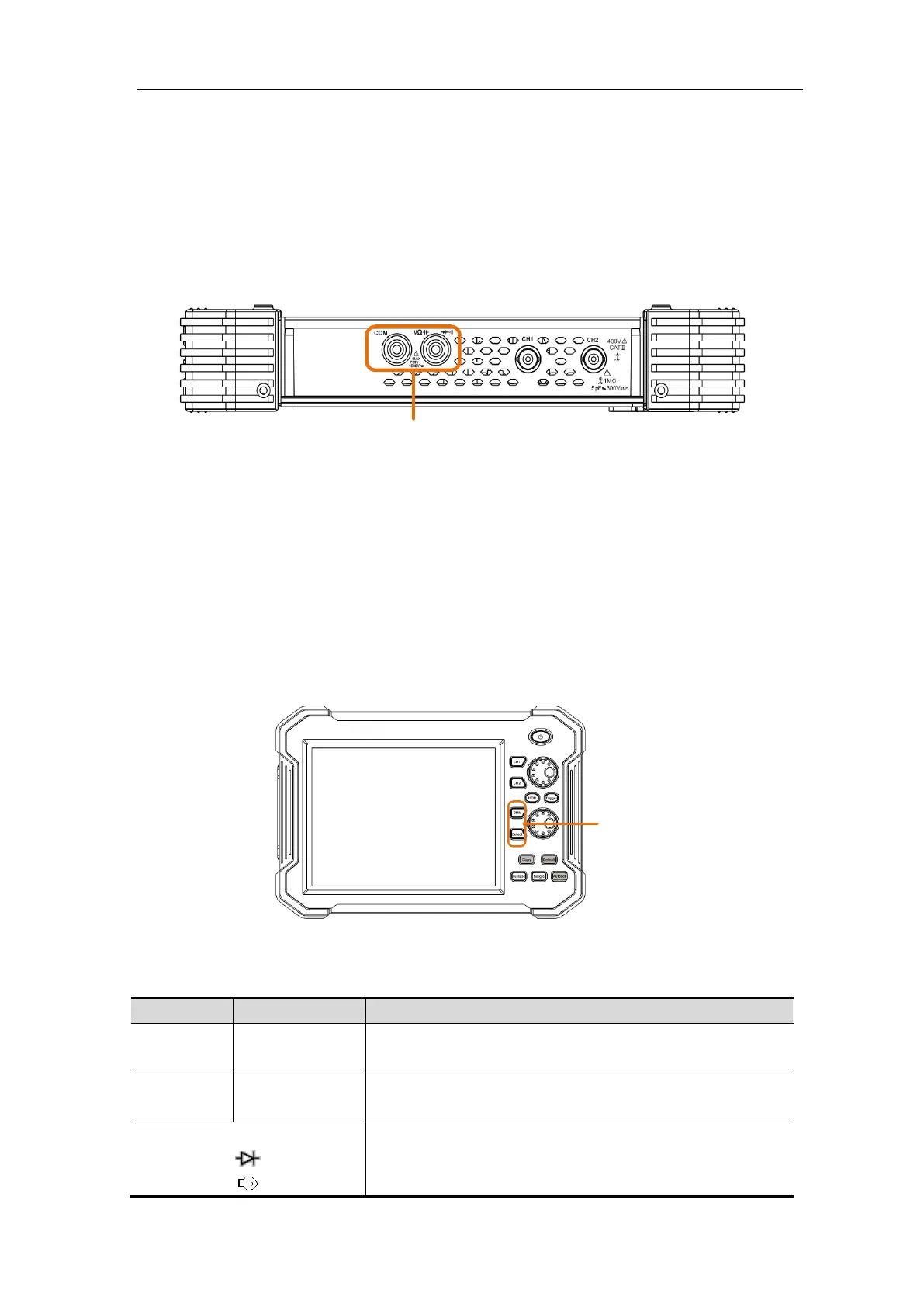

Figure 5-1 Multimeter Input Terminals
DMM Menu
Push DMM button on the front panel to enter/exit the multimeter function. The
button backlight will be lighted when the multimeter function is enabled.
Select: Switch between AC and DC when measuring voltage or current; and
switch resistance, continuity, diode, and capacitance measurement when selecting
other.
Multimeter
Button
Figure 5-2 Multimeter Button
The bottom menu of multimeter is as below:
Menu
Setting
Description
Current
ACA
DCA
Measuring AC current
Measuring DC current
Voltage
ACV
DCV
Measuring AC voltage
Measuring DC voltage
R
Measuring resistance
Testing diode
Testing for continuity
