4.Advanced User Guidebook
Seconds, 5 Seconds and Infinity. When the "Infinity" option is set for
Persist Time, the measuring points will be stored till the controlling value is
changed. Select OFF to turn off persistence and clear the display.
(5) Select Clear in the bottom menu to erase the results of previous
acquisitions from the display. The oscilloscope will start to accumulate
acquisitions again.
Color
Color temperature function uses color-grading to indicate frequency of
occurrence. The hot colors like red/yellow indicate frequently occurring events,
and the colder colors like blue/green indicate rarely occurring events.
(1) Click to call up the menu panel. Click the Display softkey on panel.
(2) Select Persist&Color in the bottom menu.
(3) Select Color in the right menu, choose between ON/OFF.

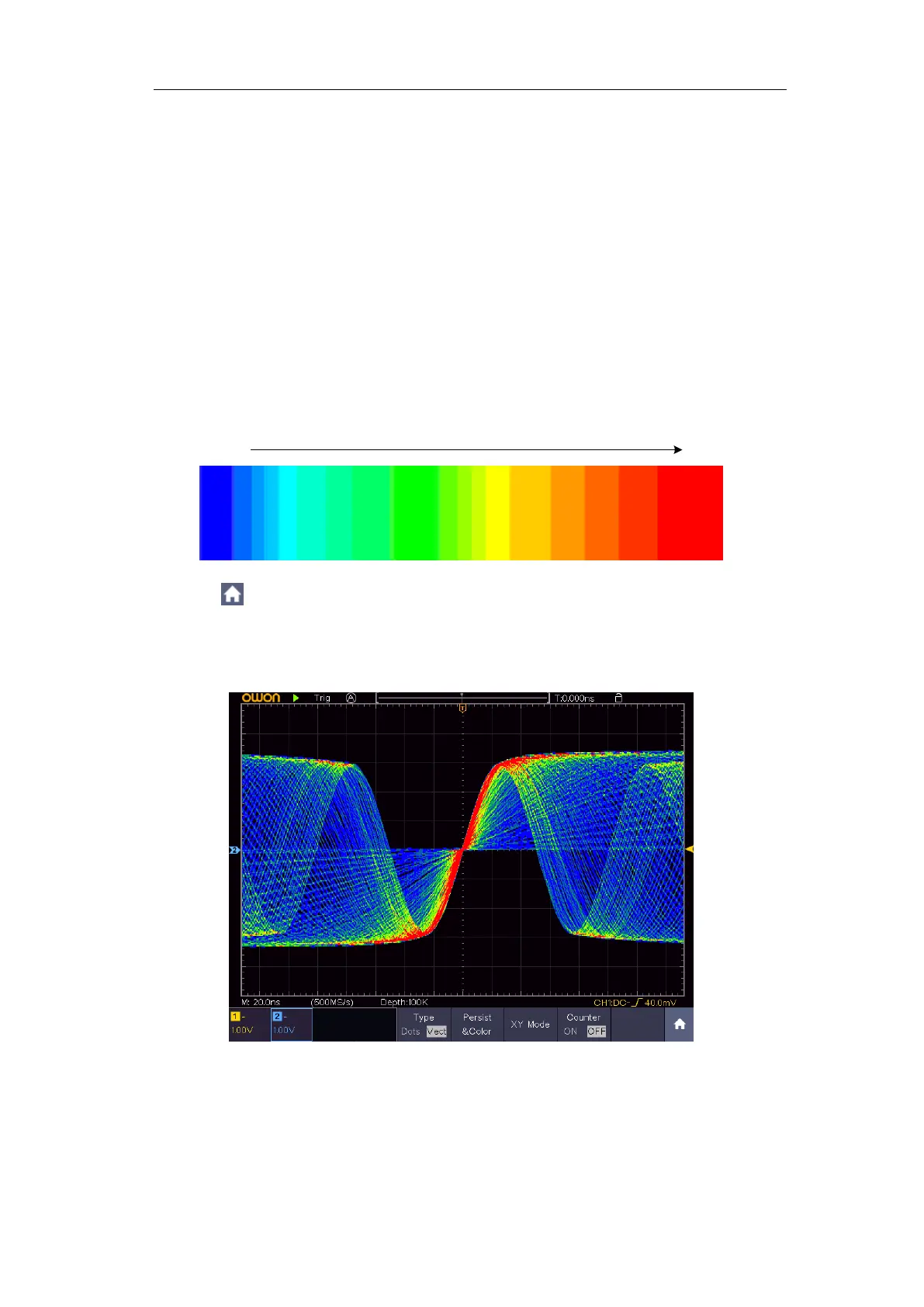

Figure 4-6 The color temperature function is on
Counter
It is a 6-digit single-channel counter. The counter can only measure the
frequency of the triggering channel. The frequency range is from 2Hz to the full
To Next Page
