4.Advanced User Guidebook
horizontal direction of the screen, two blue dotted lines displayed along
the vertical direction of the screen. Cursor measure window at the left
bottom of the screen shows the cursor readout.
4. In the bottom menu, select Line Type as Time to make the vertical
cursors active. Click line a to select it, swipe left/right to move it. Click
line b to select it, swipe left/right to move it.
5. In the bottom menu, select Line Type as Voltage to make the
horizontal cursors active. Click line a to select it, swipe up/down to
move it. Click line b to select it, swipe up/down to move it.
6. Push the Horizontal HOR button to enter wave zoom mode. In the
bottom cursor menu, select Window as Main or Extension to make
the cursors shown in the main window or zoom window.

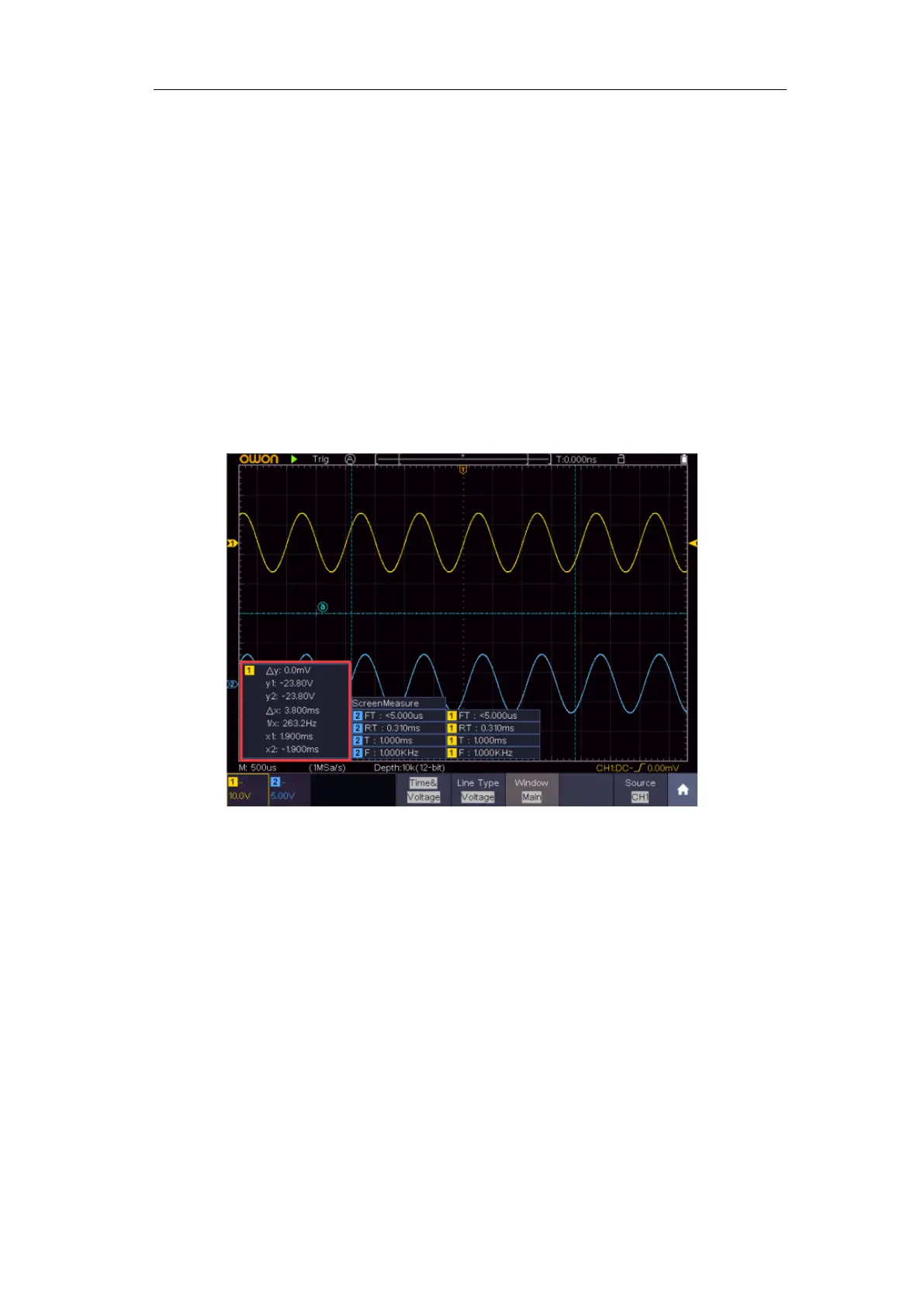

Figure 4-21 Time&Voltage Cursor Measurement
Auto Cursor
For the AutoCursr type, the horizontal cursors are set as the intersections of
the vertical cursors and the waveform.
