4.Advanced User Guidebook

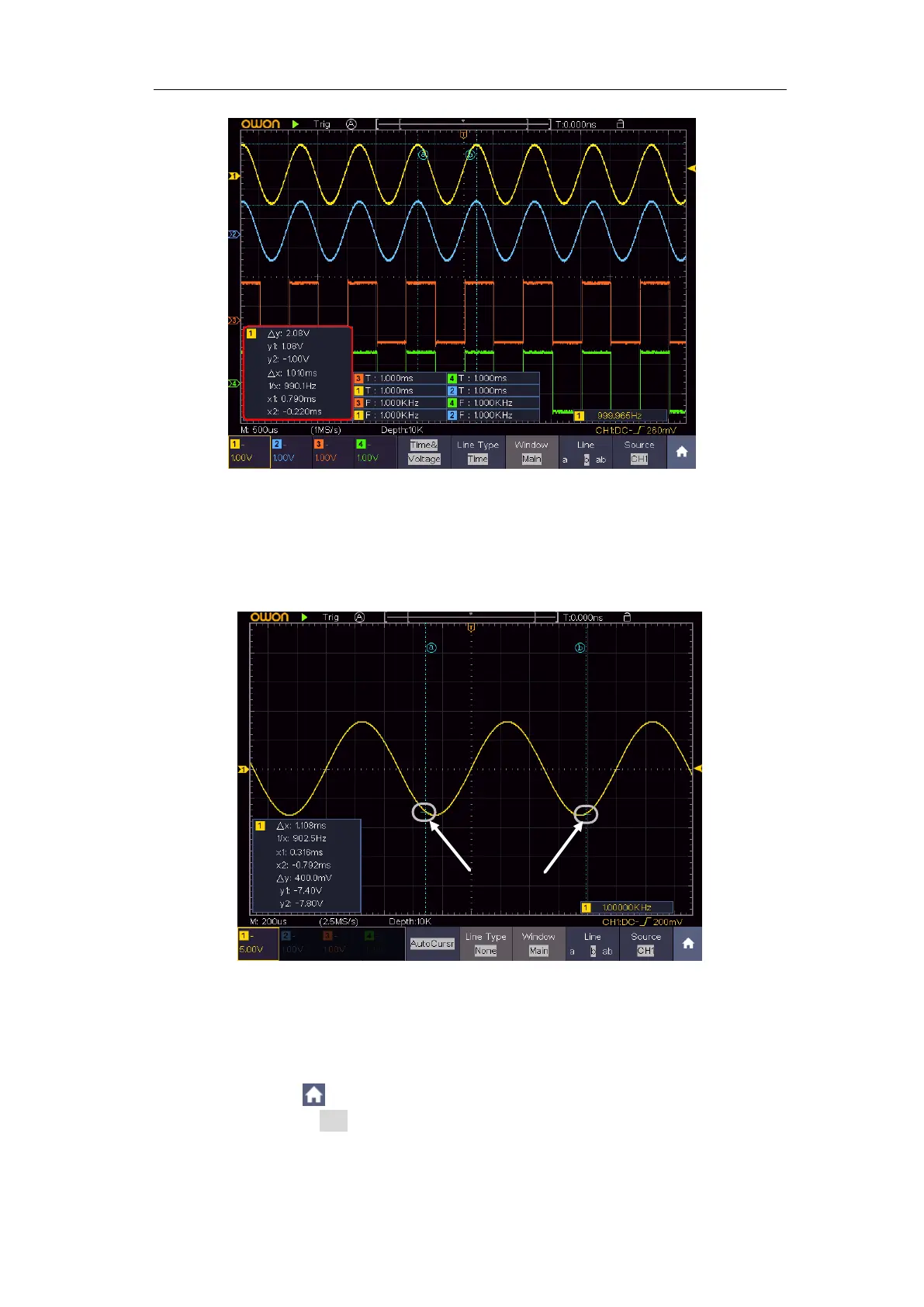

Figure 4-21 Time&Voltage Cursor Measurement
Auto Cursor
For the AutoCursr type, the horizontal cursors are set as the intersections of
the vertical cursors and the waveform.
Figure 4-22 Auto Cursor
The Cursor Measurement for FFT mode
In FFT mode, click to call up the menu panel. Click the Cursor softkey on
panel to switch to the ON state and display the cursor menu.
The description of the cursor menu in FFT mode is shown as the following
table:
