Owon XDM2041 Series User Manual

3.Functions and Operations

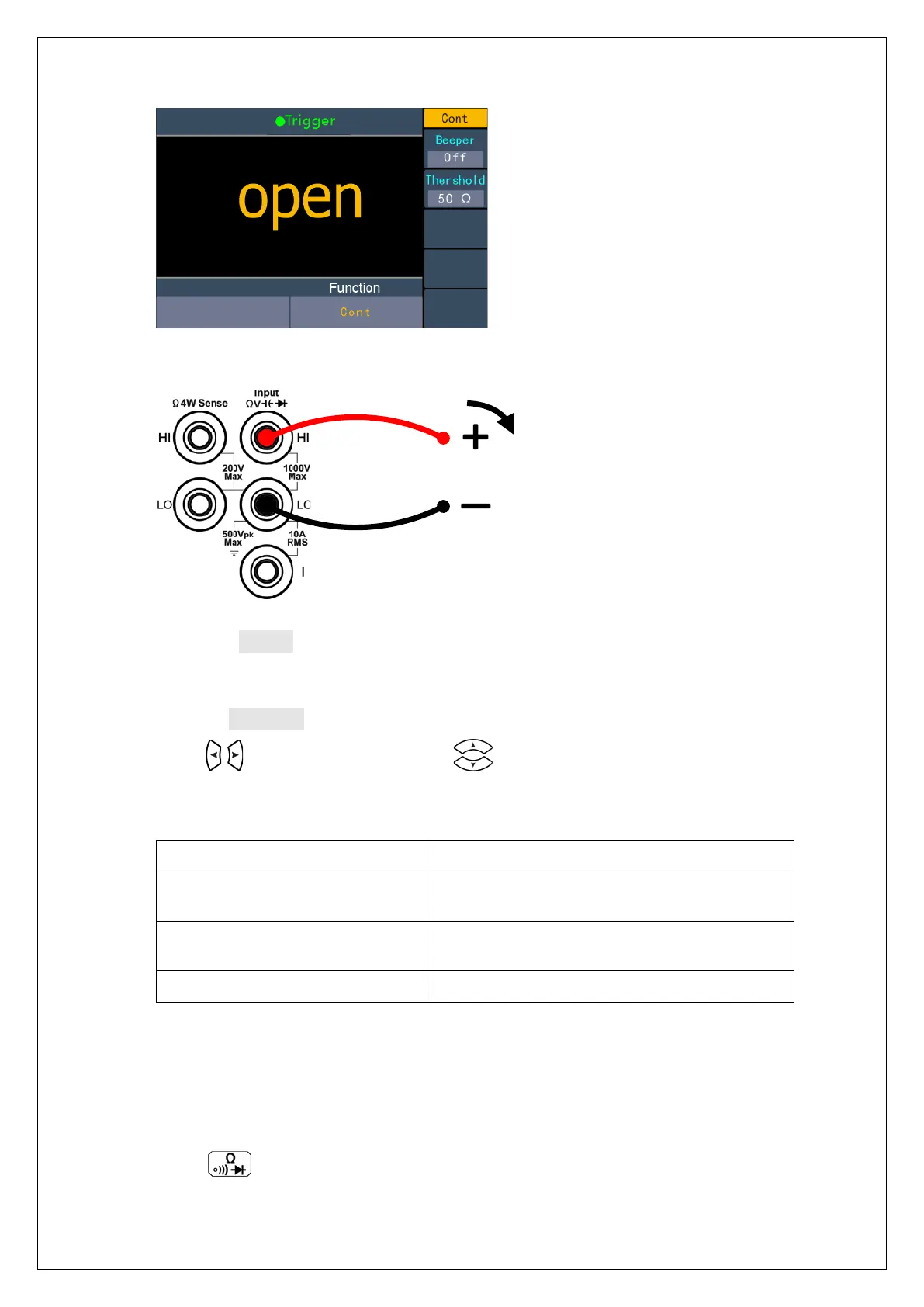

2. Connect the test lead.
Open or Closed Circuit
I
3. Set the beeper.
Press the Beeper softkey to enable or disable the beeper. When the beeper is
enabled, the reading is below 30 Ω, the multimeter will beep continuously.
4. Set the short-circuit resistance.
Press the Threshold softkey to set the short-circuit resistance.
Press to move the cursor, press to increase or decrease the value.The
range for the 1 Ω to 1000 Ω. The default is 50 Ω.
5. Continuity measurements behave as follows:
Circuit resistance to be measured Display and beep
≤ Short-circuit resistance
Displays measured resistance and beeps (if
beeper enabled)
Short-circuit resistance to 1000Ω
Displays measured resistance without
beeping
> 1000Ω Displays "Open" with no beep
Diode Test
This section describes how to configure diode test.
Operating Steps:
1. Enable the diode test.
Press on the front panel, press it twice to enter diode test mode.
20
