Chapter 3 Expansion & Installation
3.1 System basically configured
This system basically configured is 4 C.O lines and 16 extension lines:
A、Normal supply power switch
B、832-416 main board ( just with first line operator)
Note: in bascally configure tpye system not include CID expand board and PC function(need to
buy activation code),and not include door opener expand board, keyphone connect board.
3.2 Power Failure Transfer
This system has power failure transfer function, C.O line 1-4 to exts line 605-608, C.O line 5-8 to
exts line 609-612. C.O line 5-8 need set the board switch, details see complementary user
manual.
3.3 Broadcast Interface

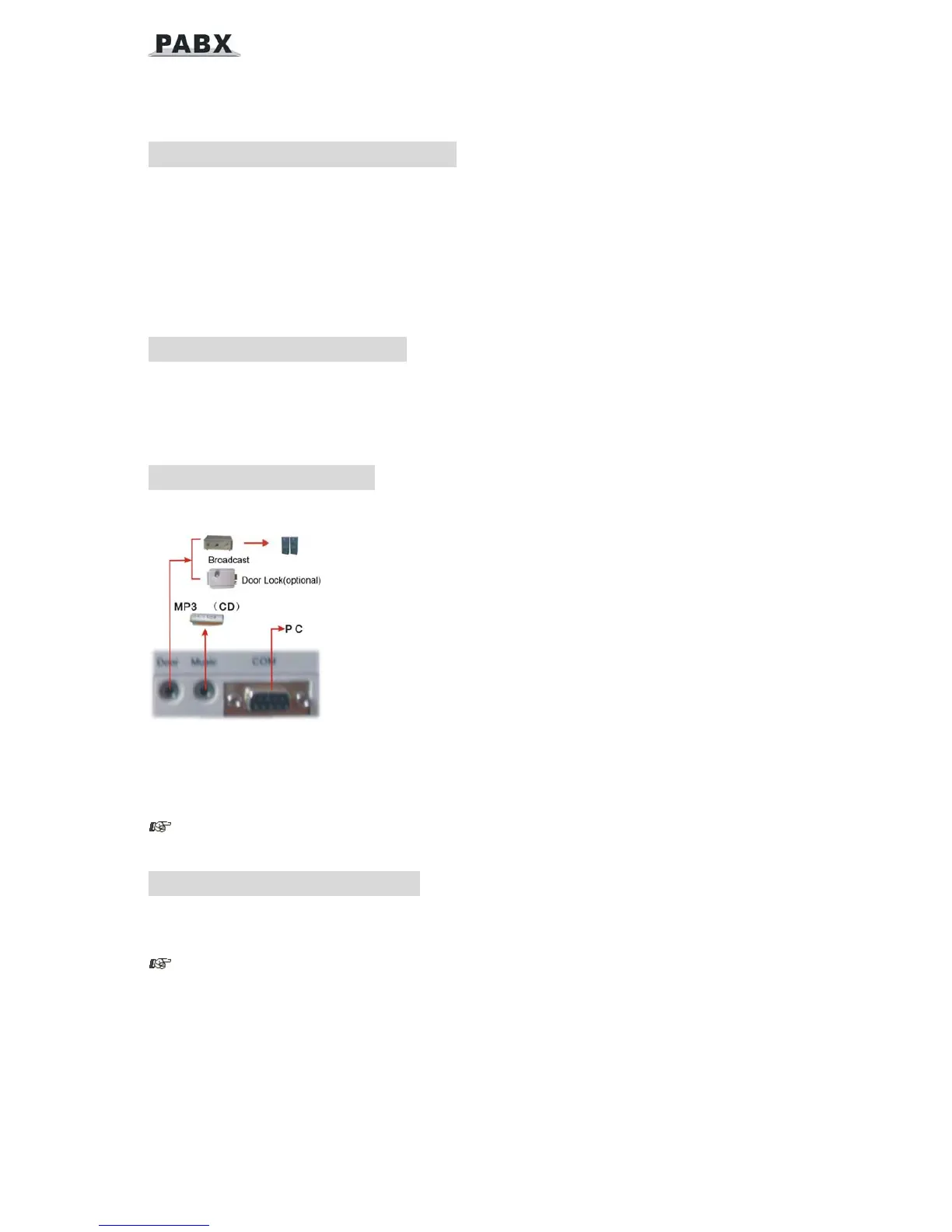

As the below Figure(for CP832 series)
Through this interface, external broadcast system can call someone, also can make PC
recording.
Note: this function same interface as the doorphone function, just can choose one at same time,
the default seting is for broadcast function.
Doorphone function is the optional function.
3.4 External Music Interface
System music is for the system holding, transfer and doorphone calling, external music interface
can be input the music by CD or MP3 players.
When use the external music interface, connect with external music first, and then see the
operating instruction 5.6 item, or see system programming 4.7.4 item to change the internal
music into external music.
