Using a DVI connection with digital audio
The HDMI connector on the set-top box can provide the connection to an HDTV with a
DVI input. If your HDTV has a Digital Visual Interface (DVI) connector, you need an
HDMI-to-DVI cable and a separate digital optical audio cable.

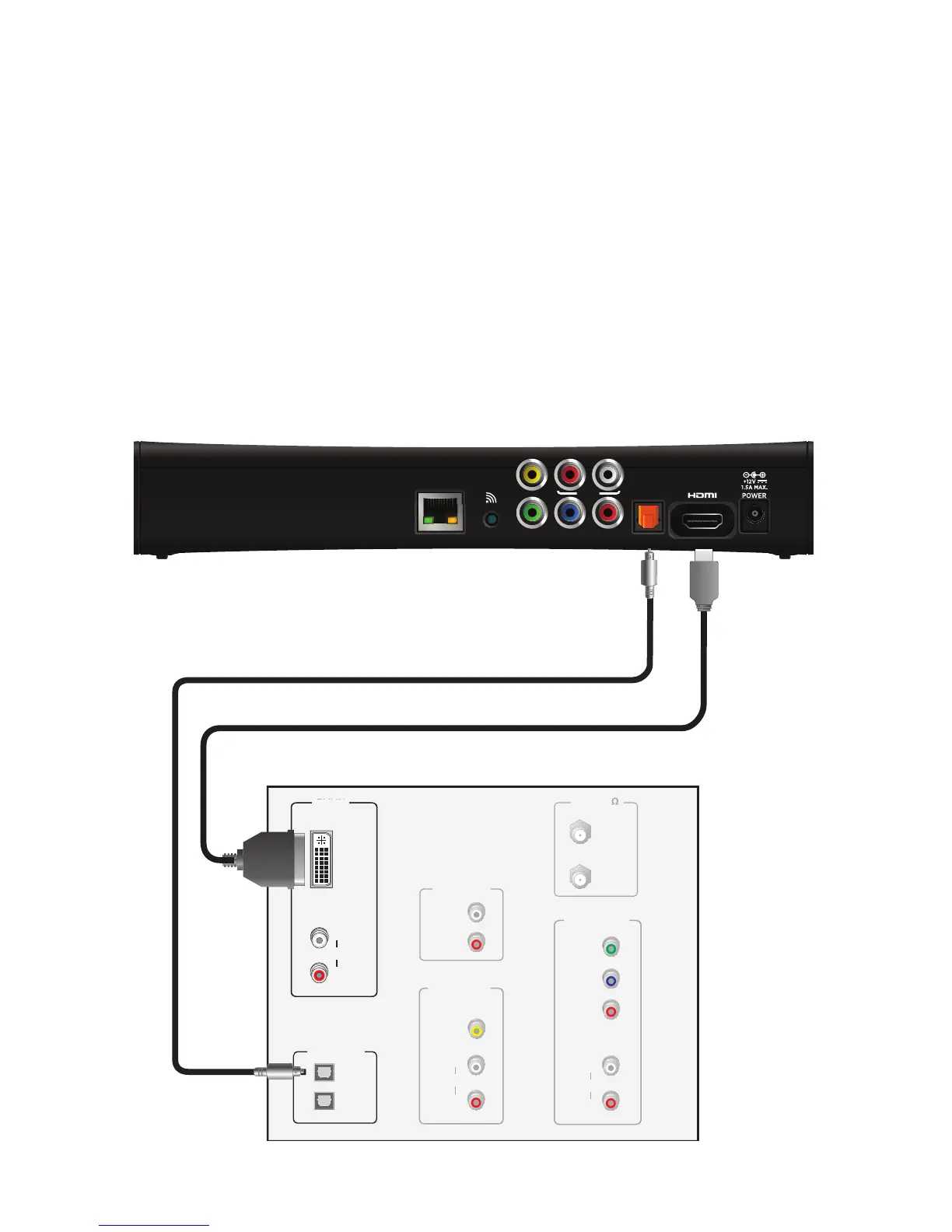

To connect the set-top box to the TV using an HDMI-to-DVI cable and digital audio
cable:
1. Insert the HDMI end of the cable into the HDMI connector on the set-top box.
2. Insert the 24-pin DVI end of the cable into the DVI connector on the TV.
3. Connect the fiber optic audio cable to the OPTICAL connector on the set-top box.
4. Connect the other end of the fiber optic audio cable to an available OPTICAL IN
connector on the TV.
