Pace IPW8000 - Using a DVI Connection with Analog Audio

19
Using a DVI connection with analog audio
The HDMI connector on the set-top box can provide the connection to an HDTV with a
DVI input. If your HDTV has a Digital Visual Interface (DVI) connector, you need an
HDMI-to-DVI cable and a separate analog audio cable.

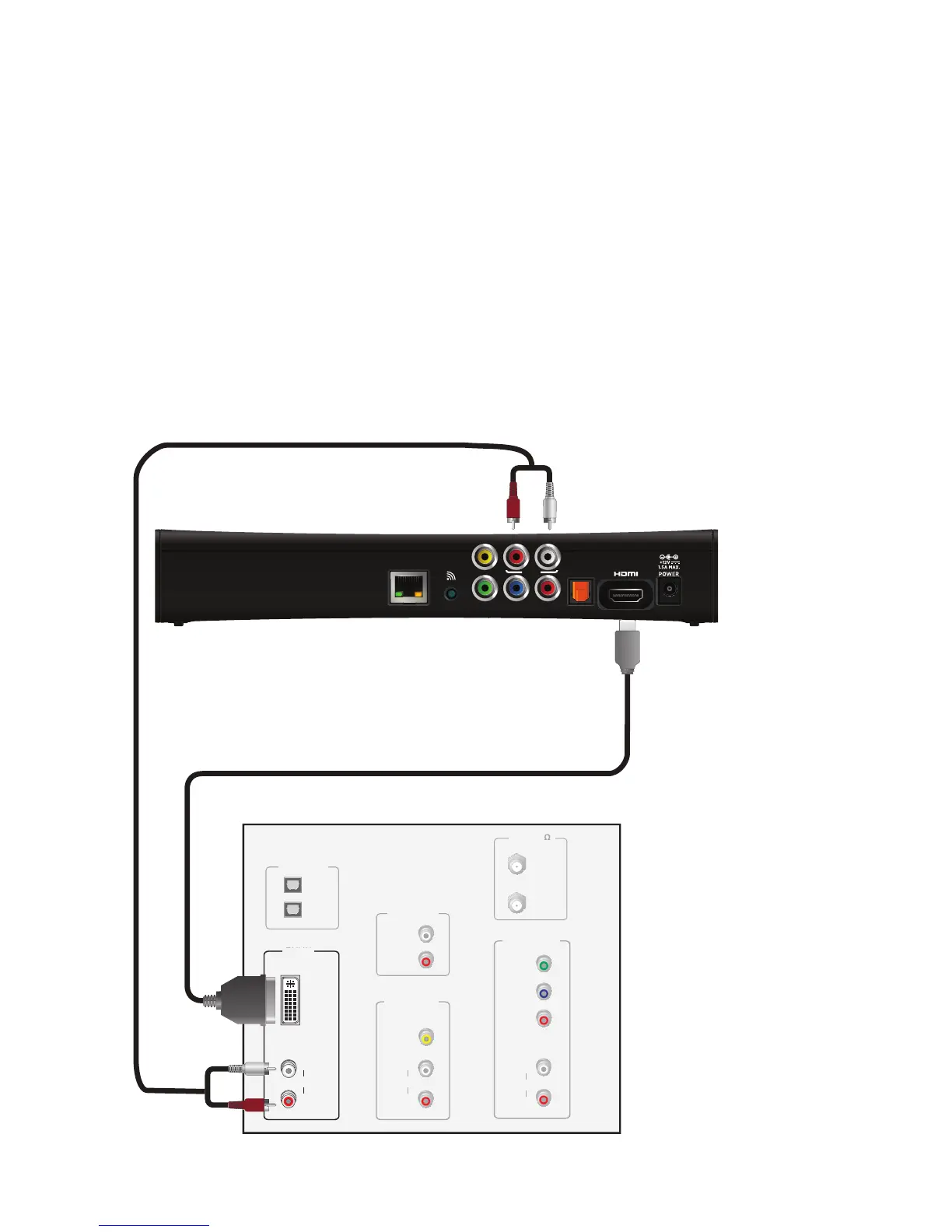

To connect the set-top box to the TV using an HDMI-to-DVI cable and analog audio
cable:
1. Insert the HDMI end of the cable into the HDMI connector on the set-top box.
2. Insert the 24-pin DVI end of the cable into the DVI connector on the TV.
3. Connect the color-coded analog audio cable to the AUDIO L (white) and R (red)
connectors on the set-top box.
4. Connect the other end of the color-coded analog audio cable to the AUDIO L (white)
and R (red) connectors on the TV.
Television
ANT (75 )
IN
OUT
VIDEO
COMPOSITE
VIDEO IN
L
R
AUDIO
DVI IN
L
R
AUDIO
AUDIO OUT
L
R
OPTICAL IN
Y
P
B
P
R
COMPONENT
VIDEO IN
L
R
AUDIO
1
2
Set-top box
Analog audio cable
HDMI to DVI cable
YPbPr
OPTICAL
NETWORK
RL
AUDIO
VIDEO OUT
WPS
L
R
AUDIO
DVI IN
