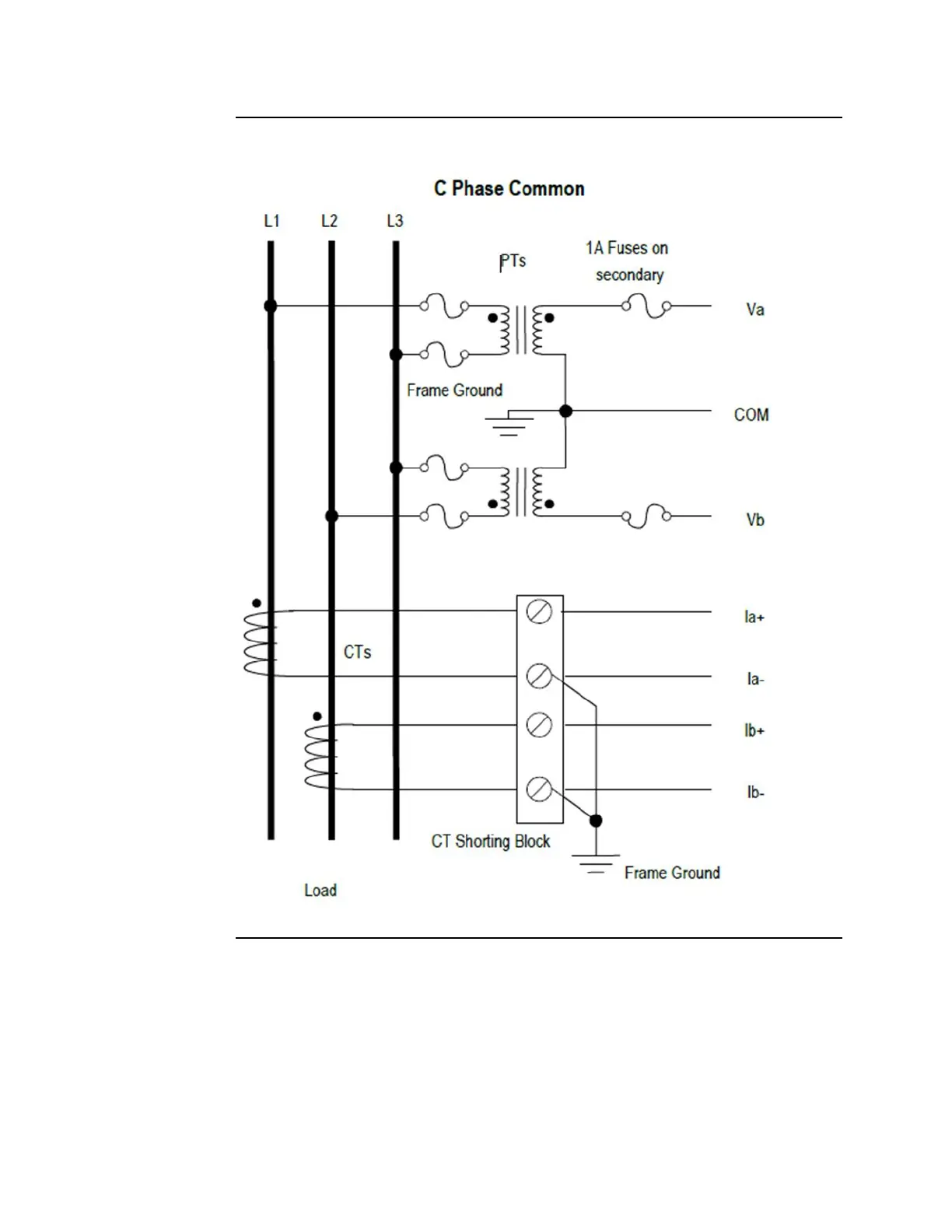

Figure 15
WYE Synchro/Power Control Connection
In the following figure the PSM system is connected between two systems, the Public Grid
and Generator sub-systems. This connection scheme gives the PSM module all the
information needed to make decisions about paralleling the two grids. Fuses on the PT
primaries and secondaries are required. A fuse failure indicates wiring problems within the
system.
