Operation Using two Hand Cable Controls
with three Pushbuttons, Each
Note: As of May 2019, the hand cable control shown in the illus-
tration is used. Please note: Older models of the hand ca-
ble control have a different pushbutton assignment.
42
43
44
45
46
47

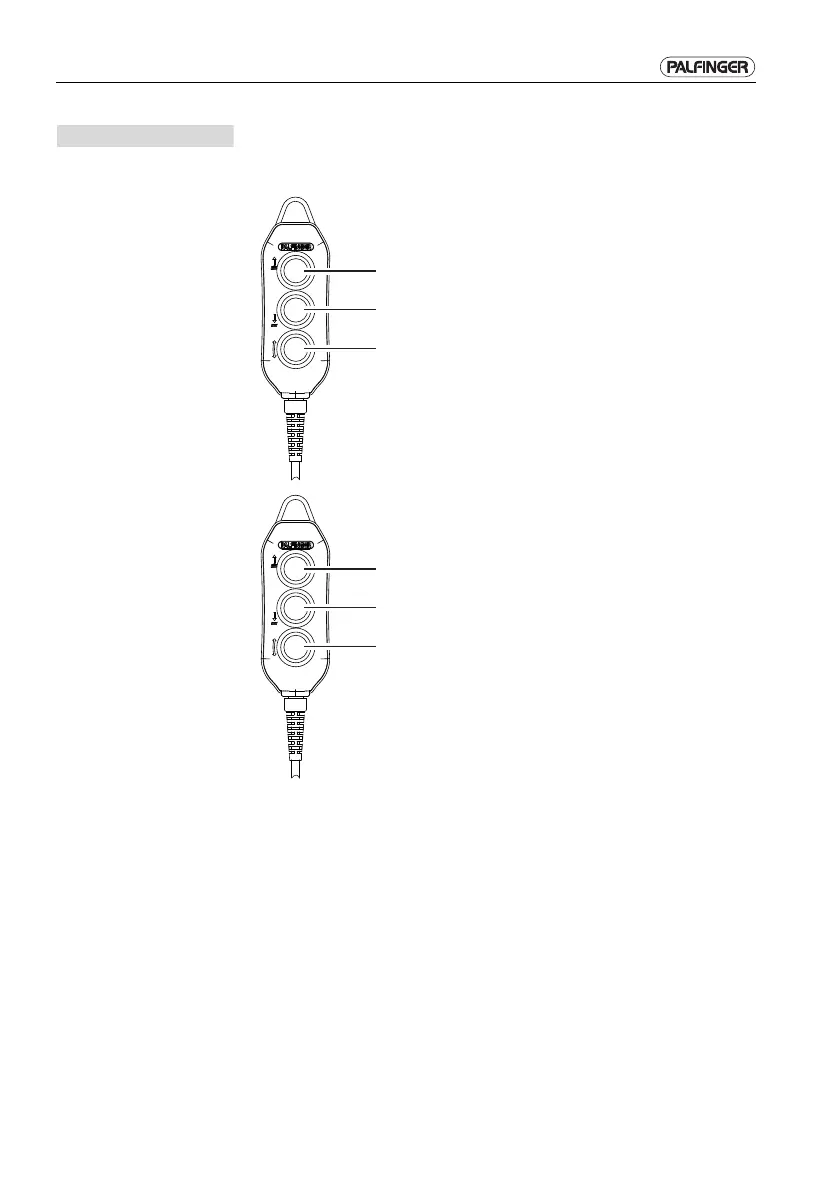

Hand cable control 1
42 Pushbutton: lift platform
43+42 Pushbutton: close platform
44 Pushbutton: lower platform
43+44 Pushbutton: open platform
Hand cable control 2
45 Pushbutton: lift platform
46+45 Pushbutton: fold in link bridge
47 Pushbutton: lower platform
46+47 Pushbutton: fold out link bridge
