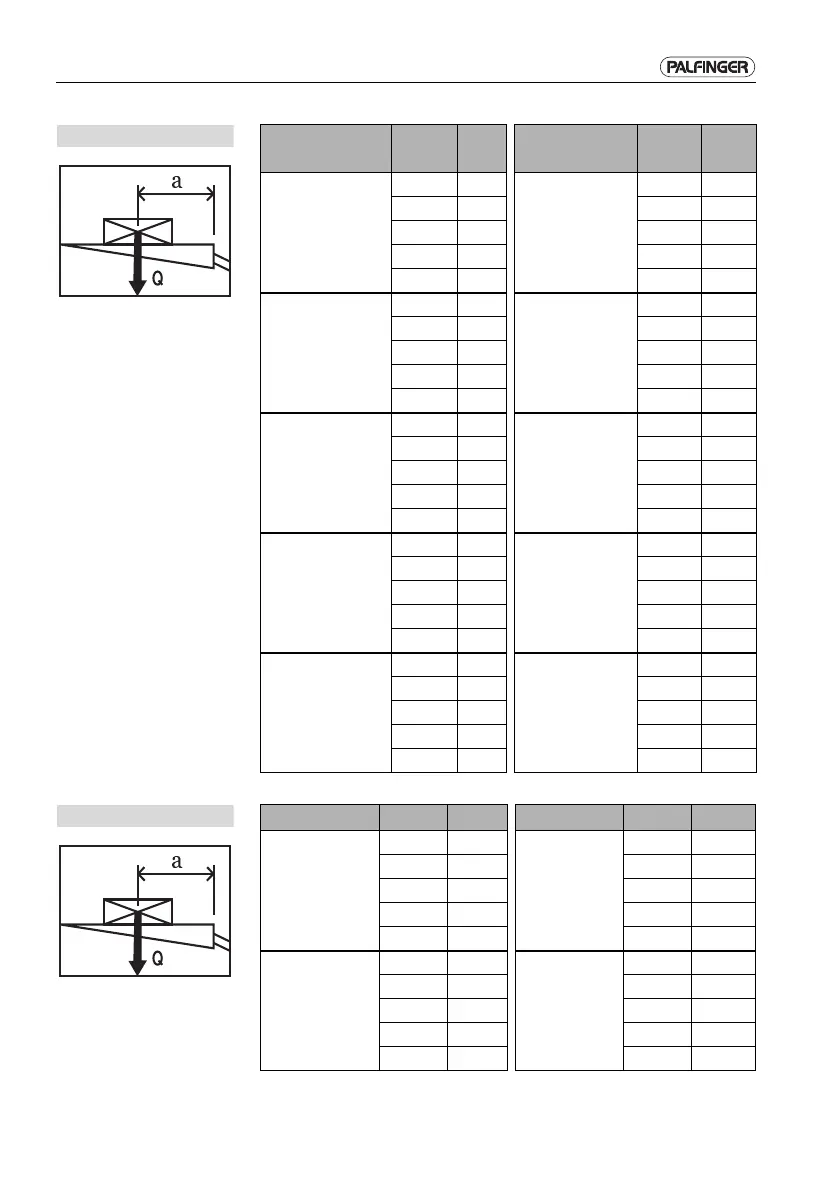

Palfinger MBB C 1000 S User Manual

172
F
a
[mm]
Q
[kg]
a
[mm]
Q
[kg]
MBB
R 750 L
600 750
MBB
R 1500 S
R 1500 SK
R1500STRAIL
R1500STRUCK
1000 1500
700 650 1200 1250
820 550 1500 1000
1120 400 1850 800
1800 250 2400 600
MBB
R 1000 S
R1000STRUCK
700 1000
MBB
R 2000 L
R 2000 LK
R2000 L TRAIL
R2000
L TRUCK
750 2000
875 800 900 1650
1150 600 1100 1300
1700 400 1600 950
2400 250 2400 600
MBB
R1000STRUCK
LGD / CCD
800 1000
MBB
R 2000 S
1000 2000
950 840 1200 1650
1100 725 1500 1350
1250 640 1800 1100
1400 570 2100 950
MBB
R 1500 L
R 1500 L FLAT
R 1500 LX FLAT
600 1500
MBB
R 2500 L
R 2000 L TRAIL
750 2500
720 1250 900 2050
900 1000 1100 1700
1200 750 1600 1150
2400 370 2400 750
MBB
R 1500 L TRUCK
LGD / CCD
700 1500
MBB
R 2500 S
1000 2500
850 1235 1400 1785
1000 1050 1600 1560
1150 900 1800 1385
1300 800 2400 1040
G
a [mm] Q [kg] a [mm] Q [kg]
MBB
R 750 SM
600 750
MBB
R 1500 SM
R 1500 SH
1000 1500
700 650 1200 1250
820 550 1500 1000
1120 400 1850 800
1800 250 2400 600
MBB
R 1000 LM
600 1000
MBB
R 2000 LM
R 2000 LH
750 2000
750 800 900 1650
950 600 1100 1300
1400 400 1600 950
2400 230 2400 600
Betriebsanleitung_Hubladebuehnen_EN.book Seite 172 Donnerstag, 15. August 2019 4:04 16
