Extending the Hydraulic Stabilizer Feet
Turn the rotary switch (30) downward until the stabilizer feet
are extended almost to the ground.

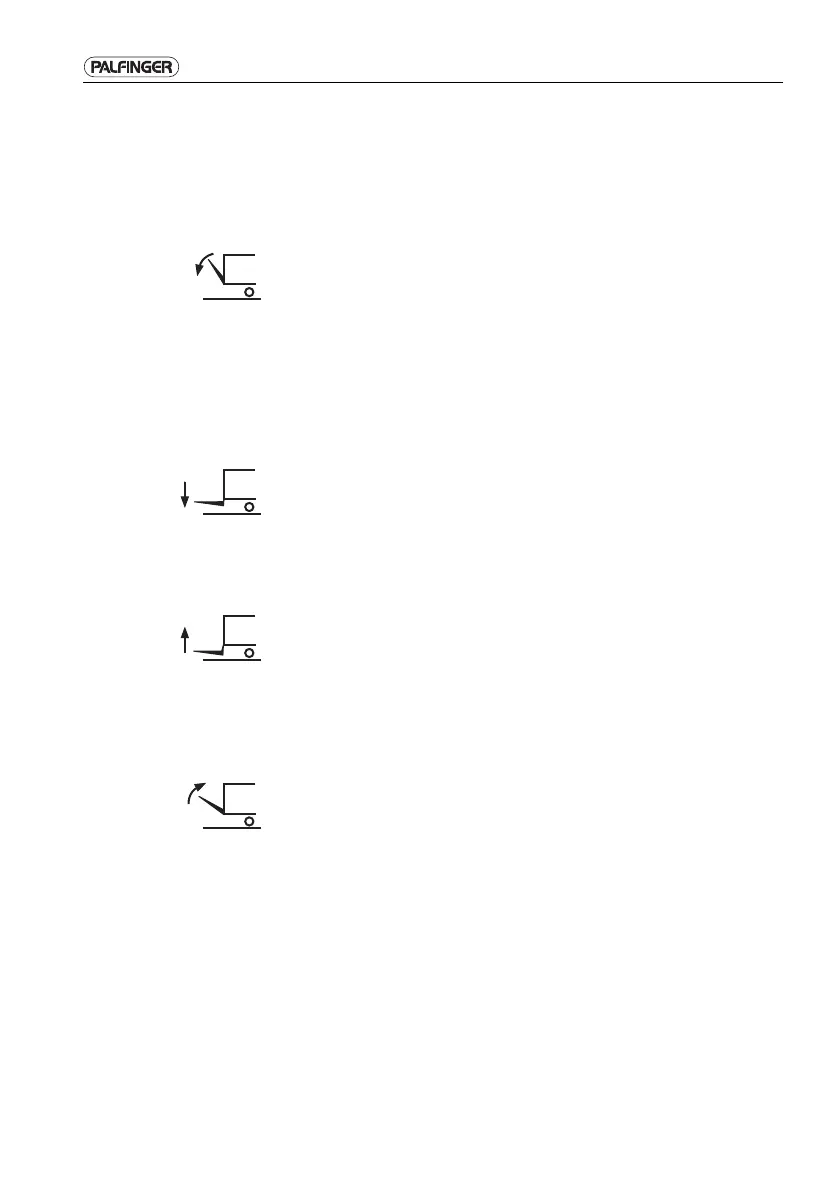

Opening the Platform
Loosen the platform interlock (if present).
Turn the rotary switch (28) downward and hold it in this po-
sition until the platform has reached the horizontal operat-
ing position.
If an optional load safety device is present, the platform is
lowered and then unfolds to the horizontal operating posi-
tion.
Lowering the Platform
Turn the rotary switch (27) upward and hold it in this posi-
tion until the platform is adjusted flush to the ground.
After the platform has touched the ground it tilts and adjusts
to the ground.
Lifting the Platform
Turn the rotary switch (27) upward and hold it in this posi-
tion until the platform has reached the vehicle loading floor
height.
The platform tilts to the horizontal or preset position before
it is lifted.
Closing the Platform
Turn the rotary switch (28) upward and hold it in this posi-
tion until the platform is closed.
If an optional load safety device is present, the platform
closes approximately to 80° and is lowered a small amount.
Finally, it moves to the vertical transport position and is
lifted into the load safety device.
Close the platform interlock (if present).
Retracting the Hydraulic Stabilizer Feet
Turn the rotary switch (30) upward until the stabilizer feet
are completely retracted.
