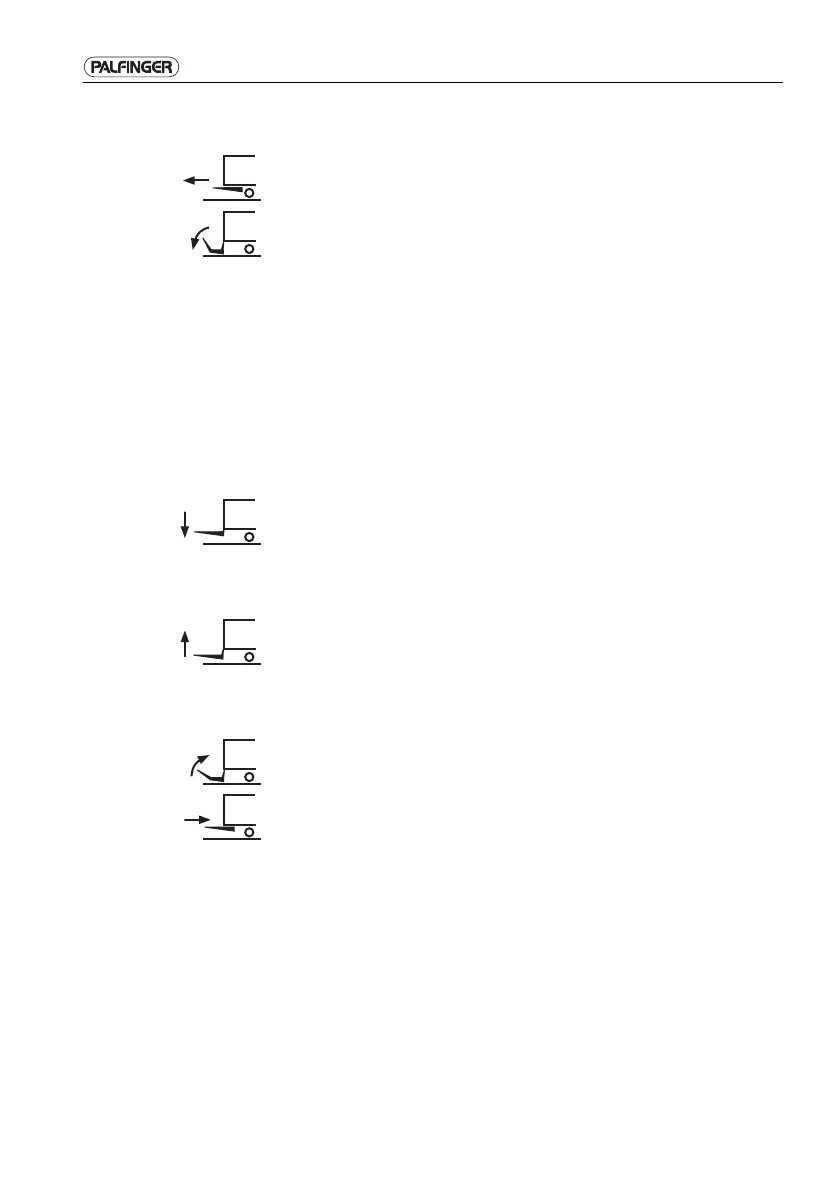

Extending and Folding Out the Platform
Loosen the platform interlock (if present).
Turn the rotary switch (27) downward and hold it in this po-
sition until the platform has been lowered.
The platform is lowered so that it can be extended without
obstruction.
Turn the rotary switch (30) downward and hold it in this po-
sition until the platform is completely extended.
Turn the rotary switch (27) downward and hold it in this po-
sition until the folded platform has touched the ground.
Protect your hands with gloves.
Pull the handle with both hands to unfold the folding part of
the platform.
Lowering the Platform
Turn the rotary switch (27) downward and hold it in this po-
sition until the platform has made contact with the ground
and is adjusted flush to the ground.
Lifting the Platform
Turn the rotary switch (27) upward and hold it in this posi-
tion until the platform has reached the vehicle loading floor
height.
Folding In and Retracting the Platform
Protect your hands with gloves.
Pull the handle with both hands to fold back the folding part
of the platform.
Turn the rotary switch (27) upward and hold it in this posi-
tion until the platform has reached the retraction height.
Turn the rotary switch (30) upward and hold it in this posi-
tion until the platform is completely retracted. Observe that
the platform can be retracted without obstruction.
Turn the rotary switch (27) upward and hold it in this posi-
tion until the platform has reached the vibration safeguard.
Close the platform interlock (if present).
