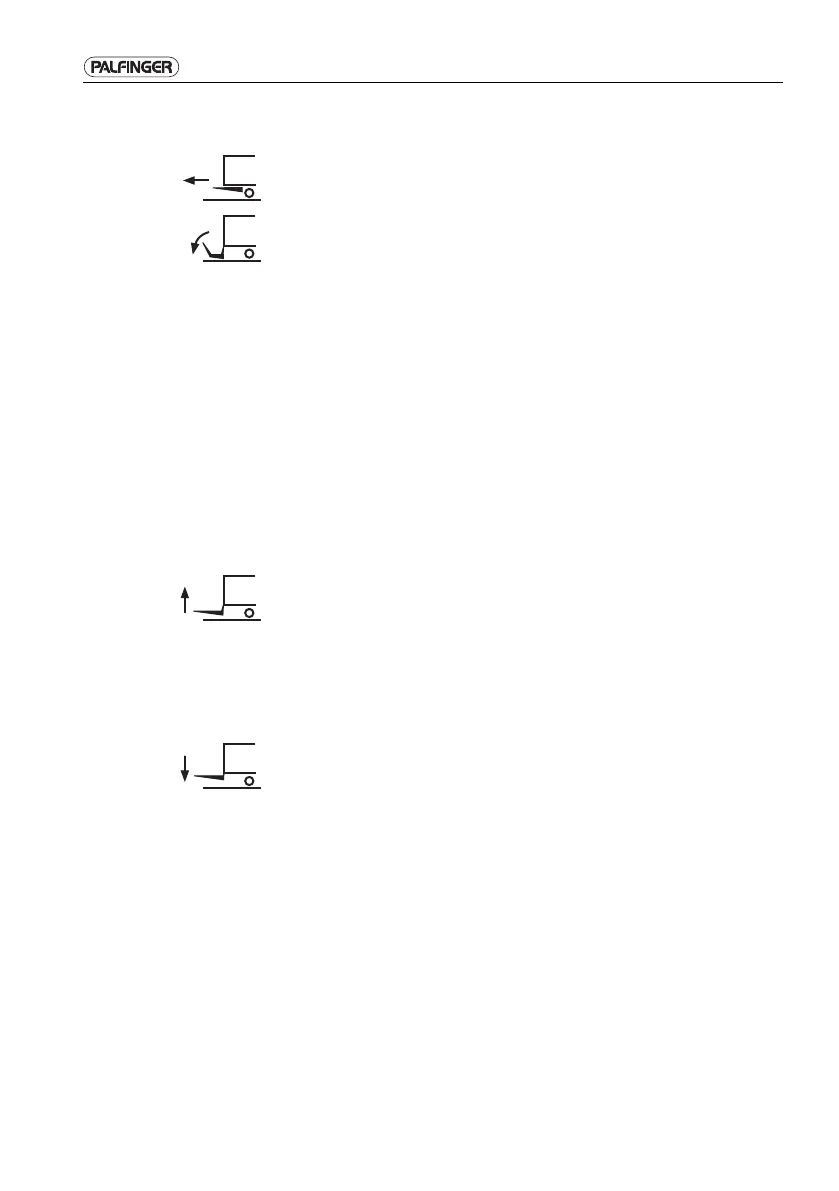

Extending and Folding Out the Platform
Loosen the platform interlock (if present).
Turn the rotary switch (30) downward and hold it in this po-
sition until the platform has reached the vertical position.
The platform is slightly lowered and then extends. Subse-
quently it lowers to the ground and tilts into an approximate
vertical position.
Protect your hands with gloves.
Swivel the platform with both hands forward by
approximately 20°.
Turn the rotary switch (30) downward and hold it in this po-
sition until the platform touches the ground.
The platform lowers to the ground and then unfolds once.
Protect your hands with gloves.
Pull the handle with both hands to unfold the second folding
part of the platform.
Lifting the Platform
Turn the rotary switches (27) and (29) simultaneously up-
ward and hold them in this position until the platform has
reached the vehicle loading floor height.
The platform tilts to the horizontal or preset position before
it is lifted into the loading position.
Lowering the Platform
Turn the rotary switches (27) and (29) simultaneously
downward and hold them in this position until the platform
has made contact with the ground and is adjusted flush to
the ground.
After the platform has touched the ground it tilts and adjusts
to the ground.
