140
Column Lifts

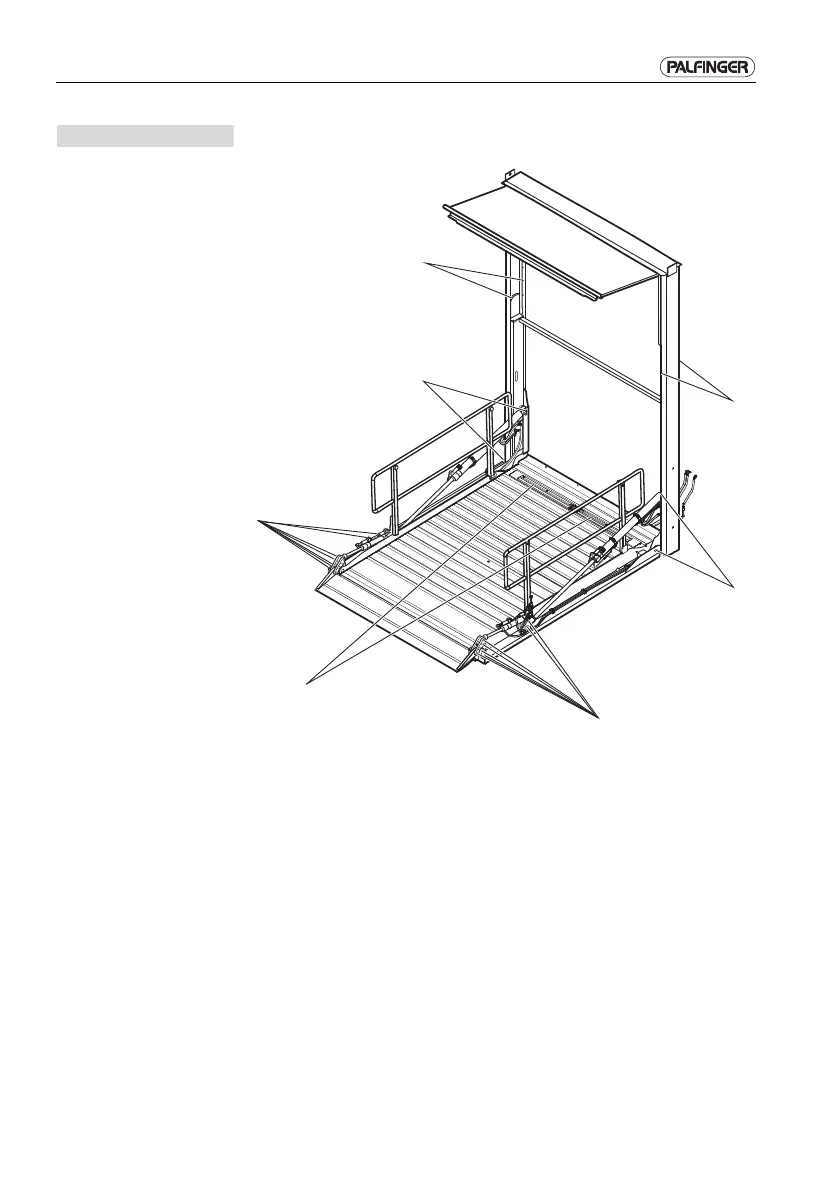

44 conical lubricating head
45 roll-off protection bearings
47 Sliding surface of the slider
To grease and lubricate:
Clean the conical lubricating heads (44).
Use a grease gun to press grease into the conical lubricat-
ing heads (44) until the bearing is filled (see chapter “Lubri-
cants and Operating Media” from p. 188).
Lubricate the bearings of the roll-off protection (45) (see
chapter“Lubricants and Operating Media” from p. 188).
Clean all sliding surfaces (47) of the slider in the guide
frame and lubricate them evenly with heavy duty grease.
45
44
44
47
47
44
44
