Connecting your HD-STB
1. Antenna Connection
HD-STB, TV and VCR antenna connection
Connect IEC-Male antenna cable into HD-STB 'ANT IN' terminal.
Connect VCR 'ANT IN' cable into HD-STB 'LOOP OUT' terminal.
Connect VCR 'LOOP OUT' cable into TV RF IN terminal. (Refer to Fig. 1)
HD-STB and TV antenna connection
Connect IEC-Male antenna cable into HD-STB 'ANT IN' terminal.
Connect HD-STB 'LOOP OUT' cable into TV RF IN terminal. (Refer to Fig. 2)

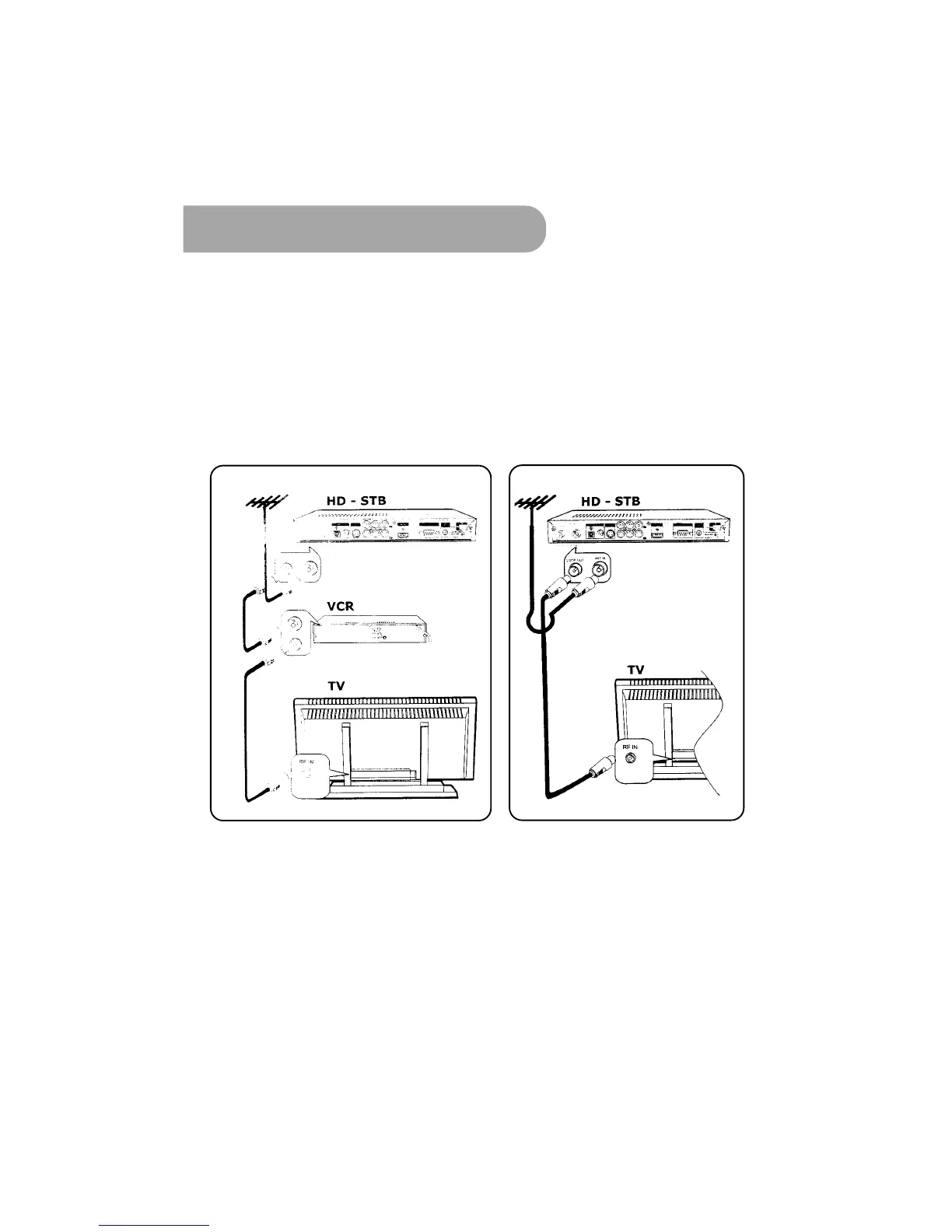

Fig. 1 HD-STB, TV and VCR antenna
connection
Fig. 2 HD-STB and TV antenna
connection
To ensure optimum DTV reception the HD STB must be the first device connected to the antenna
system when daisy chaining RF input / output products such as VCRs, DVD Recorders and analog
television as illustrated in Fig. 1 and 2.
