Connecting your HD-STB
Connecting to a HDTV with HD YPbPr
Connect YPbPr cable between HD-STB and your TV as shown in Figure 5.
HD-STB YPbPr output supports the following 50Hz HD video modes: 1080i, 720p
and 576p SD via YPbPr is not supported.
1) Connect YPbPr Video cable to the HD terminal on the back of HD-STB
2) Connect the other end of the YPbPr cable to the HD YPbPr input terminal on
the HDTV
3) Usually, the Y is Green colour. Pb is Blue colour, and Pr is Red colour
assigned.
4) Setting Up the Display desired resolution.

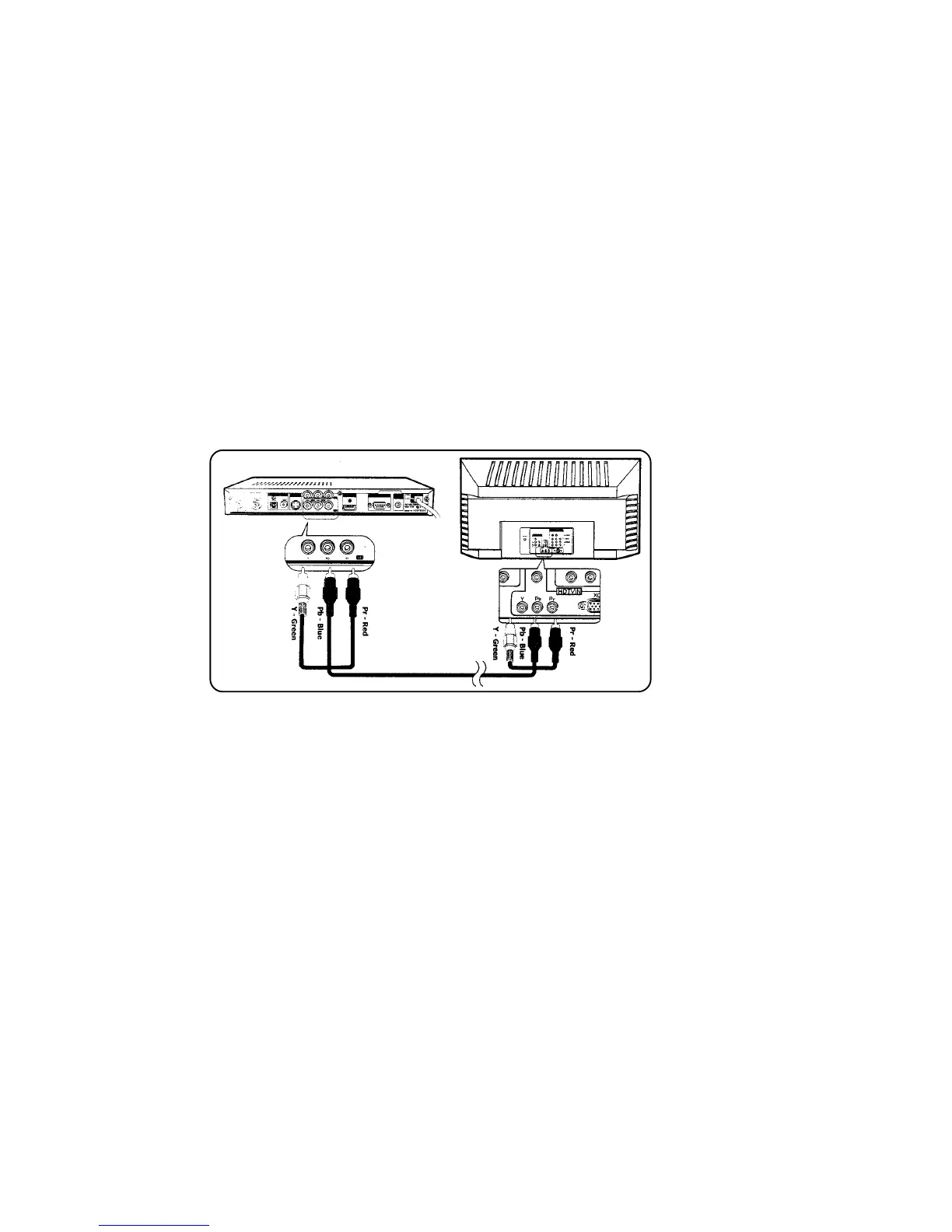

Fig. 5 HD YPbPr Video Connection
