T5 Flare Gas Transducer Installation Guide 15
Chapter 1. Installing Pipe Nozzles
1.3 Tilted 45
°
Installation
This procedure includes the following steps:
• Identifying and checking the nozzle installation kit components
• Selecting and marking the pipe for nozzle locations
• Installing the first welding boss
• Installing the first nozzle
• Installing the second welding boss
• Installing the second nozzle
• Tapping the pipe
1.3.1 Identifying and Checking the Nozzle Installation Kit Components
The
Nozzle Installation Kit
contains the materials listed below. Use
Figure 2
below to help identify each component.
• 2 Nozzles (if purchased)
• 2 Welding bosses
• 1 Jig
• 1 Threaded rod (1” diameter), with washer and nut
IMPORTANT: You will need eight 5/8” studs with two nuts each, or 3/4” studs with two nuts each. The 5/8” studs are
needed for 2”-150#, 2”-300# and 3”-150# flanges. The 3/4” studs are needed for 3”-300# flanges.

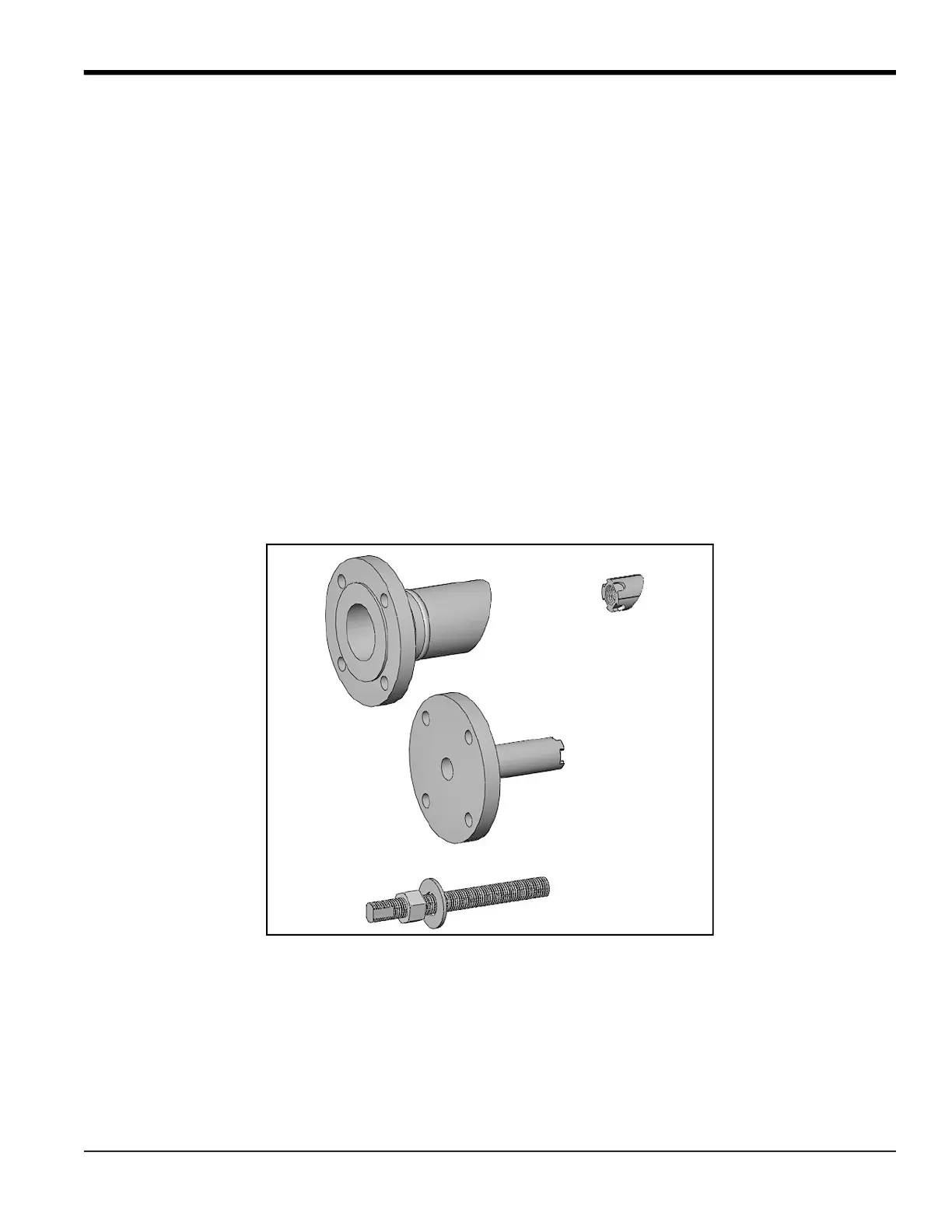

Figure 2: Components for Nozzle Installation Kit
Welding Boss
Threaded Rod
with Washer and Nut
Nozzle
Jig
