Chapter 3. Installing the Transducer Assemblies
36 T5 Flare Gas Transducer Installation Guide

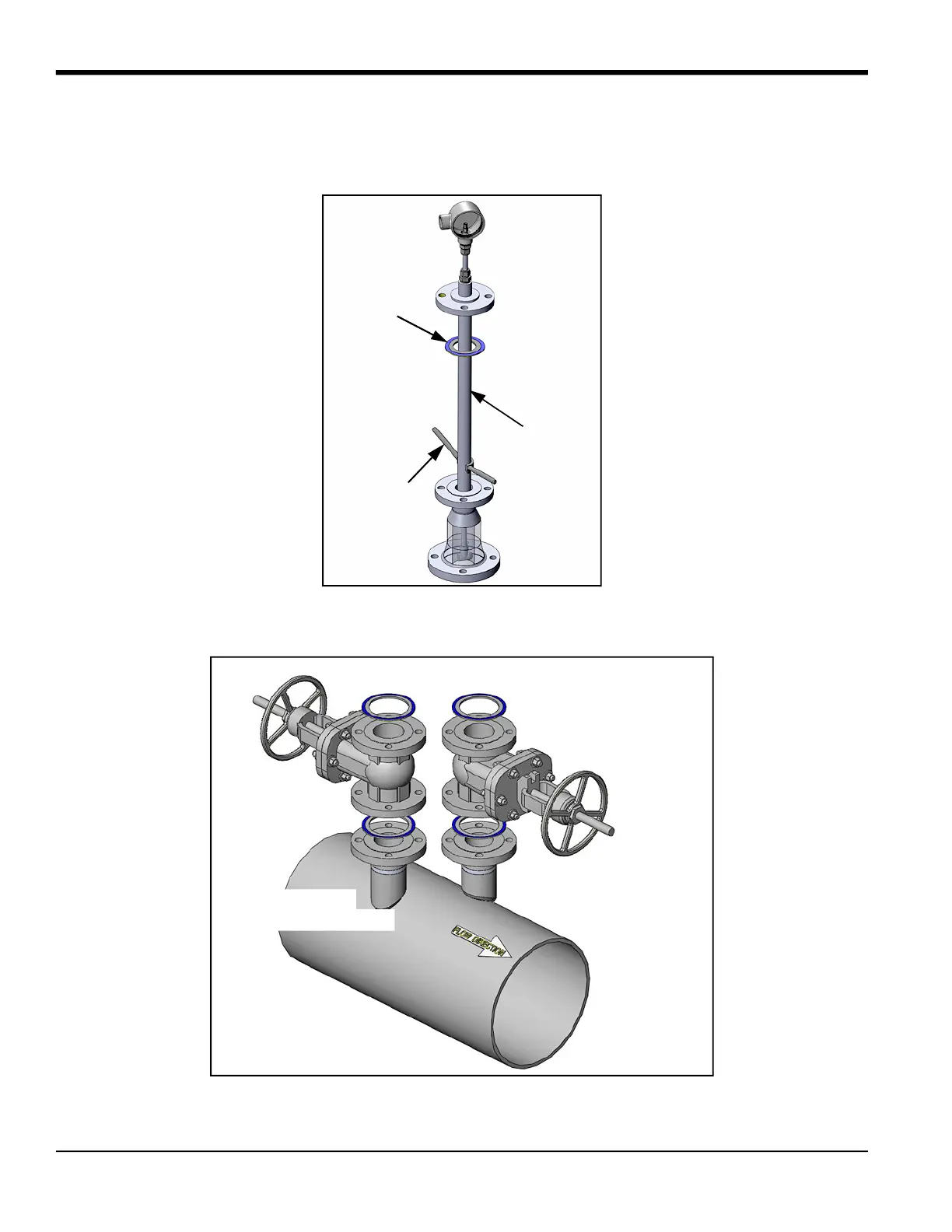

3.3 Mounting the Bias 90 Insertion Mechanism/Transducer Assembly
1. Lift the gasket and insert the packing tool into the packing nut. By turning the packing tool clockwise, tighten the
packing material so that the barrel stays up without support.
2. Verify that the isolation valves are securely installed with gaskets and hardware. Then, place a gasket on the face
of each isolation valve.
Gasket
Barrel
Packing
Tool
Gasket
Gasket
Isolation
Isolation
Downstream
Transducer Location
Upstream
Transducer Location
Flow
Valve
Valve
To Next Page
