Chapter 3. Installing the Transducer Assemblies
52 T5 Flare Gas Transducer Installation Guide
3.8 Inserting the Tilted 45 Transducer into the Pipe
1. Before you open the isolation valve, carefully verify the following:
• The barrel is pulled up as far as it can go
• All bolts are secure
• The transducer head is recessed in the packing gland
2. Open the isolation valve.
WARNING! Follow all applicable safety codes and practices before opening the isolation valve.

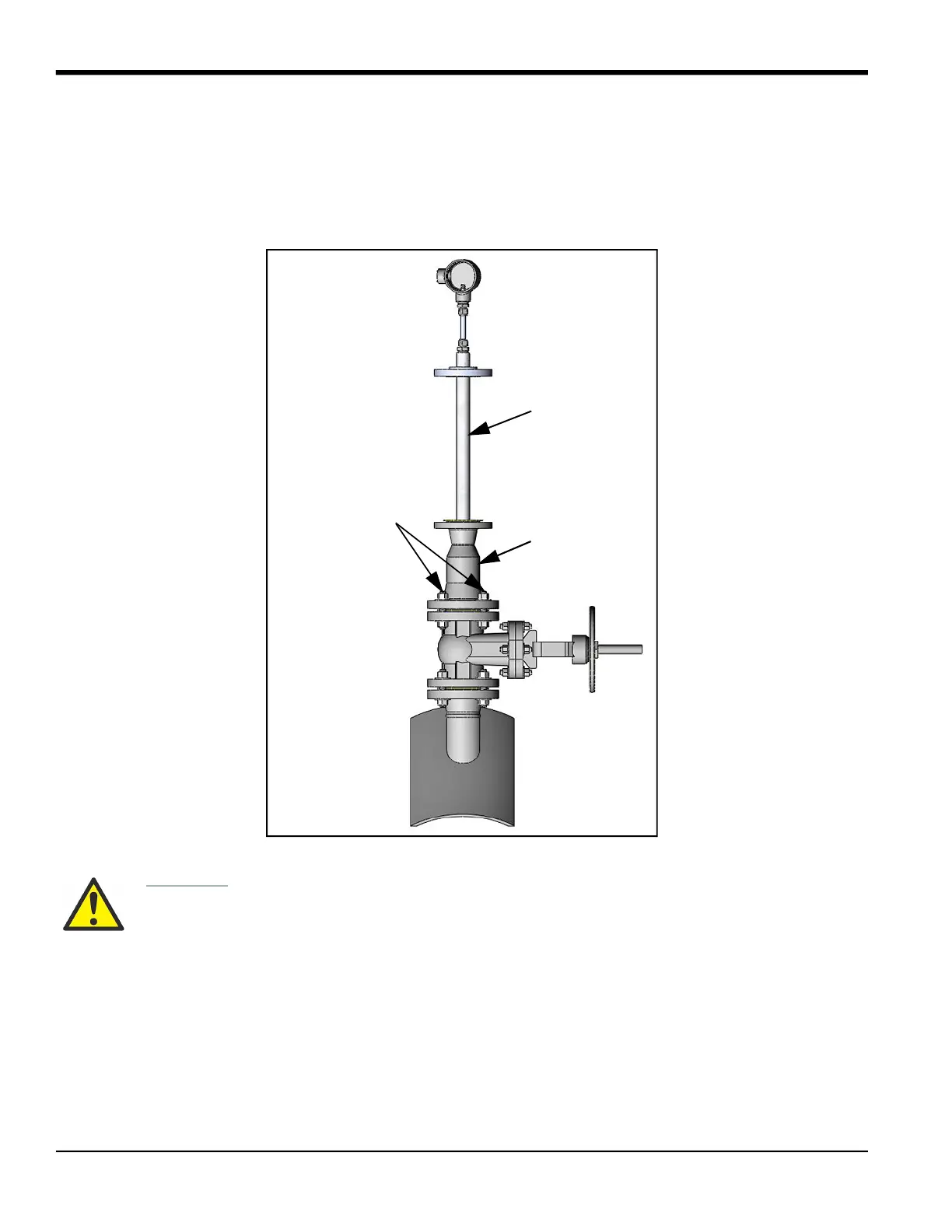

Barrel
Packing
Gland
Bolts
