T5 Flare Gas Transducer Installation Guide 53
Chapter 3. Installing the Transducer Assemblies
3.8 Inserting the Tilted 45 Transducer into the Pipe (cont.)

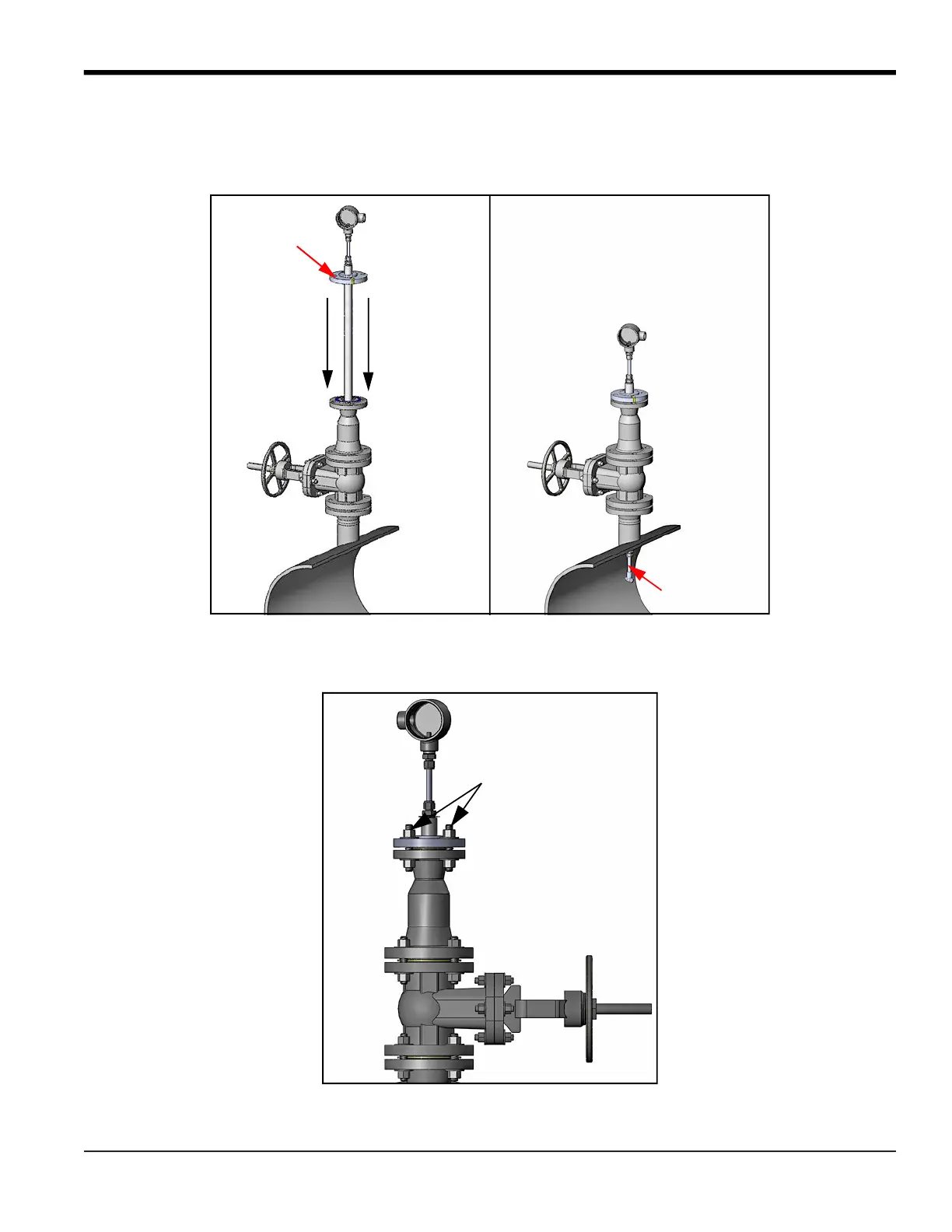

3. Placing your hands on top of the barrel, push the barrel/transducer down into the pipe so that the barrel flange
and the packing gland flange meet. You may have to twist the barrel to get it moving.
4. Place the bolts into the flange joining the barrel flange to the packing gland flange.
5. Tighten the bolts securely.
Place
Hands Here
Transducer
Bolts
To Next Page
