Chapter 3. Installing the Transducer Assemblies
46 T5 Flare Gas Transducer Installation Guide
3.7 Mounting the Tilted 45 Insertion Mechanism/Transducer Assembly

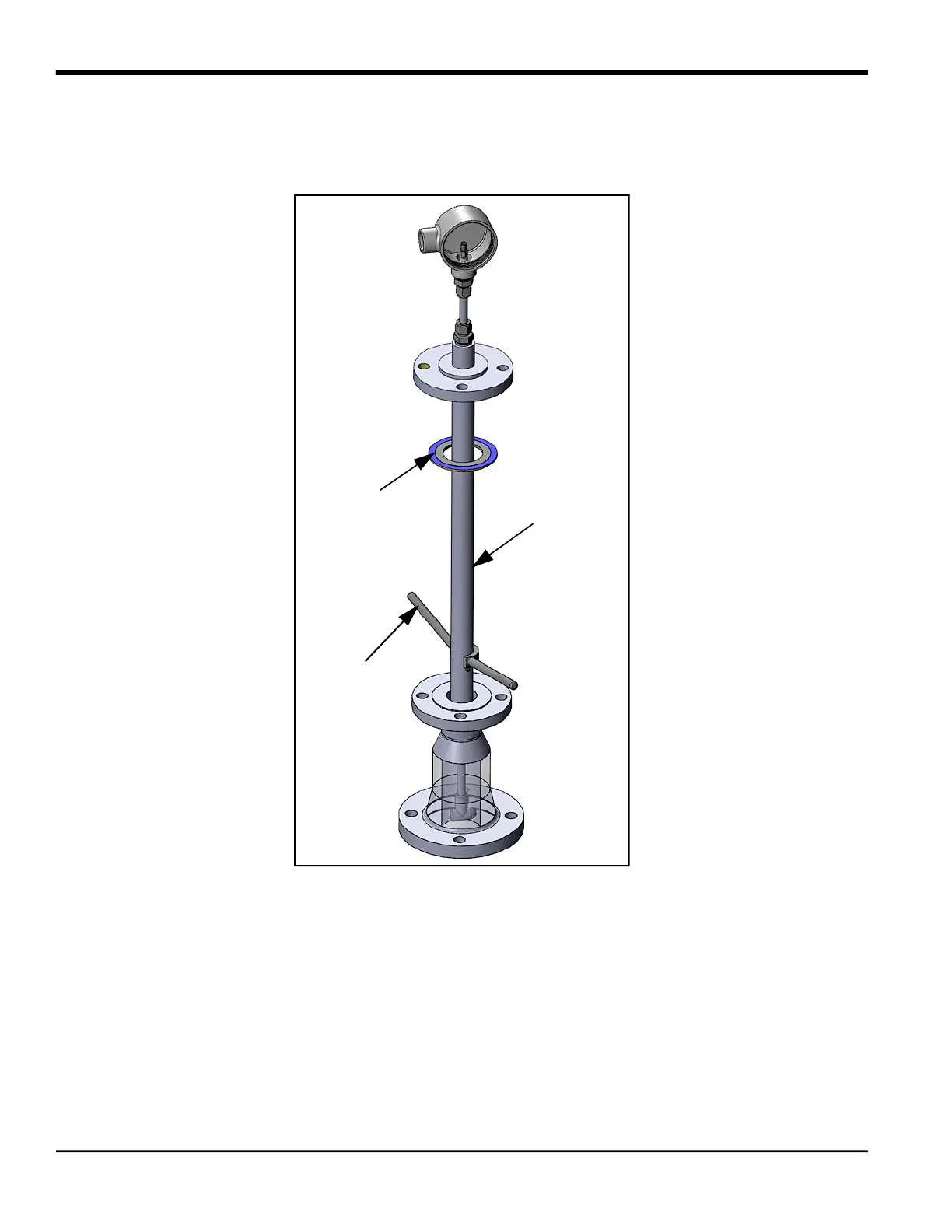

1. Lift the gasket and insert the packing tool into the packing nut. Turning the packing tool clockwise, tighten the
packing material so that the barrel will stay up without support.
Gasket
Barrel
Packing Tool
To Next Page
