Chapter 3. Installing the Transducer Assemblies
58 T5 Flare Gas Transducer Installation Guide
3.9 Connecting an XAMP (cont.)
10. Place the cap of the junction box over the XAMP and tighten the cap until the junction box is firmly closed. Engage
the set screw (see Figure 23 below) to secure the cap in place.

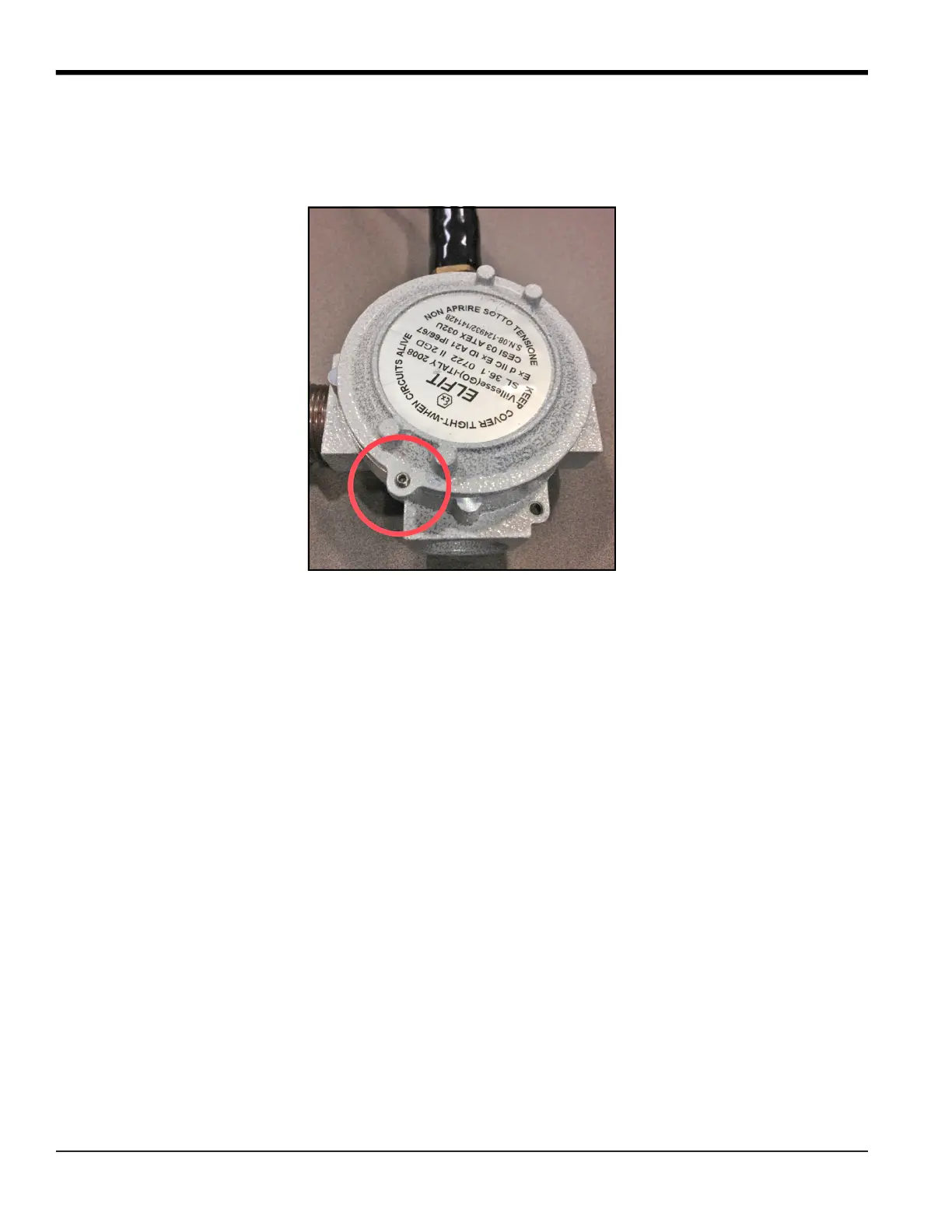

Figure 23: Junction Box Set Screw
Note:
To disconnect or uninstall the XAMP from the assembly, perform the above steps in reverse order.
