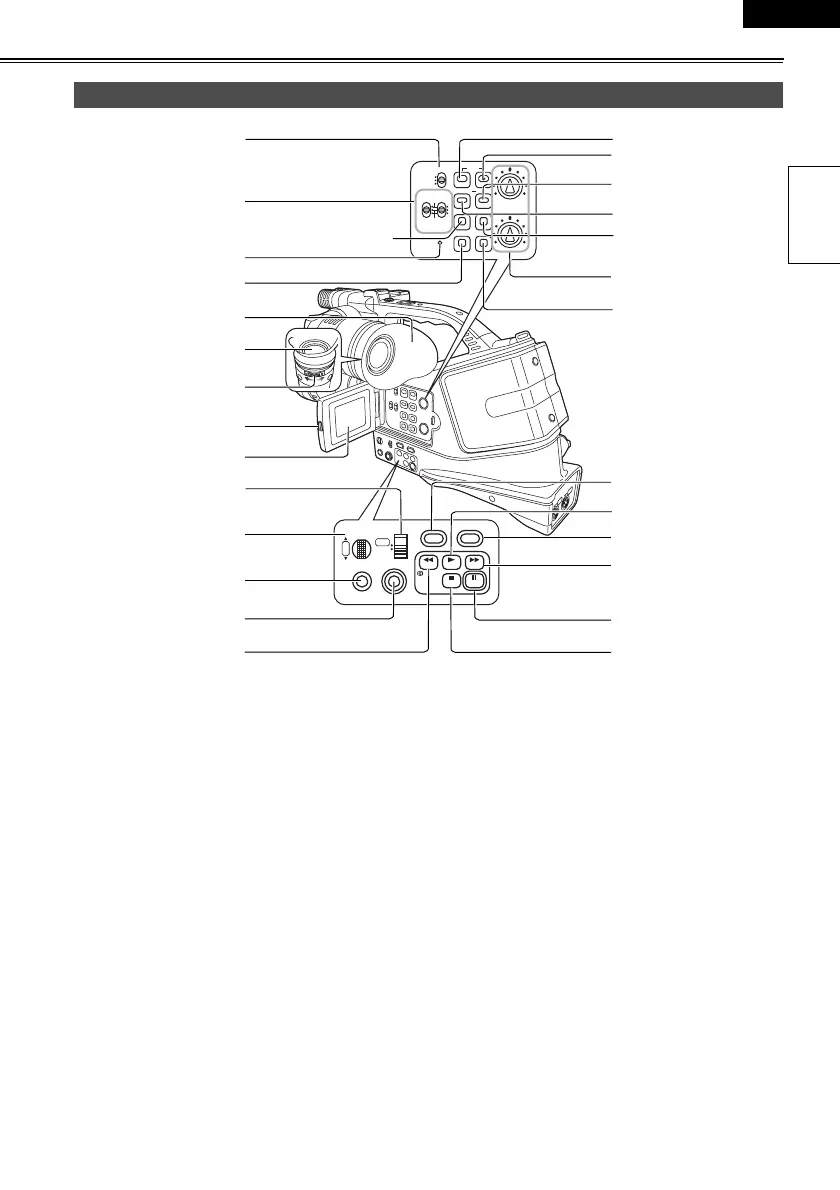

Panasonic AG-DVC60 E - Camera-Recorder Controls Identification

DESCRIPTION
OF PARTS
17 (E)
ENGLISH
Camera-recorder
CH1
CH2
AUDIO LEVEL
REC
MODE CHKSNS
OISZEBRA
RESETCOUNTER
ZOOM SPEED
OFF/M
H
L
AUDIO IN
FRONT
REAR
CH1 CH2
MIC
MIC
LINE
RESET
FOCUS USER 2
SEARCH
MANUAL
MENU
VOL/JOG
SEARCHD.ZOOM
USER 3
STILL
WHITE BAL
AUTO
PUSH
SHUTTER/IRIS
SEARCH (t) button
(P12, 31, 43, 45)
REC sub button (P54, 56)
COUNTER button (P48)
RESET button (counter)
(P77)
MODE CHK button (P61)
SNS (Super Night Shooting system) button (P32)
USER2 button
(P36, 46, 52)
FOCUS button (P37)
WHITE BAL button
(P40, 41)
Multi dial
(P23, 25-29, 38, 39, 42, 44,
46, 62)
MENU button (P23, 25, 27,
29, 42, 62, 64)
D.ZOOM (q) button
(P31, 43, 45)
SEARCH (y) button
(P31, 43, 45)
USER 3 (g) button
(P36, 43, 55, 56)
STILL (h) button
(P43, 45)
OIS (Optical Image Stabi-
lizer) button (P33)
ZEBRA button (P34)
AUTO/MANUAL selector
switch
(P11, 30, 37, 38, 40, 41)
Panel locking button
(P12)
Eye-cup
Viewfinder
(P11, 22)
Diopter adjustment lever
(P22)
ZOOM SPEED select
switch (P31)
AUDIO IN select switch
(P42)
LCD panel (P12, 22, 32)
RESET button (counter)
(P24, 27, 48)
AUDIO LEVEL (CH1/CH2)
adjustment dial (P42)
REC button (P54, 56)
