Panasonic AG-DVC60 E - Description of Parts; Camera-Recorder Parts Identification

16 (E)

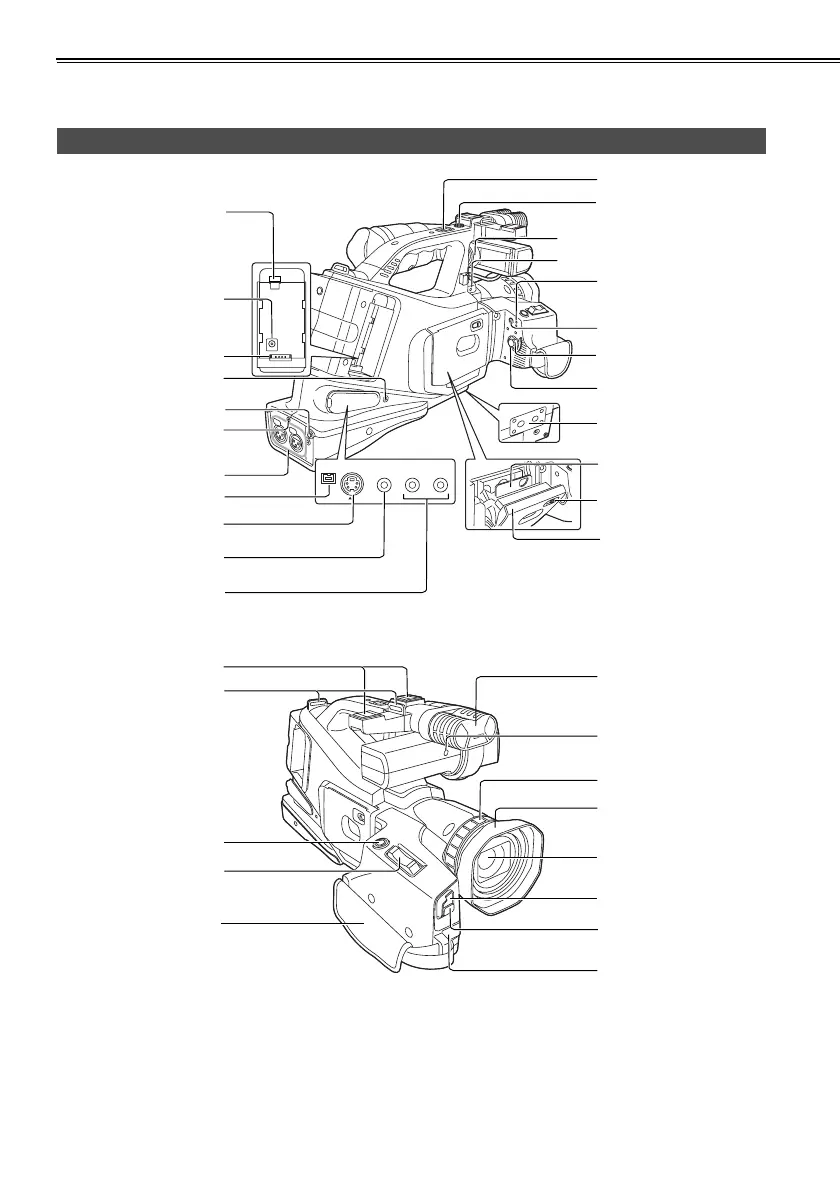

Description of parts
For details, refer to the respective pages.
Camera-recorder
DV
S-VIDEO
IN/OUT
VIDEO
IN/OUT
PUSH
CH1
CH2
AUDIO
IN/OUT
HANDLE ZOOM (P31)
Zoom buttons (P31)
Shoe (P51)
Battery release button
(P21)
START/STOP button
(P11, 13)
DC input (INPUT 7.9 V)
socket (P10, 13)
Shoulder strap eyelet
(P14)
Battery connector
PHONES jack
(P49)
DV connector
(P49)
CAM REMOTE jack
(2.5 mm diameter)
Built-in stereo microphone
START/STOP button
(P31)
OPEN/EJECT lever
(P10, 12)
USER 1 button
(P36, 46, 52)
POWER lamp
(P11)
POWER lever
(P11, 13)
Hand strap (P14)
Cassette holder
(P10, 12)
Cassette cover
(P10, 12)
Tripod mounting hole (P9)
White balance sensor
(P40)
S-VIDEO IN/OUT
connector (P50)
XLR AUDIO IN connector
(P51)
Tally lamp (P77)
Focusing ring
(P31, 37)
Lens hood (P15, 32)
Lens
Infrared light (P32)
Tally lamp (P77)
VIDEO IN/OUT connector
(P50)
AUDIO IN/OUT (CH1/CH2)
connector (P50)
EVF Slide / Lock (P22)
Mode button (P43, 48, 52,
54,-56)
Remote control sensor
EXT MIC connector (P51)
