24
10. Printed Circuit Board
10.1 Indoor Unit

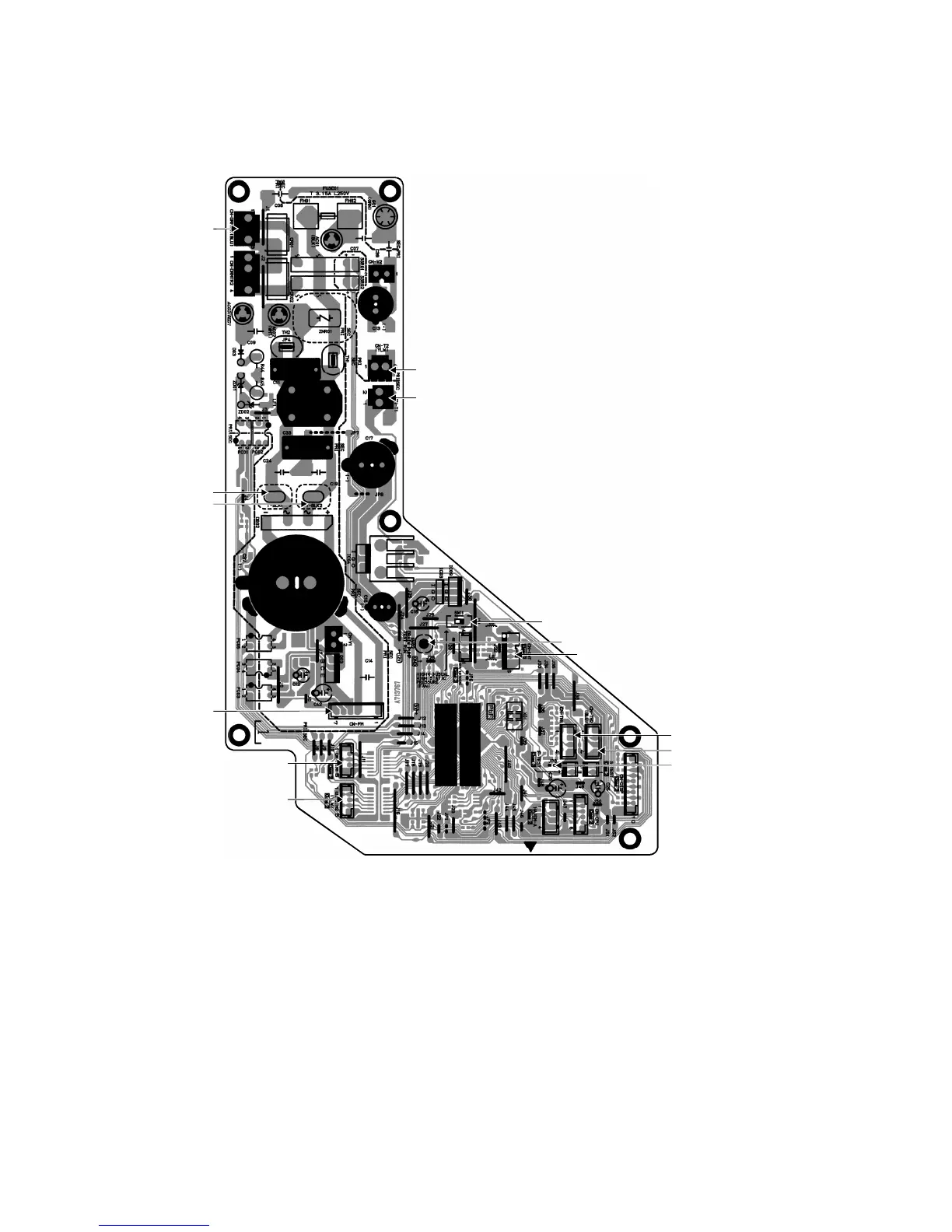

10.1.1 Main Printed Circuit Board
CN-STM2
CN-STM1
CN-FM
T-BLK1
CN-DRMTR1
T-BLK2
CN-T2
CN-T1
CN-CNT
CN-TH2
JP3
(Random Auto Restart
enable/disable)
CN-TH1
SW01
SW02
