Panasonic CS-E12RB4UW Service Manual

85
WARNING
16. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
16.1 Disassembly of Parts

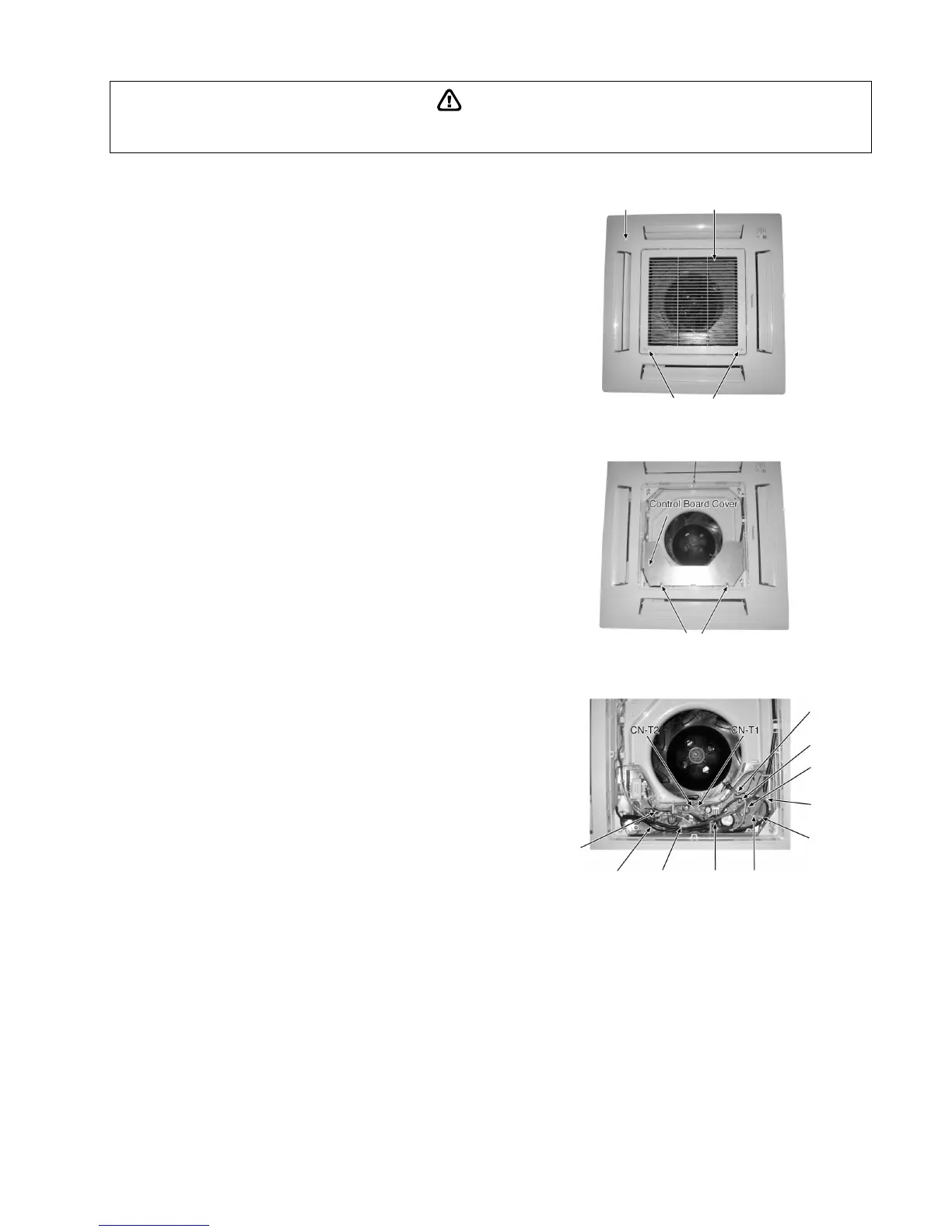

1 Open the Intake Grille from the Front Grille by
moving the catchers to center (Fig.1).
Fig. 1
2 Remove the Control Board Cover by removing
the screws (Fig. 2).
Fig. 2
3 Release the (Fig. 3):
o CN-STM1 (WHT) connector.
o CN-STM2 (YLW) connector.
o CN-DISP (WHT) connector.
o CN-FM (WHT) connector.
o CN-TH1 (WHT) connector.
o CN-TH2 (BLU) connector.
o CN-DRMTR1 (BLU) connector.
o AC01 (BLK), AC02 (WHT) and
CN-DRMTR2 (RED) from Terminal
Board.
o G01 (GRN) screw.
o Two T-BLK connectors.
o CN-T1 (WHT).
o CN-T2 (
YLW).
Fig. 3
Front Grille Intake Grille
Catchers
Screws
CN-TH2
CN-TH1
CN-FM
CN-DISP
CN-STM2
CN-STM1T-BLKCN-DRMTR1G01
A
C01, ACO2,
CN-DRMTR2
