Panasonic CS-E12RB4UW Service Manual

86

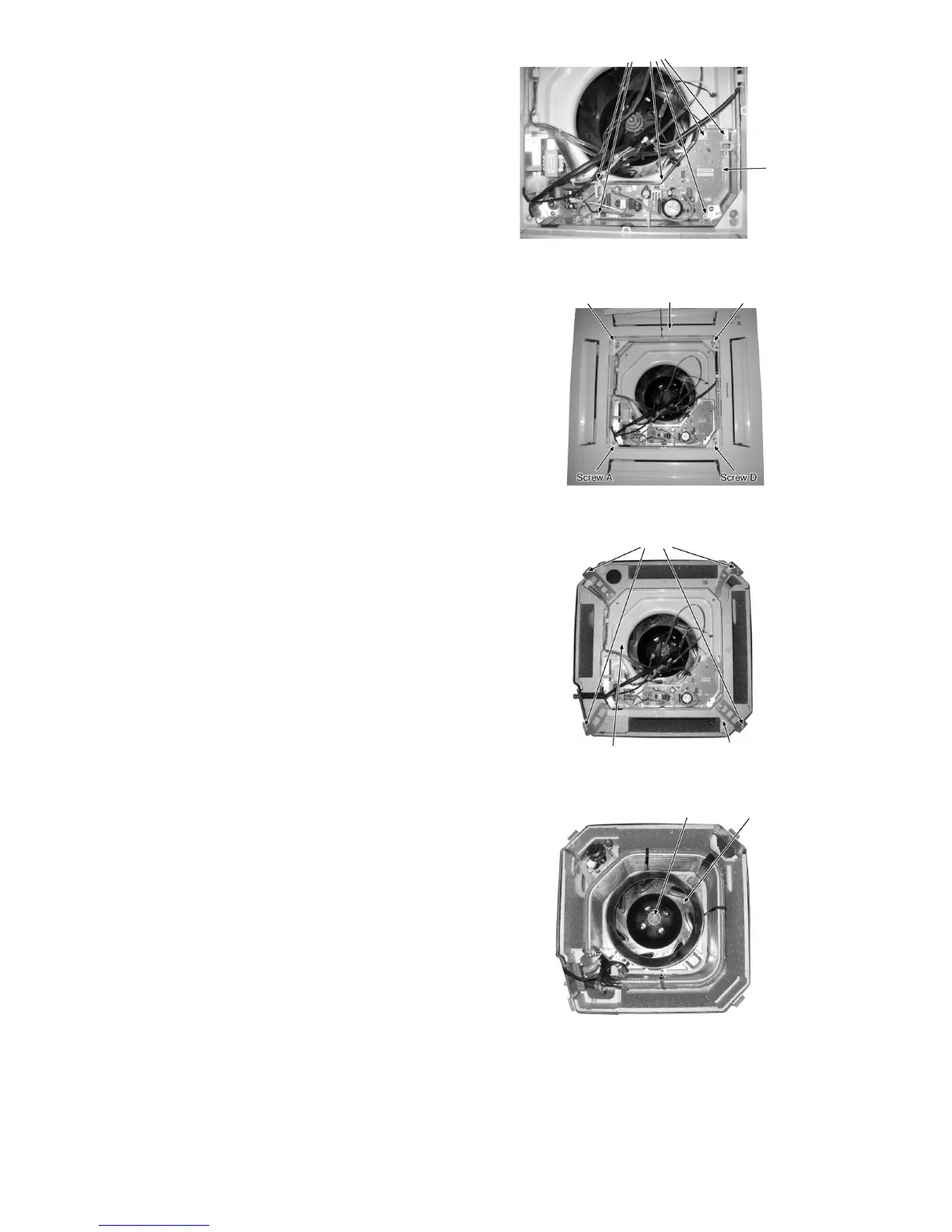

4 To remove the Electronic Controller, release
the 6 hooks that hold it to the Control Board
(Fig. 4).
Fig. 4
5 Remove the Front Grille by removing the
screw A and scr
ews B, C & D half way open
(Fig. 5).
Fig. 5
6 Remove the Air Guider and Drain Pan
complete by removing the screws (Fig. 6).
Fig. 6
7 Remove the Turbo Fan by removing the bolt
(Fig. 7).
Fig. 7
Electroni
c
Controller
Hooks
Screw CScrew B Front Grille
Screws
Drain Pan
Air Guider
Turbo Fan
Bolt
